| Feature
Inspiratory pressure adjustable from 2 to 60 cmH2O, with pressure and flow alarms.

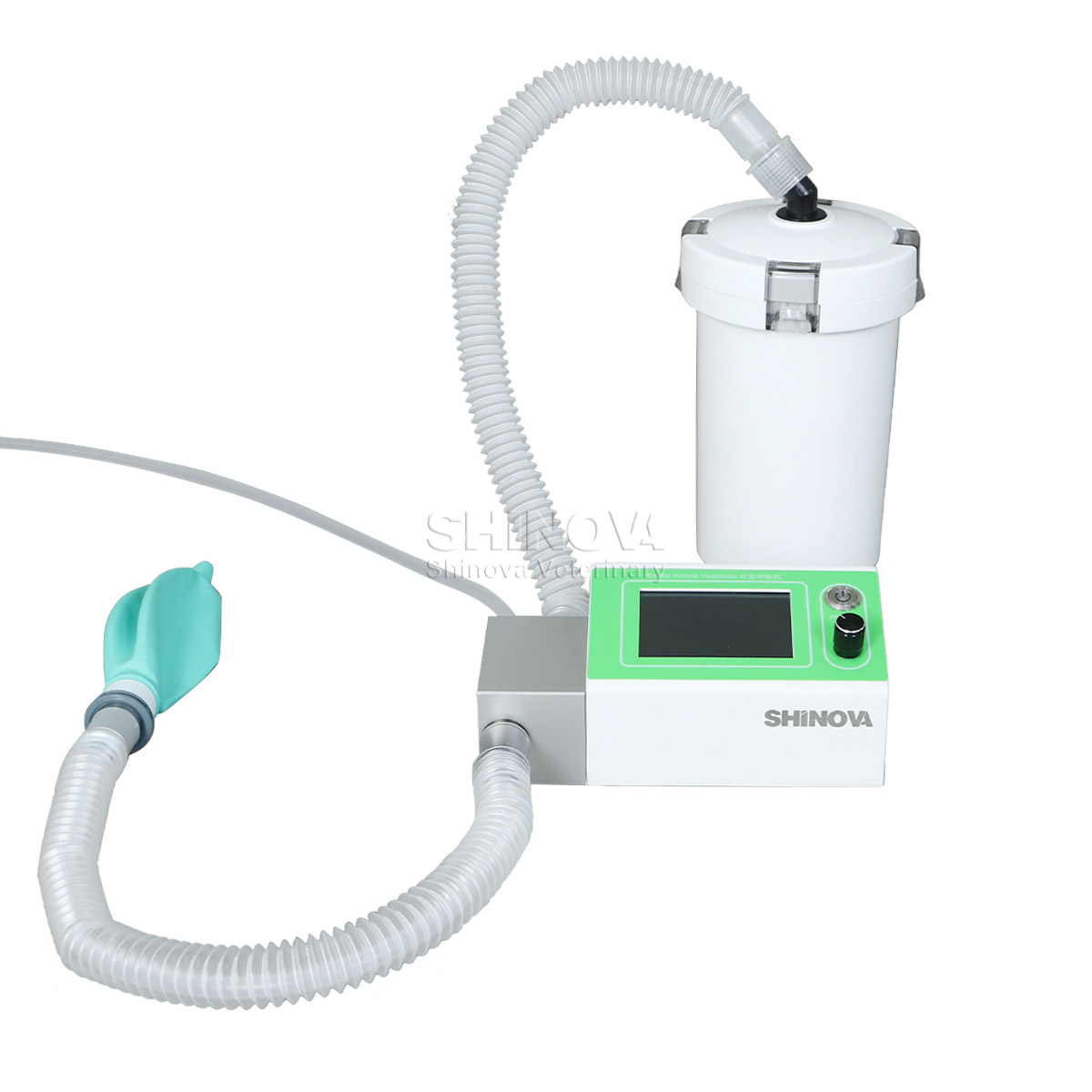

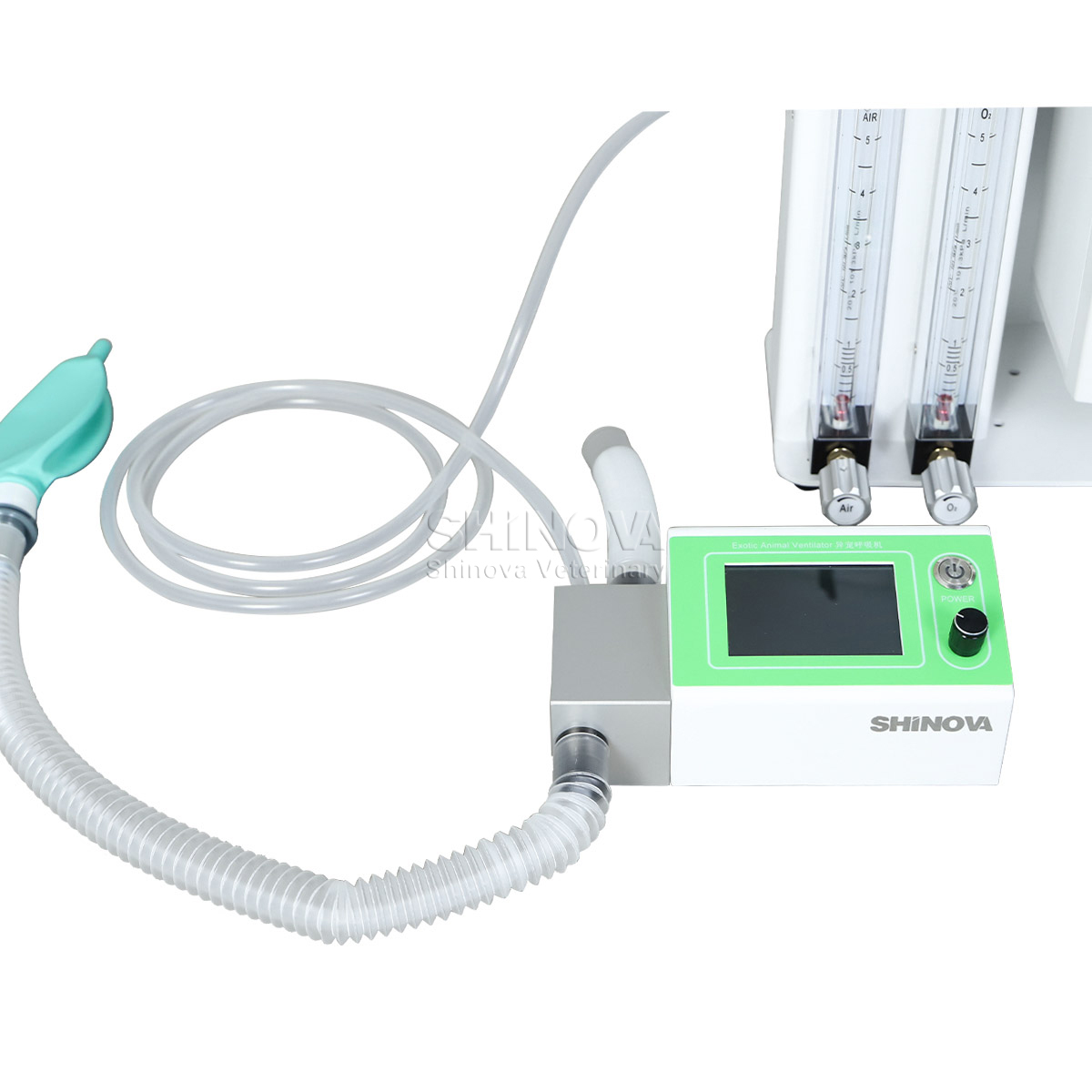

Comes with all necessary connectors and pipes; simply set the inspiratory pressure, BPM, and I:E, and the machine will operate automatically.
Coaxial interface design with minimal dead space and fewer pipes.
Provides comfortable ventilation management and surgical experience for animals.

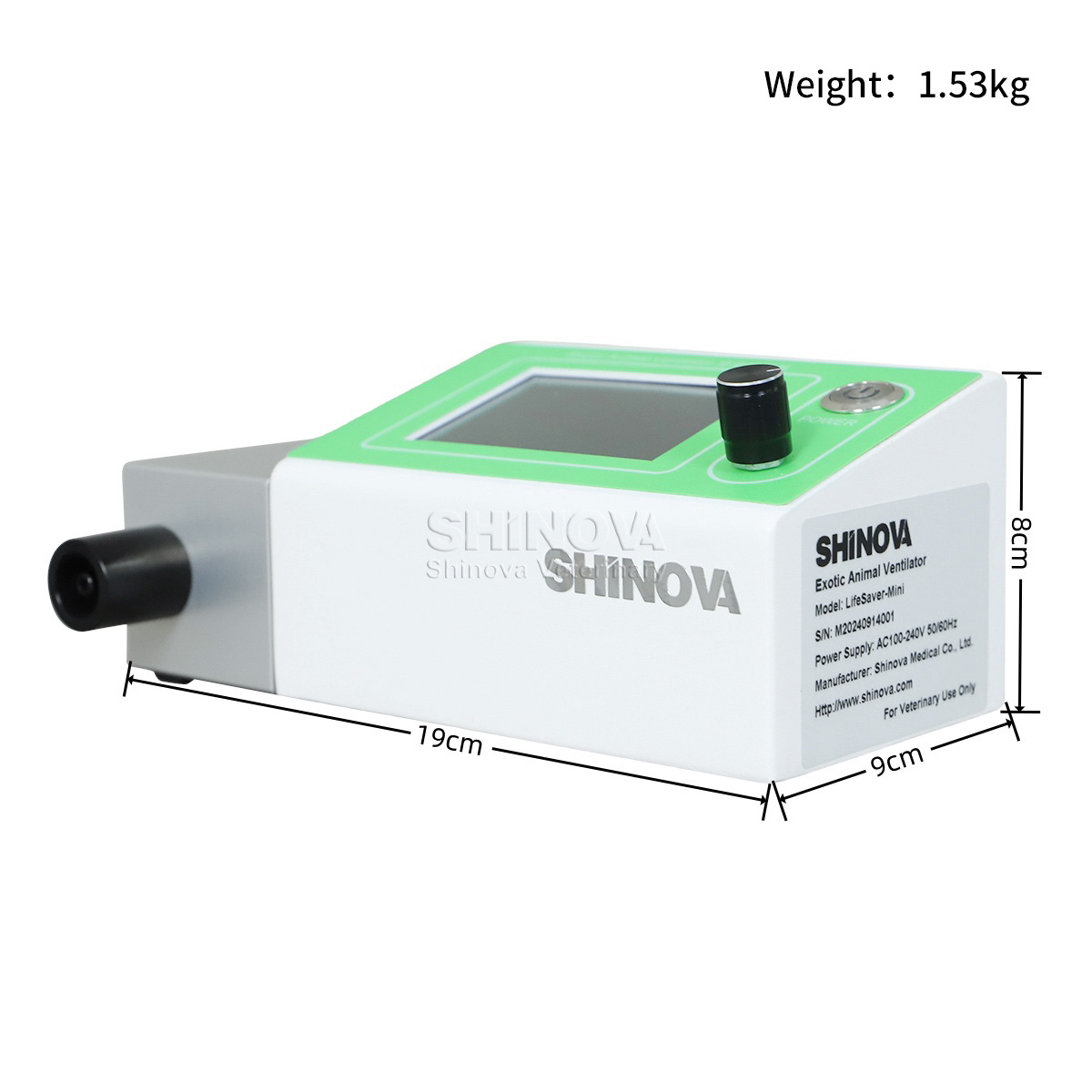

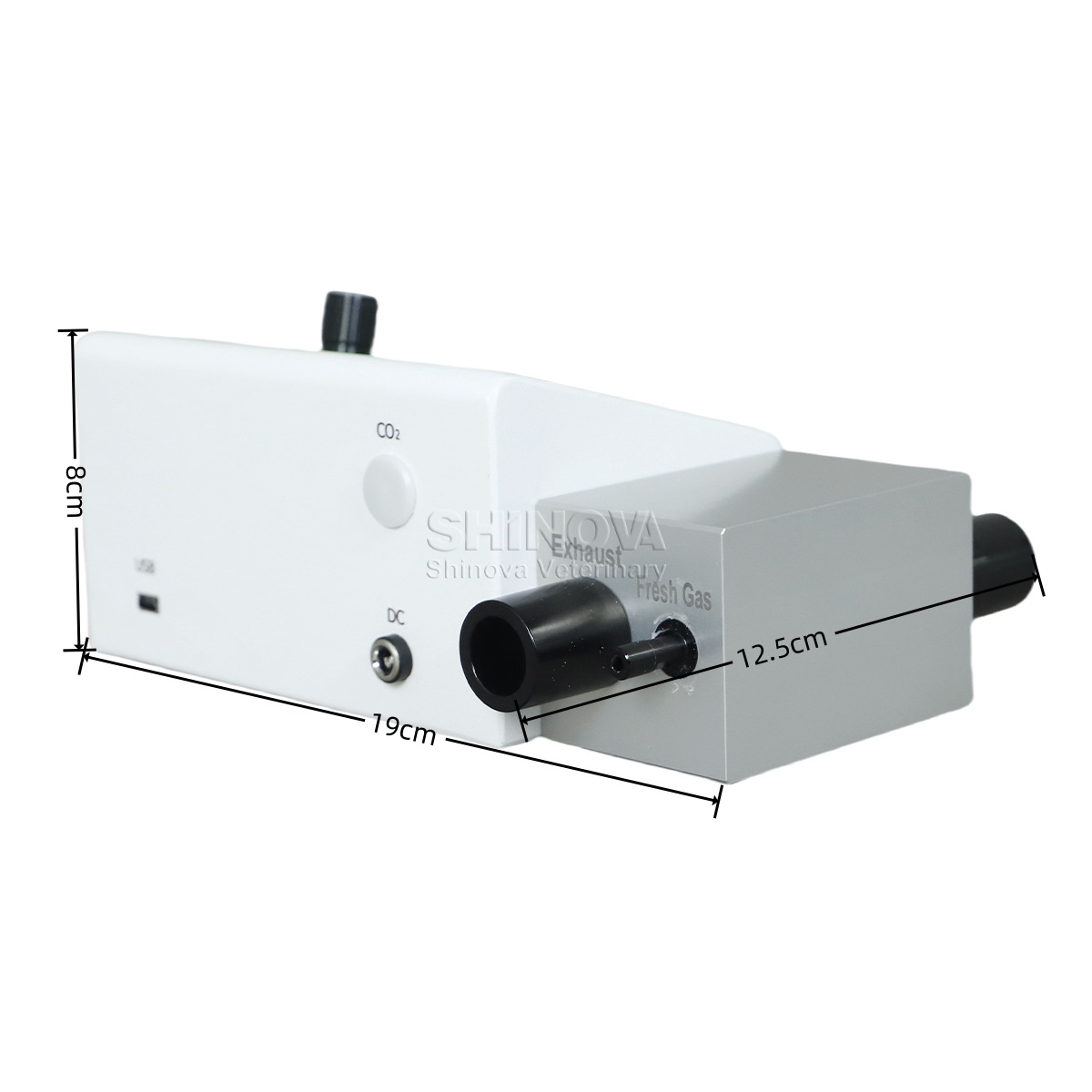

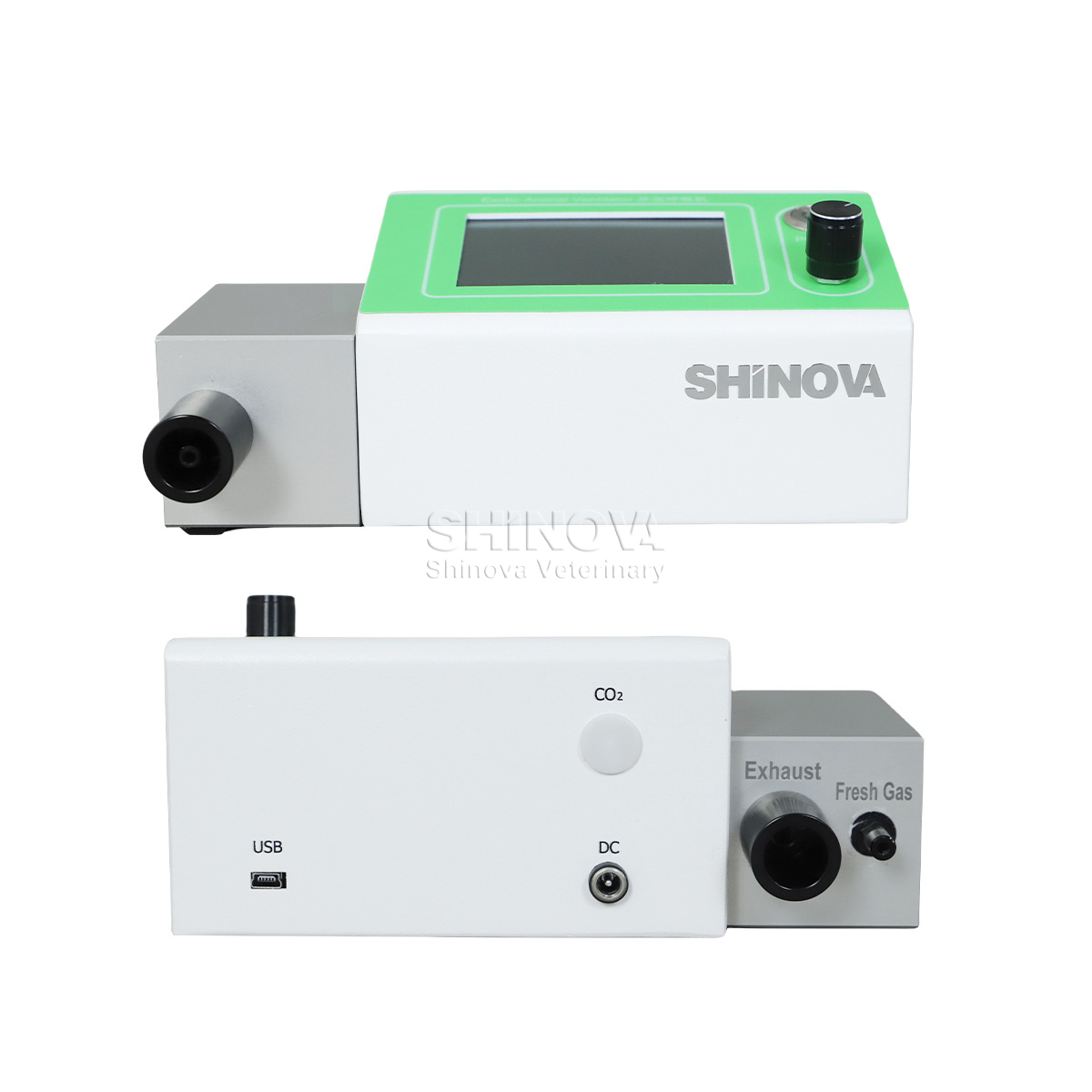

Compact and portable ventilator, measuring 200 mm in length, fits easily on the re-op table for close ventilation, minimizing dead space.

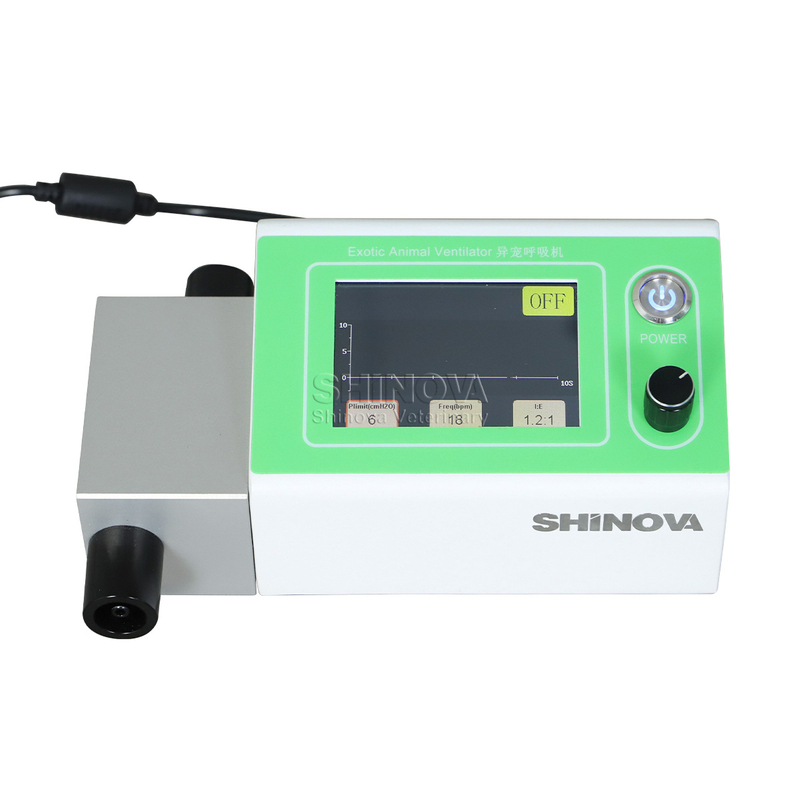

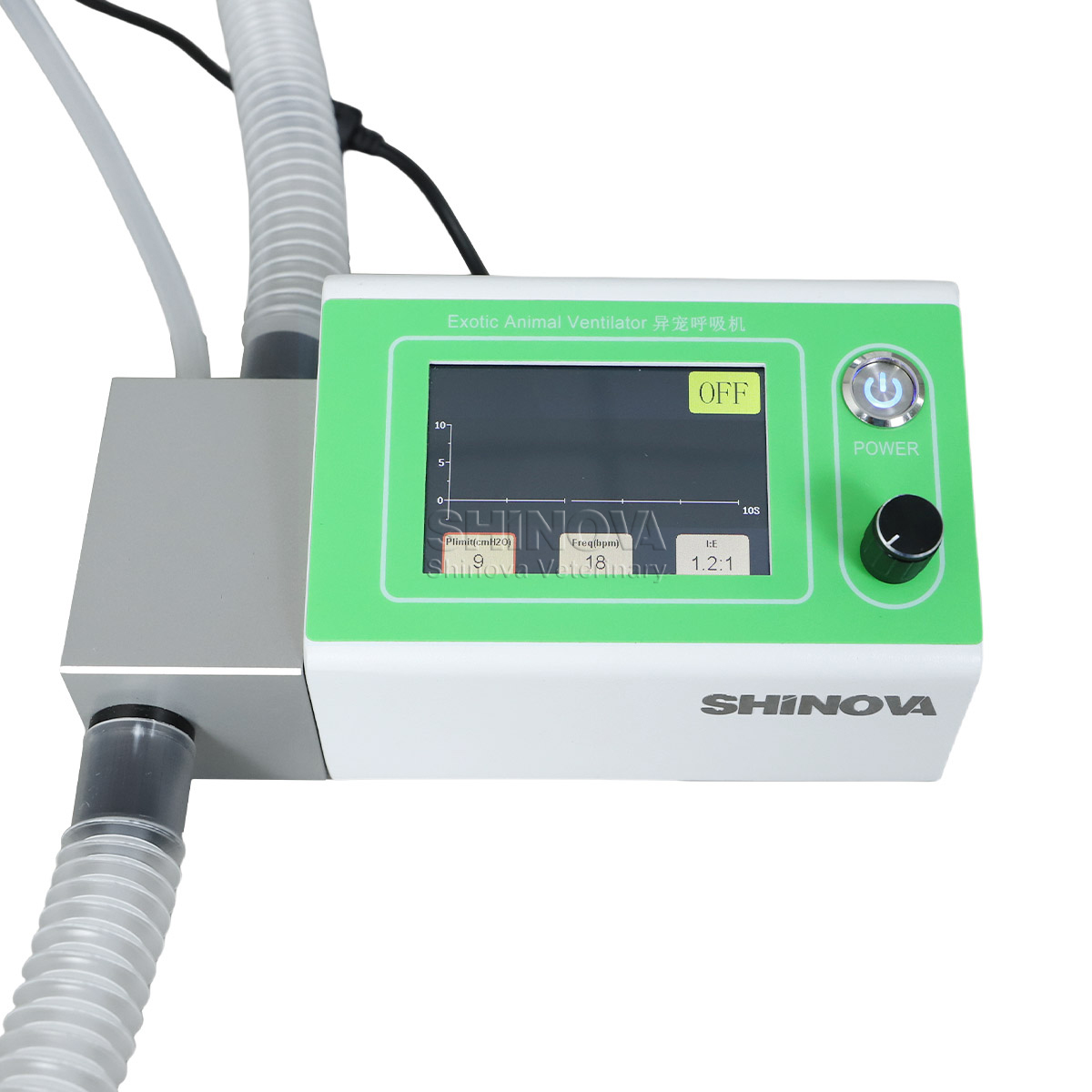

Equipped with a 3.5-inch touch screen that displays the breathing waveform, allowing for clear monitoring of the animal's breathing status.
No calibration needed for the ventilator and anesthesia machine, ensuring long-term accuracy while saving time and costs for hospitals.
| Specifications
Ventilation mode: IPPV
Airway pressure: 2-60cmH2O
Breathing rate: 1-120BPM
1:E: 9.9:1~1:9.9
Alarm: low inlet flow, high inlet flow, high pressure
Screen: 3.5inch, 480 X 320px
Suitable weight for: animal less than 12kg
Weight: 1.55kg
| About Us
SHINOVA, a well-known animal health brand in the world.
SHINOVA, based in Shanghai, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and scientific research institutes.
For decades global operations, Shinova has dedicated itself to providing advanced veterinary techniques and medical solutions to tens of thousands of animal hospitals (including veterinary hospitals and equine hospitals) and veterinary schools (including veterinary teaching and animal experiments) in Europe, America, Australia, China, etc.
