| Features
Suitable for experimental animals such as rats, mice, rabbits, cats, hamsters, guinea pigs, etc.
Coaxial tube gas circuit design saves operating space and is easy to use.
The internal serpentine pipeline design ensures stable gas output, unaffected by pressure changes, for clinical applications.
Oxygen or air can be selected as the gas supply source.
Equipped with an accurate oxygen flow meter, with a controllable flow range of 0-500 ml/min.
The anesthesia vaporizer provides stable output, excellent airtightness, safety, and reliability, unaffected by flow, temperature, flow rate, or pressure variations.
The vaporizer features automatic flow and temperature compensation, with accuracy not lower than 0.5%, and maintains temperature in the range of 15-35°C, reducing dosing frequency and increasing convenience.
Anti-accidental opening lock and closed-state safety protection structures ensure safety.

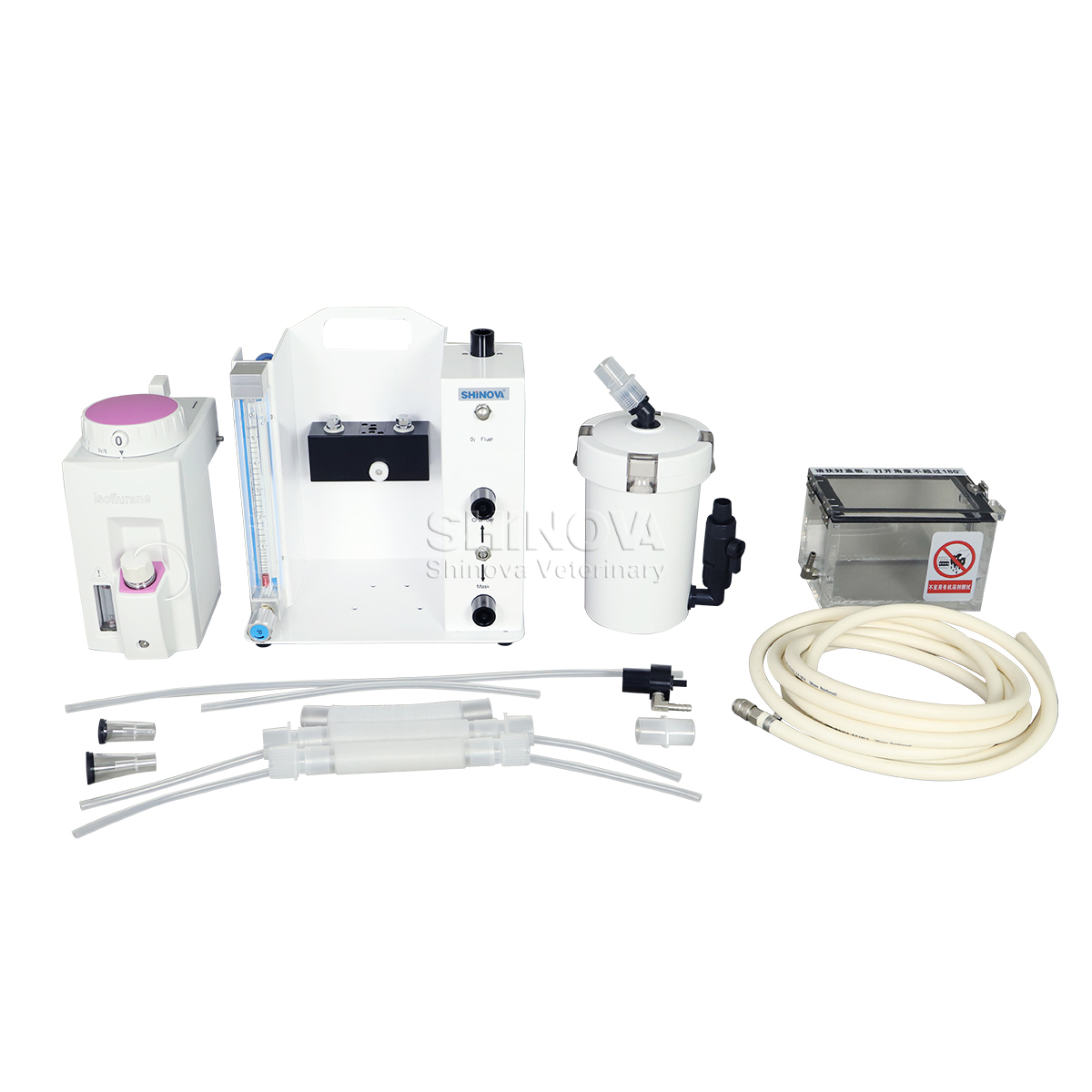

Various types and sizes of animals can be accommodated with different specifications and accessories (such as induction boxes, anesthesia masks, etc.) based on experimental requirements.

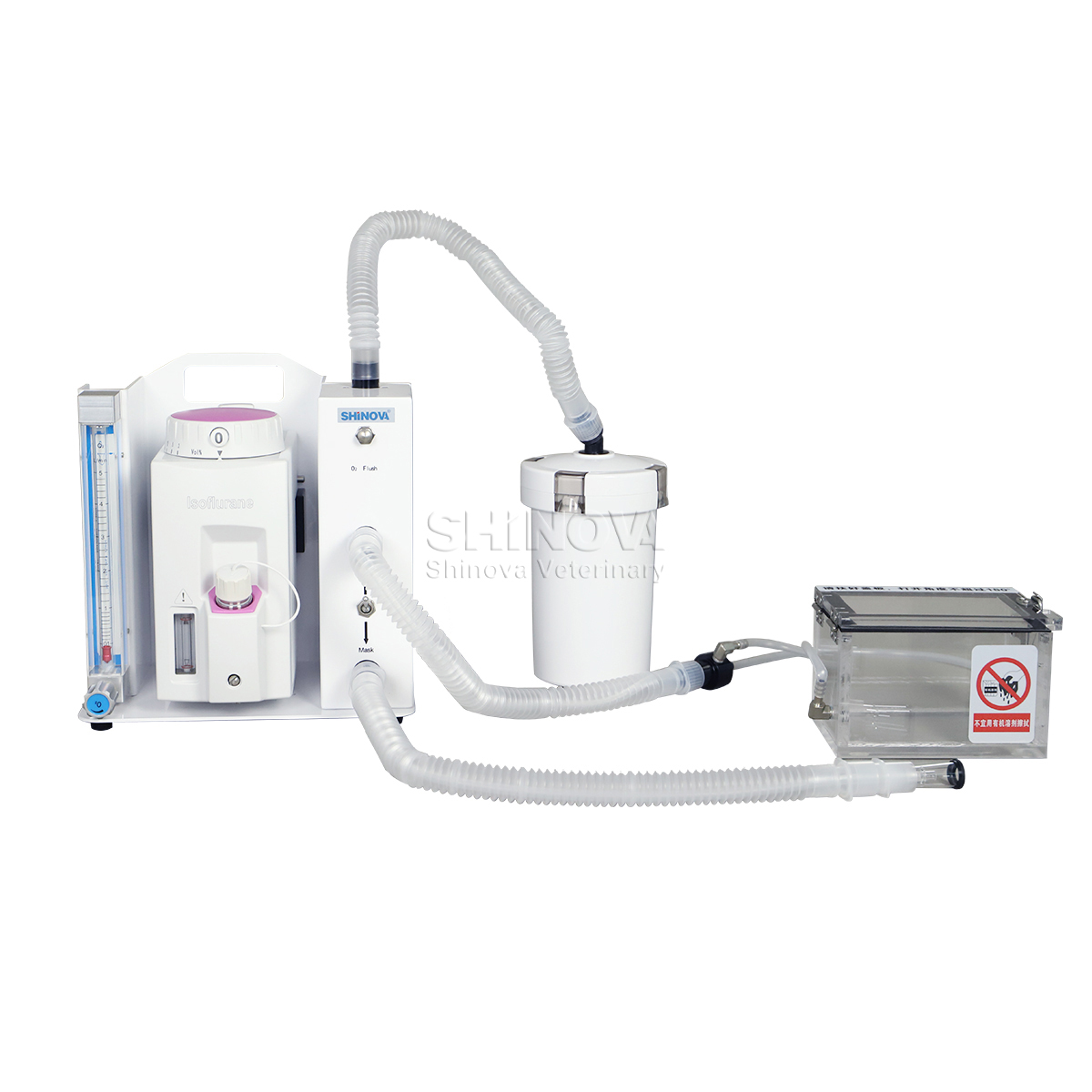

Equipped with an exhaust gas recovery system to maintain a clean laboratory environment.
One-key gas path switch for time and effort savings.
Includes fast oxygen function to ensure animals receive oxygen.
Can be upgraded to a mobile or wall-mounted anesthesia machine.
| Specifications
Gas source supply flow rate | 0.2~15L/min, If the concentration is greater than 4%, 0.2~8L/min | |
Gas source supply quality requirements | medical pure oxygen and air mixture, or O2 and N2O mixture oxygen and air | |
Channel | 1 | |
Control concentration range | sevoflurane: 0.2-8%or Isoflurane: 0.2~5%(v/v) | |
Control knob control value | sevoflurane: 0-0.2-0.5-1.0-1.5-2.0-2.5-3.0-3.5-4.0 -4.5-5.0-5.5-6-6.5-7-7.5-8 %(v/v) isoflurane: 0-0.2-0.5-1.0-1.5-2.0-2.5-3.0-3.5-4.0- 4.5-5.0%(v/v) | |
Concentration control accuracy |
±5%of full scale or±15%of set value | |
Anesthetic dose | the total volume of the dry wick is about 300mL, the visible liquid level is about 250mL between the minimum and maximum scale. | |
Consumption of anesthetic | about 3×supply gas flow (L/min)×set concentration value(%(v/v)), when the isoflurane concentration is 2% and the gas flow rate is adjusted to 600mL/min, a 100mL bottle of isoflurane can be used for approximately 28-30 hours. | |
Loss of anesthetic | 22℃, 0 graduation, less than 0.5mL/24h. | |
Maximum pressure load | 20kPa | |
Maximum use tilt angle | 30° | |
Material | mainly aluminum | |
Working conditions | temperature: 5~40℃ | atmospheric pressure: 700~1060hPa |
Storage conditions | temperature: -40~55℃ | atmospheric pressure: 500～1060hPa |
| Video Show
SHINOVA, a well-known animal health brand in the world.
SHINOVA, based in Shanghai, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and scientific research institutes.
For decades global operations, Shinova has dedicated itself to providing advanced veterinary techniques and medical solutions to tens of thousands of animal hospitals (including veterinary hospitals and equine hospitals) and veterinary schools (including veterinary teaching and animal experiments) in Europe, America, Australia, China, etc.
