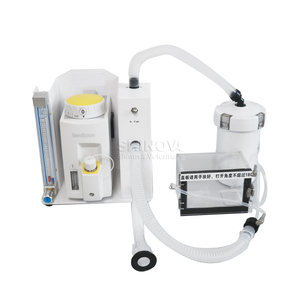

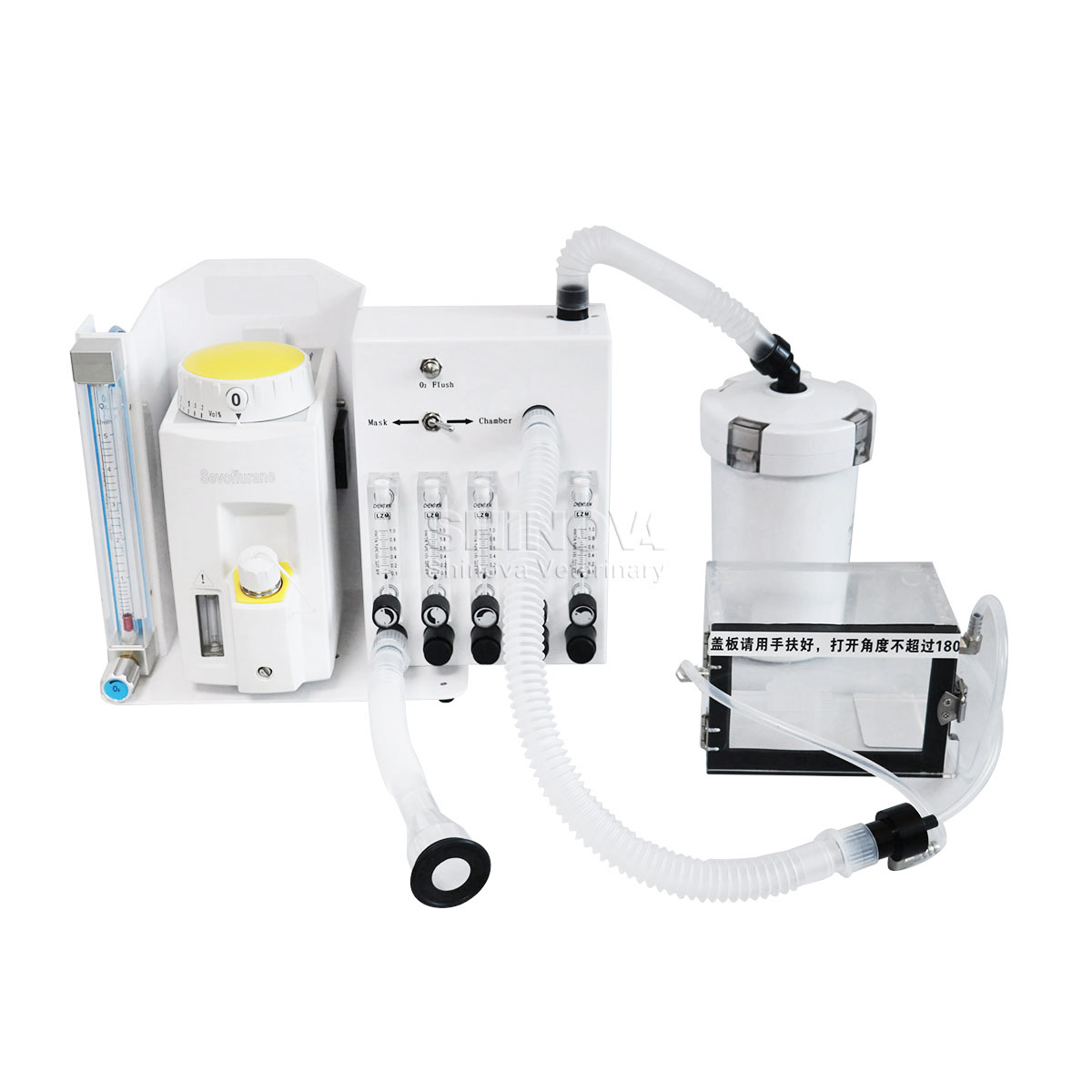

| Features
Suitable for experimental animals such as rats, mice, rabbits, cats, hamsters, guinea pigs, etc.
Coaxial tube gas circuit design saves operating space and is easy to operate.
The internal serpentine pipeline design for clinical application ensures that the gas output is not affected by pressure changes.
Oxygen or air can be selected as the gas supply source.
Provides an accurate oxygen flow meter; flow controllable range is 0-500 ml/min.
The anesthesia vaporizer has stable output, good airtightness, safety, and reliability, and is not affected by changes in flow, temperature, flow rate, or pressure.
The vaporizer has automatic flow and temperature compensation, with accuracy not lower than 0.5%, and the temperature is maintained in the range of 15-35°C, which reduces the number of dosing and makes it more convenient to use.
Anti-accidental opening lock structure and closed-state safety protection structure ensure safety.
According to experimental requirements, different types and sizes of animals can choose various specifications and accessories (such as induction boxes, anesthesia masks, etc.).
Equipped with multi-channel functionality, it can meet the anesthesia induction and maintenance requirements for 5 animals simultaneously.
With an exhaust gas recovery system to ensure a clean laboratory environment.
One-key gas path switch for time and effort savings.
Includes a fast oxygen function to ensure that animals inhale oxygen.
Can be upgraded to a mobile or wall-mounted anesthesia machine.
| Specifications
Gas source supply flow rate | 0.2~15L/min, If the concentration is greater than 4%, 0.2~8L/min | |
Gas source supply quality requirements | medical pure oxygen and air mixture, or O2 and N2O mixture oxygen and air | |
Channel | 1-5 as required | |
Control concentration range | sevoflurane: 0.2-8%or Isoflurane: 0.2~5%(v/v) | |
Control knob control value | sevoflurane: 0-0.2-0.5-1.0-1.5-2.0-2.5-3.0-3.5-4.0 -4.5-5.0-5.5-6-6.5-7-7.5-8 %(v/v) isoflurane: 0-0.2-0.5-1.0-1.5-2.0-2.5-3.0-3.5-4.0- 4.5-5.0%(v/v) | |
Concentration control accuracy |
±5%of full scale or±15%of set value | |
Anesthetic dose | the total volume of the dry wick is about 300mL, the visible liquid level is about 250mL between the minimum and maximum scale. | |
Consumption of anesthetic | about 3×supply gas flow (L/min)×set concentration value(%(v/v)), when the isoflurane concentration is 2% and the gas flow rate is adjusted to 600mL/min, a 100mL bottle of isoflurane can be used for approximately 28-30 hours. | |
Loss of anesthetic | 22℃, 0 graduation, less than 0.5mL/24h. | |
Maximum pressure load | 20kPa | |
Maximum use tilt angle | 30° | |
Material | mainly aluminum | |
Working conditions | temperature: 5~40℃ | atmospheric pressure: 700~1060hPa |
Storage conditions | temperature: -40~55℃ | atmospheric pressure: 500～1060hPa |
| Video Show
SHINOVA, a well-known animal health brand in the world.
SHINOVA, based in Shanghai, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and scientific research institutes.
For decades global operations, Shinova has dedicated itself to providing advanced veterinary techniques and medical solutions to tens of thousands of animal hospitals (including veterinary hospitals and equine hospitals) and veterinary schools (including veterinary teaching and animal experiments) in Europe, America, Australia, China, etc.
