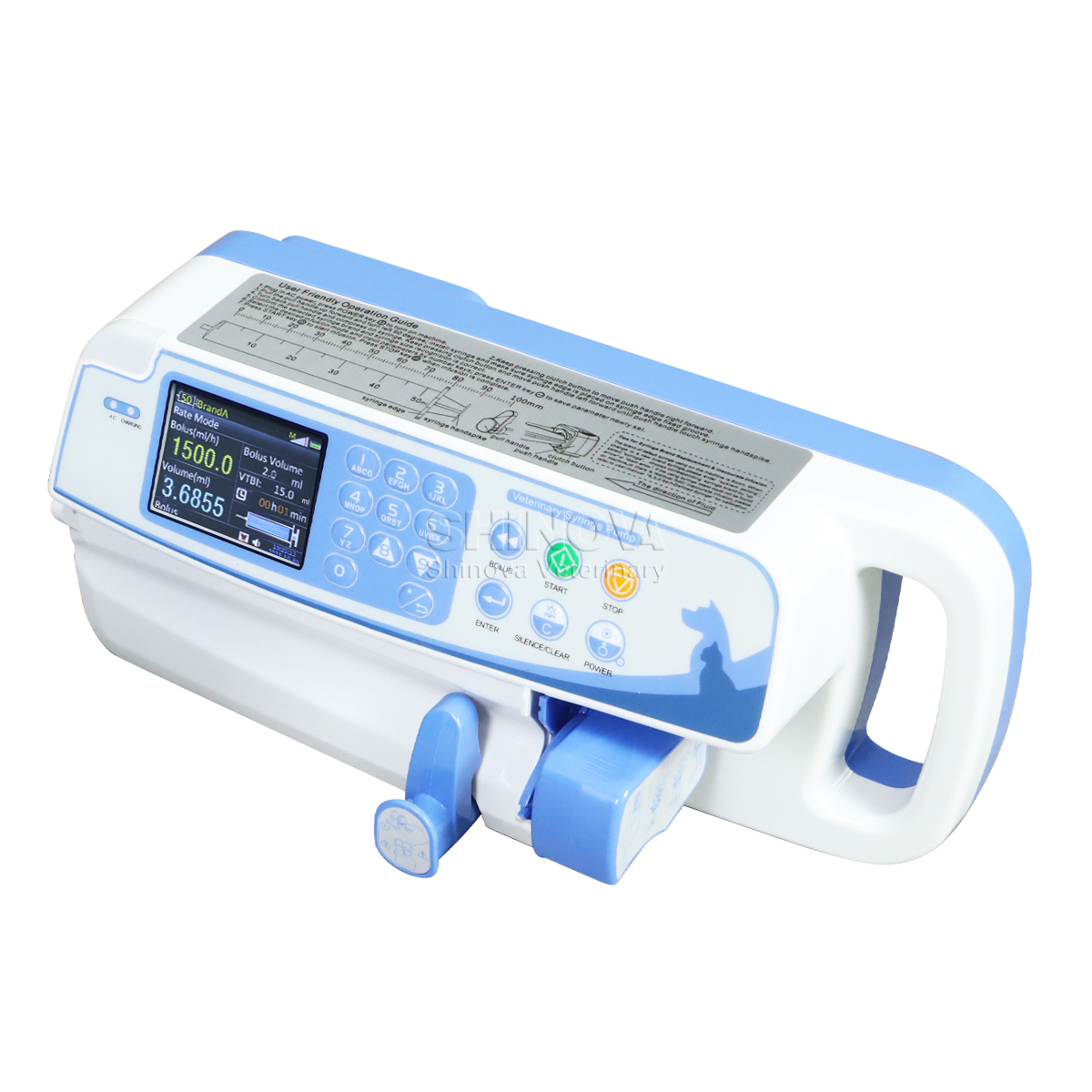

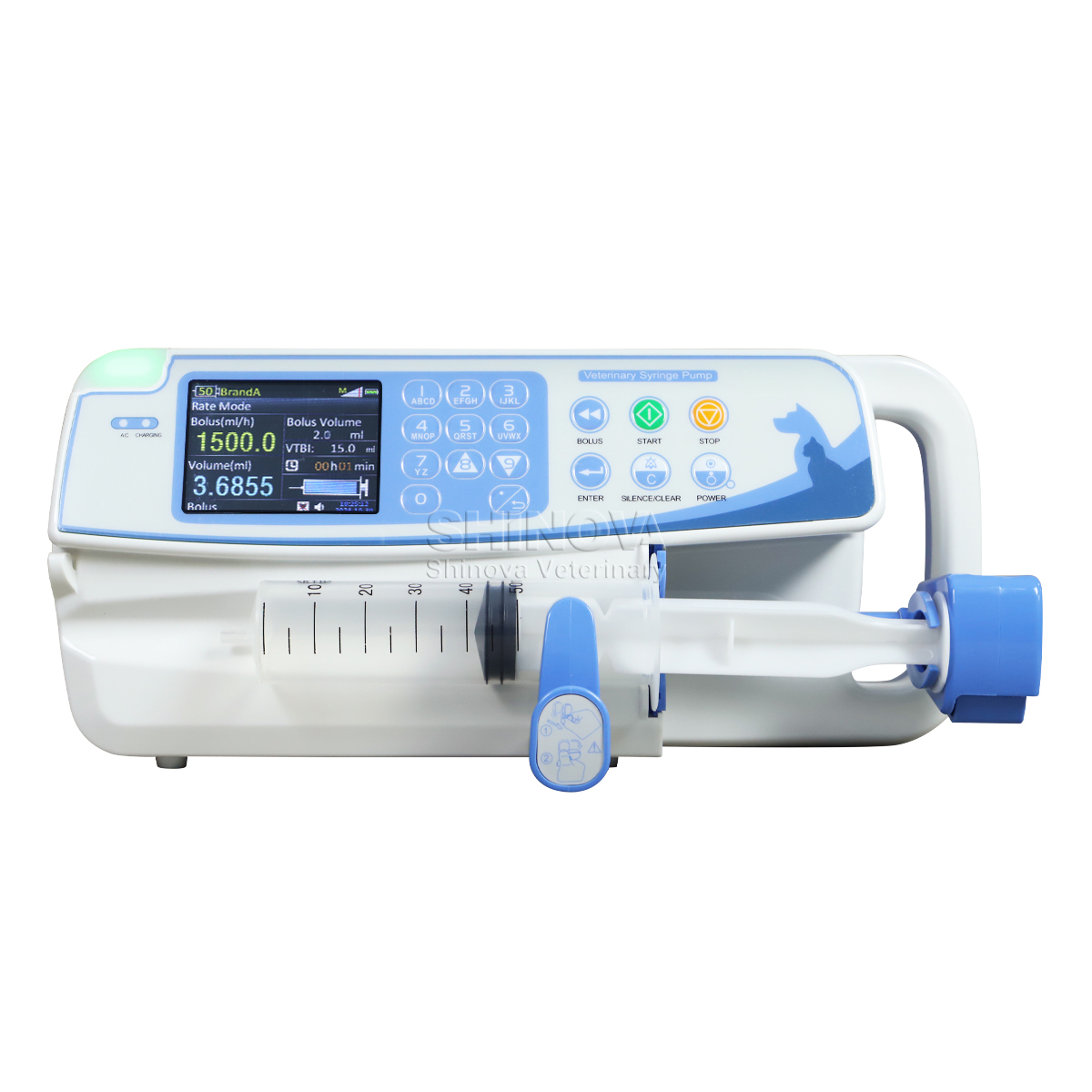

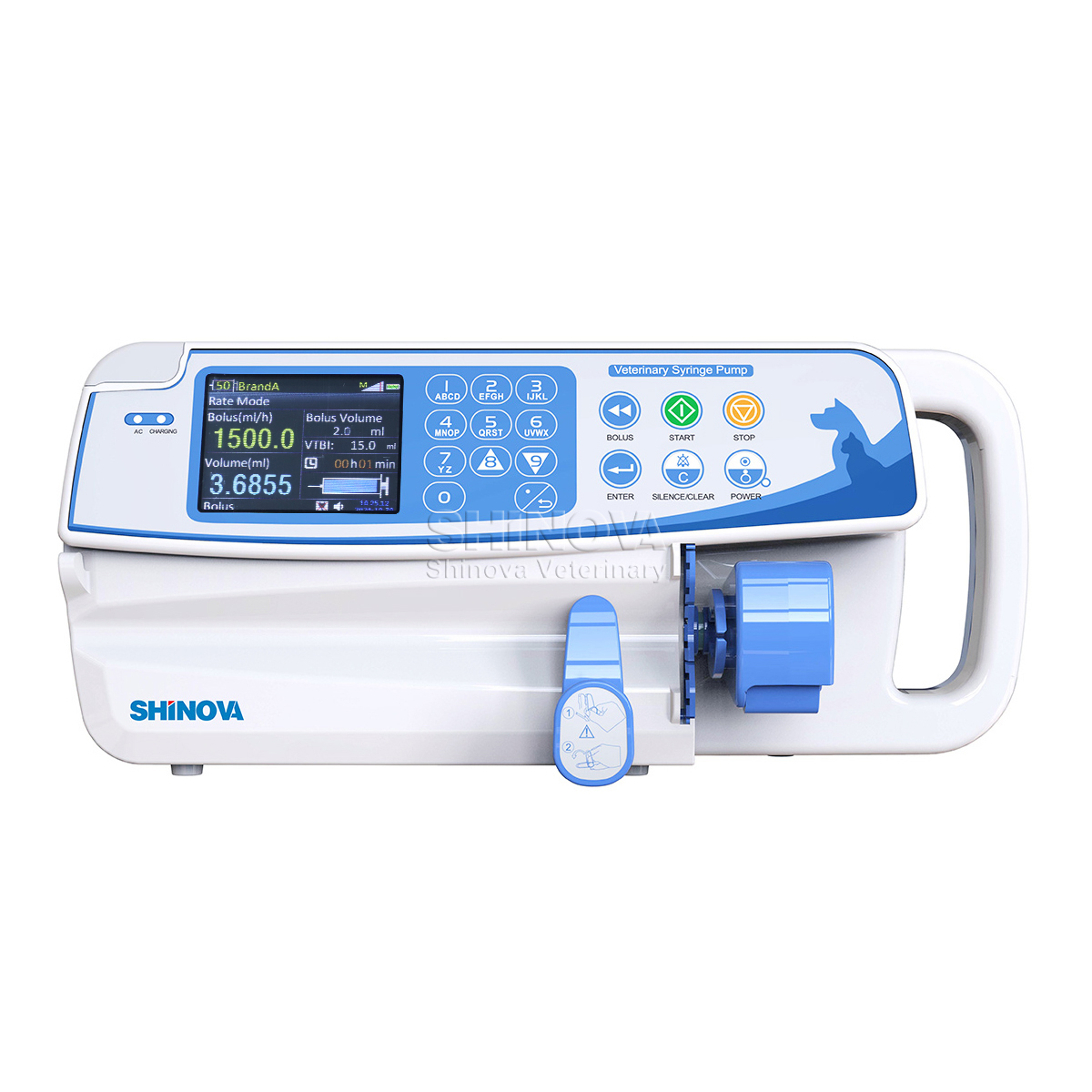

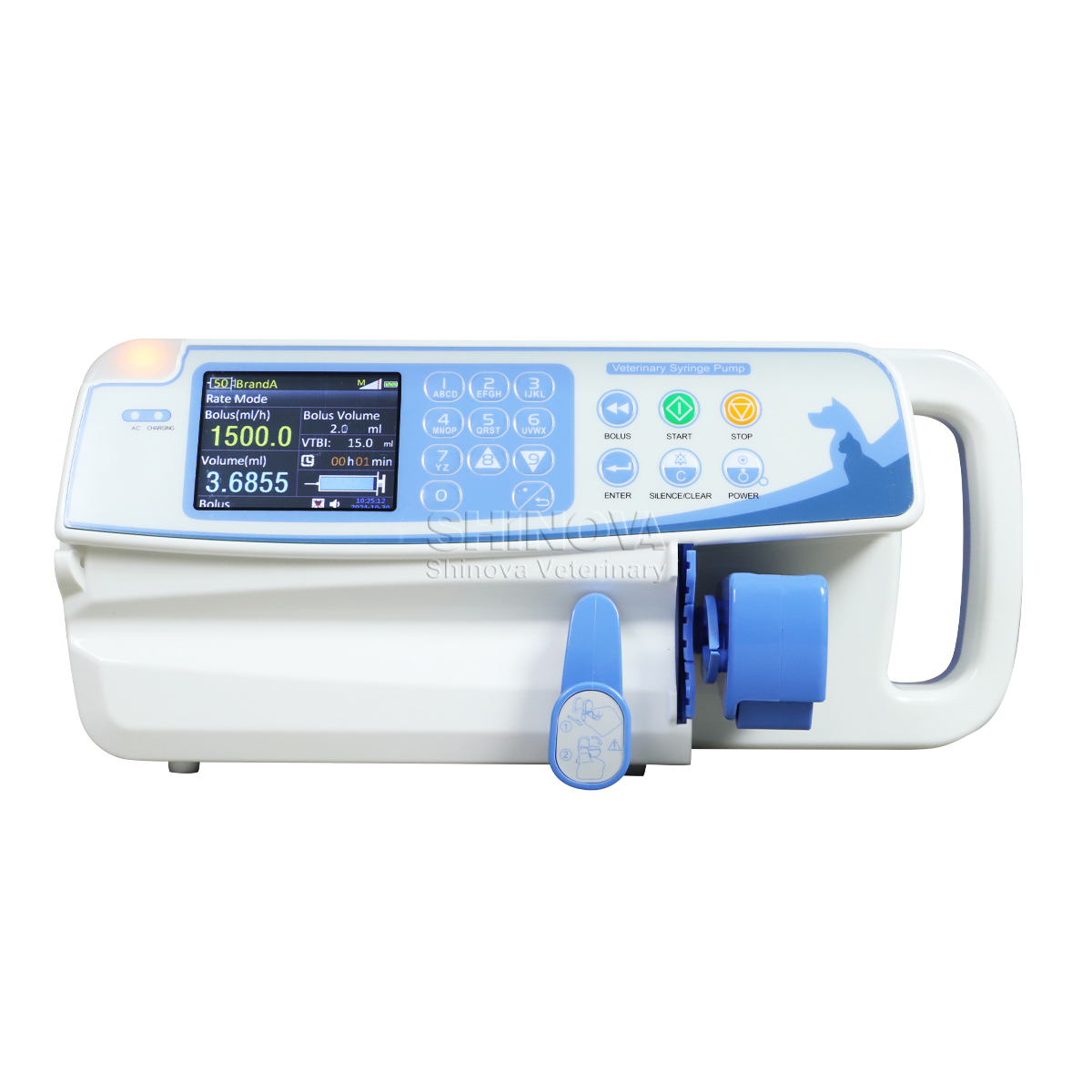

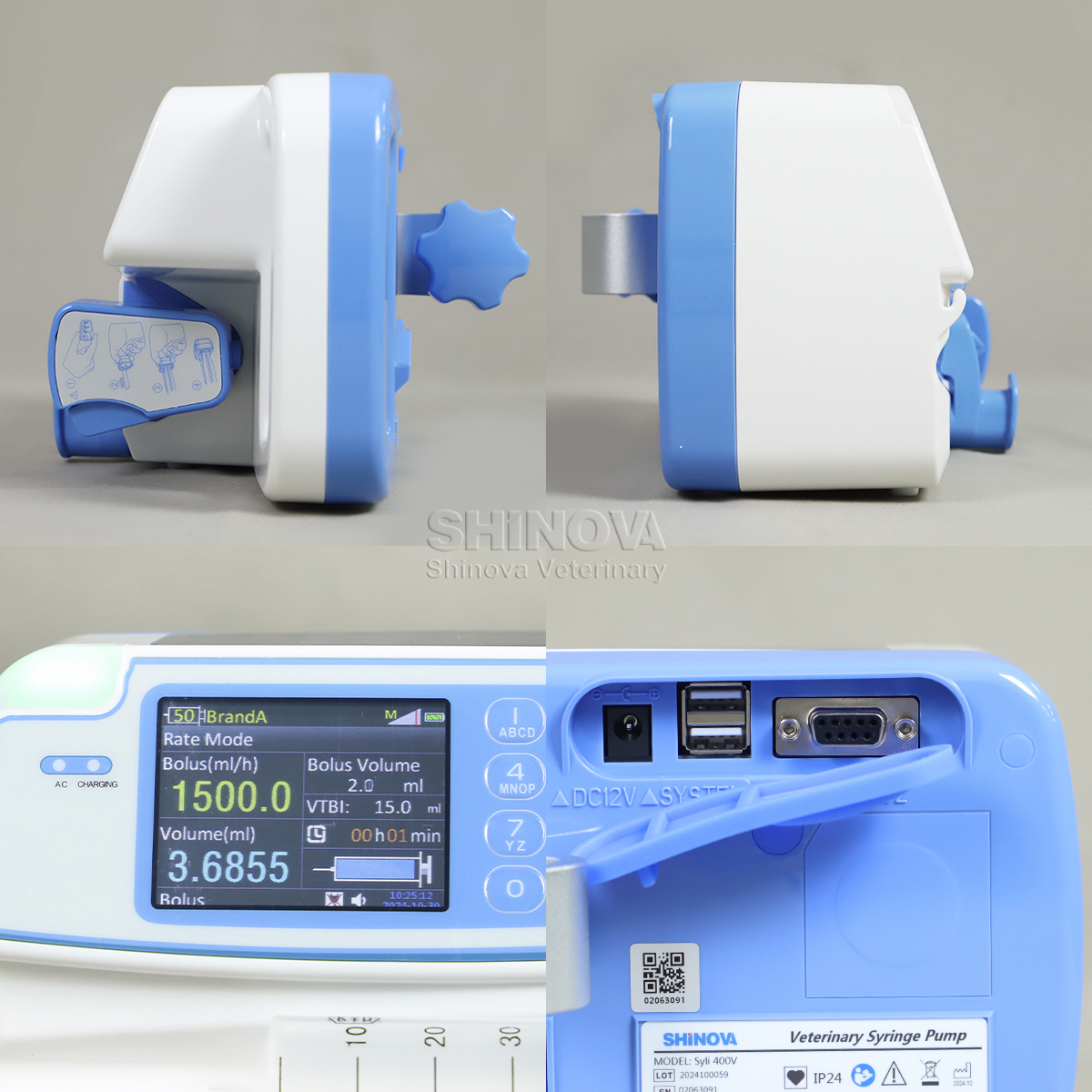

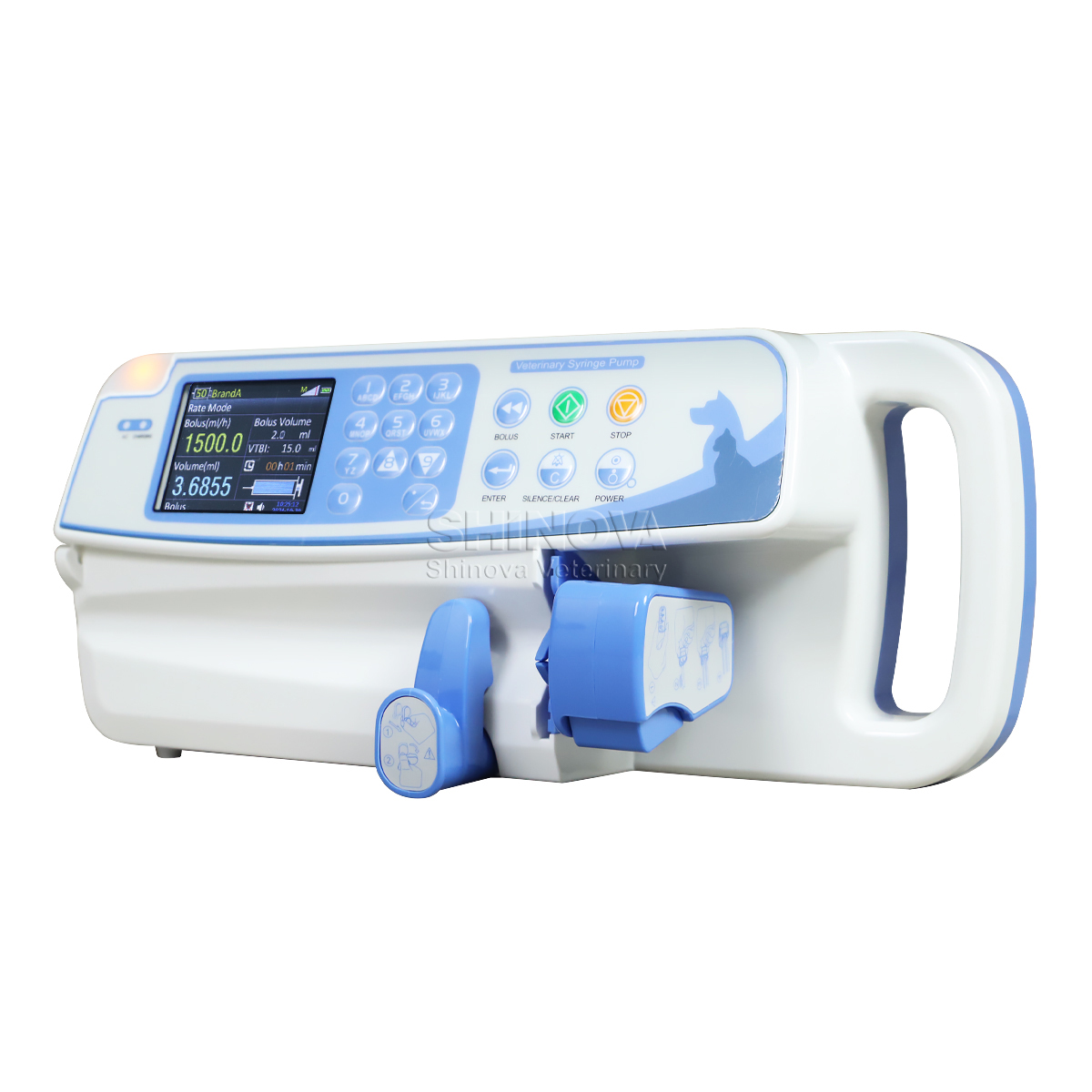

Veterinary Syringe Pump

  • Syli 400V

  • SHINOVA

Availability:
Quantity:


|  Features

  • 2.8" large color LCD screen

  • Numeric keys design, easy to operate

  • Real time display ensures infusion information to be recorded correctly

  • Unique intelligent self-recognition technology of syringes

  • Double CPU ensuring safe infusion

  • Applicable for 5ml, 10ml, 20ml, 30ml, 50ml (60ml) syringes

  • Compatible to various brands of syringes

  • KVO, Bolus and Anti-bolus

  • 3 adjustable occlusion levels, dynamically display the pressure

  • Various infusion modes to meet different clinical requirements

  • Various visual and audible alarms

  • Night mode

  • History records


|  Specifications


Infusion mode

Rate   mode, Time mode, Body weight mode, Intermittent infusion mode (optional),   Drug library mode (optional)

Applicable syringes

Various brands   of sterile syringes: 5ml, 10ml, 20ml, 30ml, 50ml/60ml

Accuracy

±2% (after syringe correct   calibration)

Infusion rate

5ml syringe: 0.1 - 150ml/h

10ml syringe: 0.1 - 300ml/h

20ml syringe: 0.1 - 600ml/h

30ml syringe: 0.1 - 900ml/h

50ml syringe: 0.1 - 1500ml/h

Volume to be infused (VTBI)

0 - 1000ml

Volume Infused (∑)

0 - 9999.9ml

KVO rate

0.1-2ml/h adjustable; default value: 0.1ml/h

Bolus rate

5ml syringe: 100 - 150ml/h

10ml syringe: 100 - 300ml/h

20ml syringe: 100 - 600ml/h

30ml syringe: 100 - 900ml/h
  50ml/60ml syringe: 100 - 1500ml/h

History record

1600 records

Alarms

Syringe disengaged, Empty,   Occlusion, Almost done, Infusion completion, Low battery, Handle off, AC   power supply fail, Battery exhausted, etc.

Power supply

AC: 100 - 240V, 50/60Hz

DC: 12V±1.2V

Power consumption

25VA

Nurse call interface

Optional

Classification

Class I, type CF

Dimensions

300mm x 130mm x 125mm (L*W*H)

Net weight

1.8KG

Waterproof Level

IPX3

Occlusion pressure

(40-160)kPa, 3 adjustable occlusion   pressure settings: low, middle and high

Battery

Rechargeable Li polymer battery,   7.4V, 1900mAh

Running time: Support to work for 7   hours after fully charged (at 25ml/h, temperature 25℃).

Battery recharge time: 10h with power   on, 3h with power off
