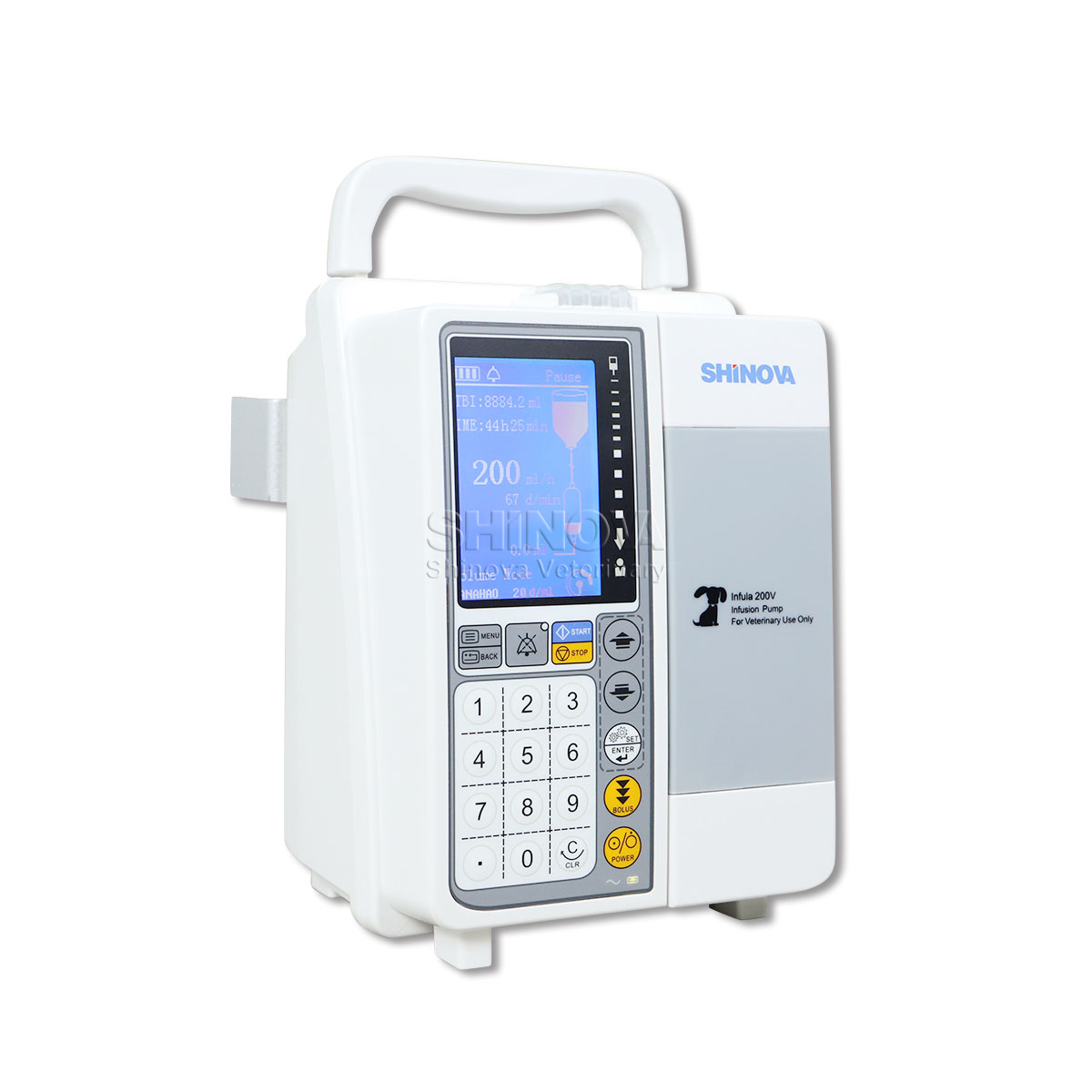

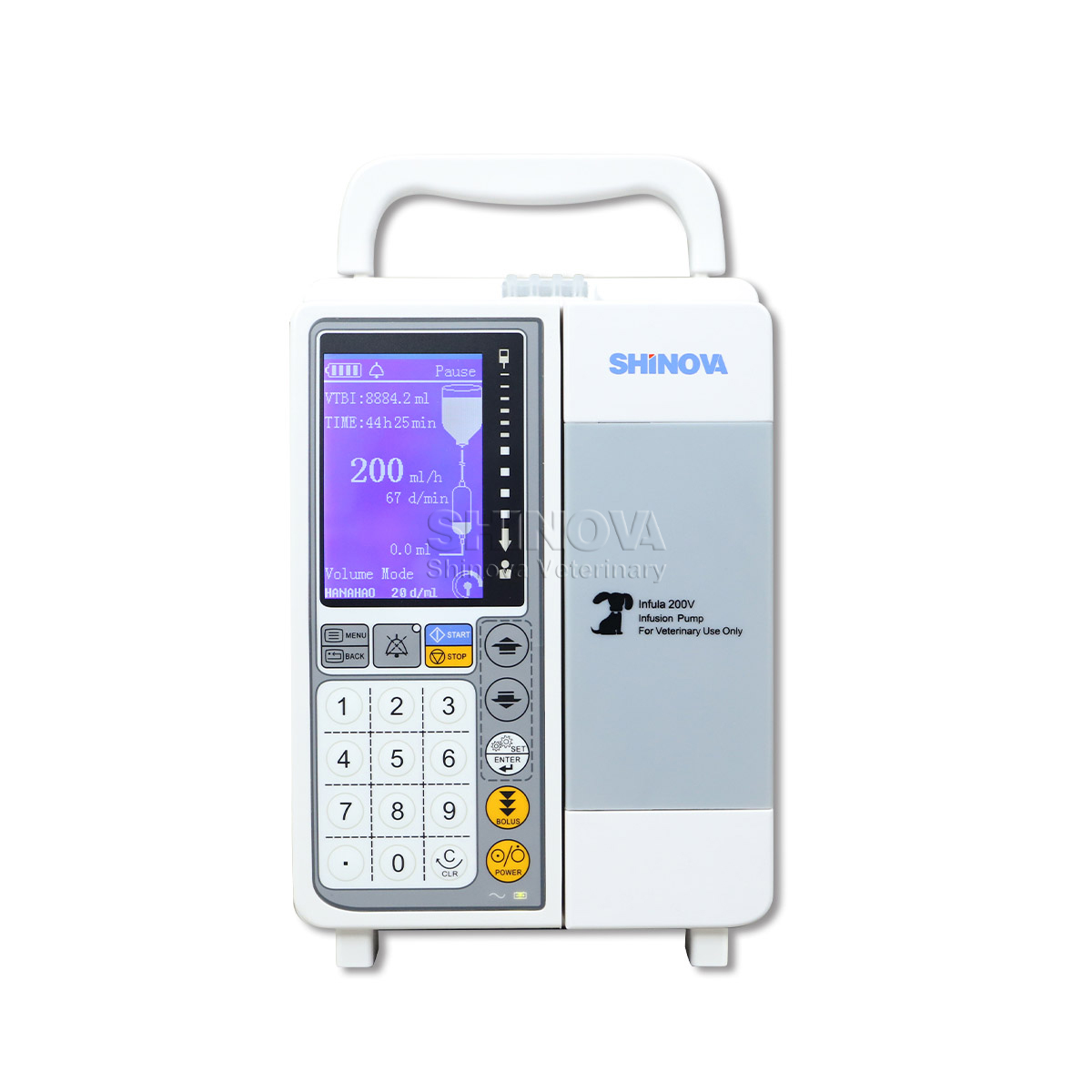

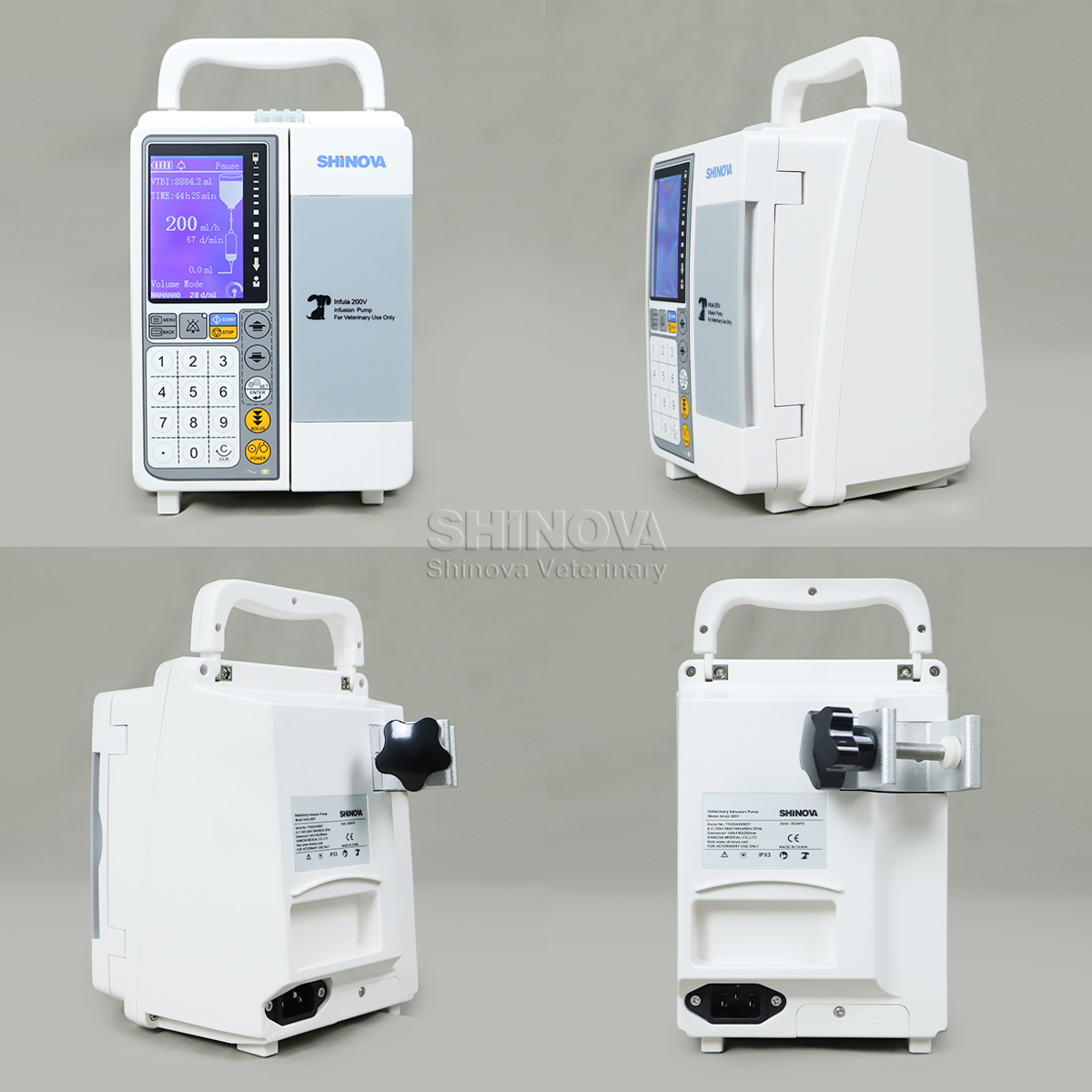

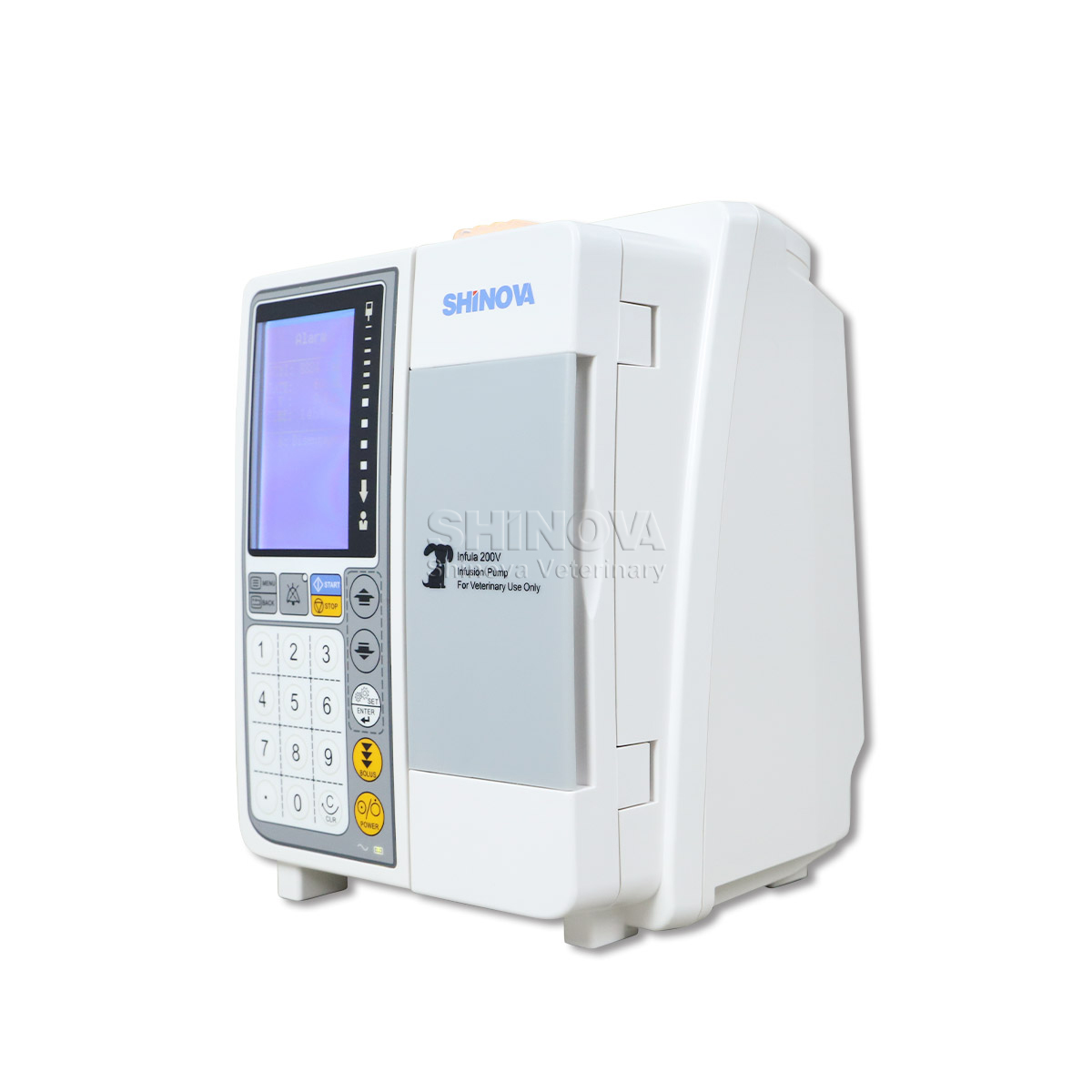

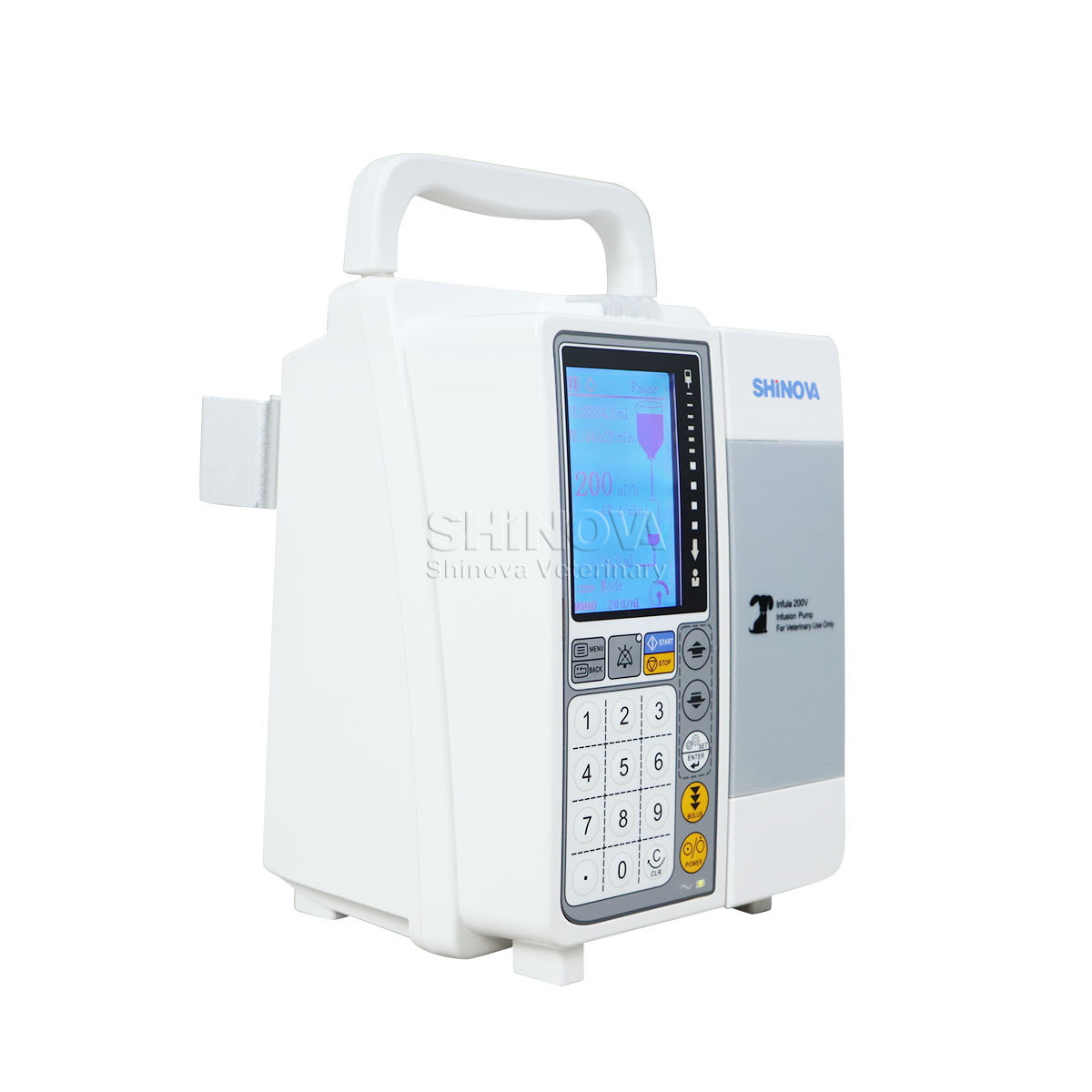

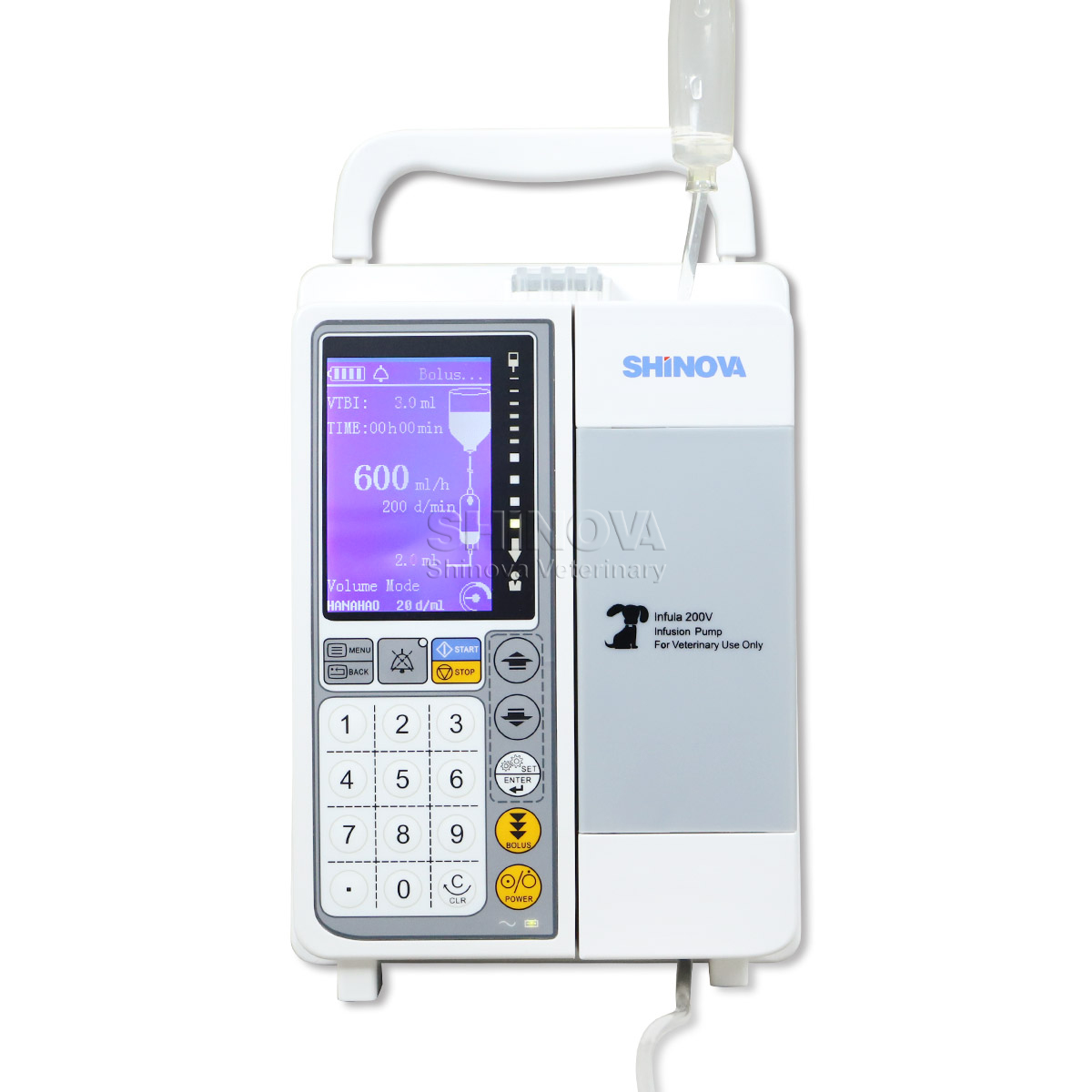

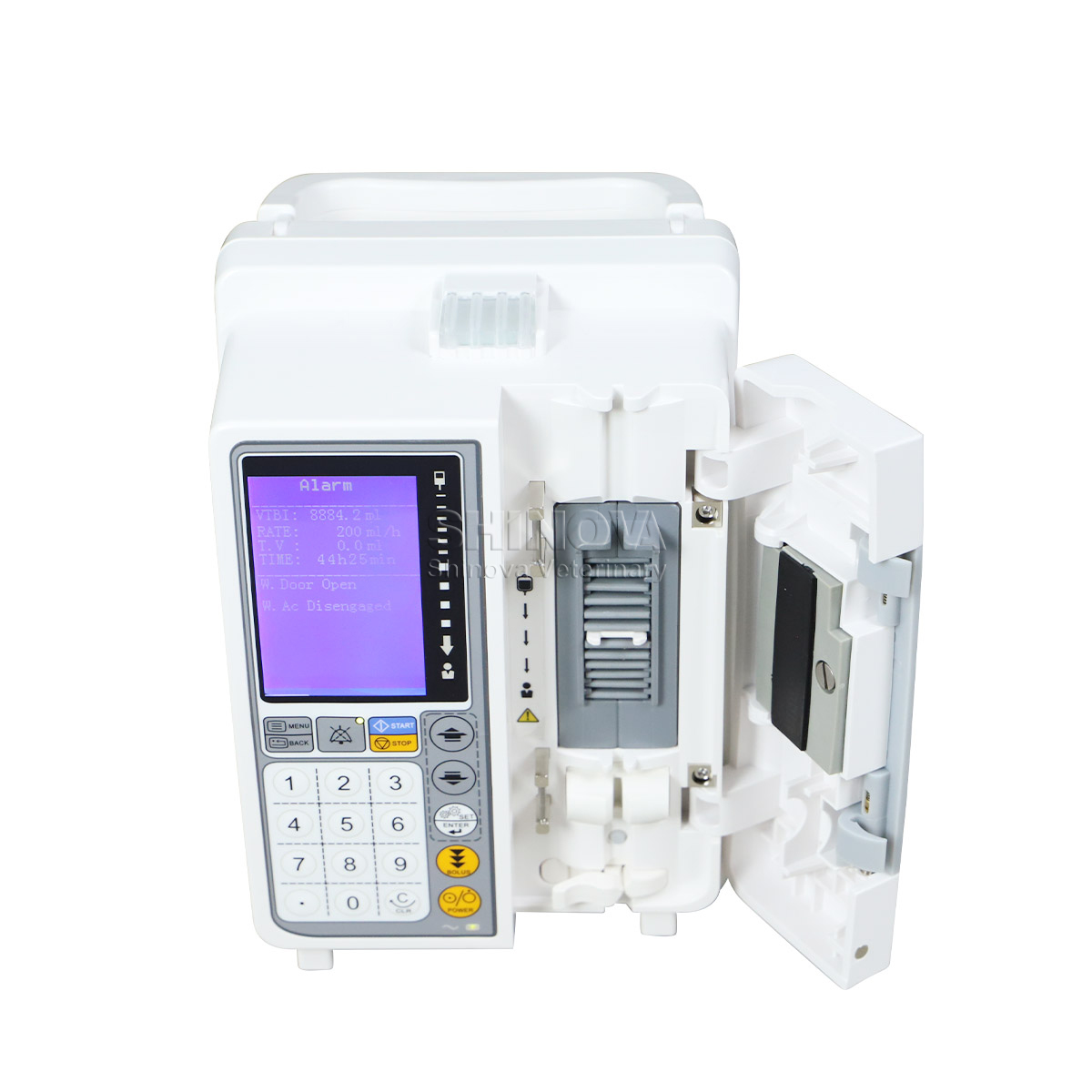

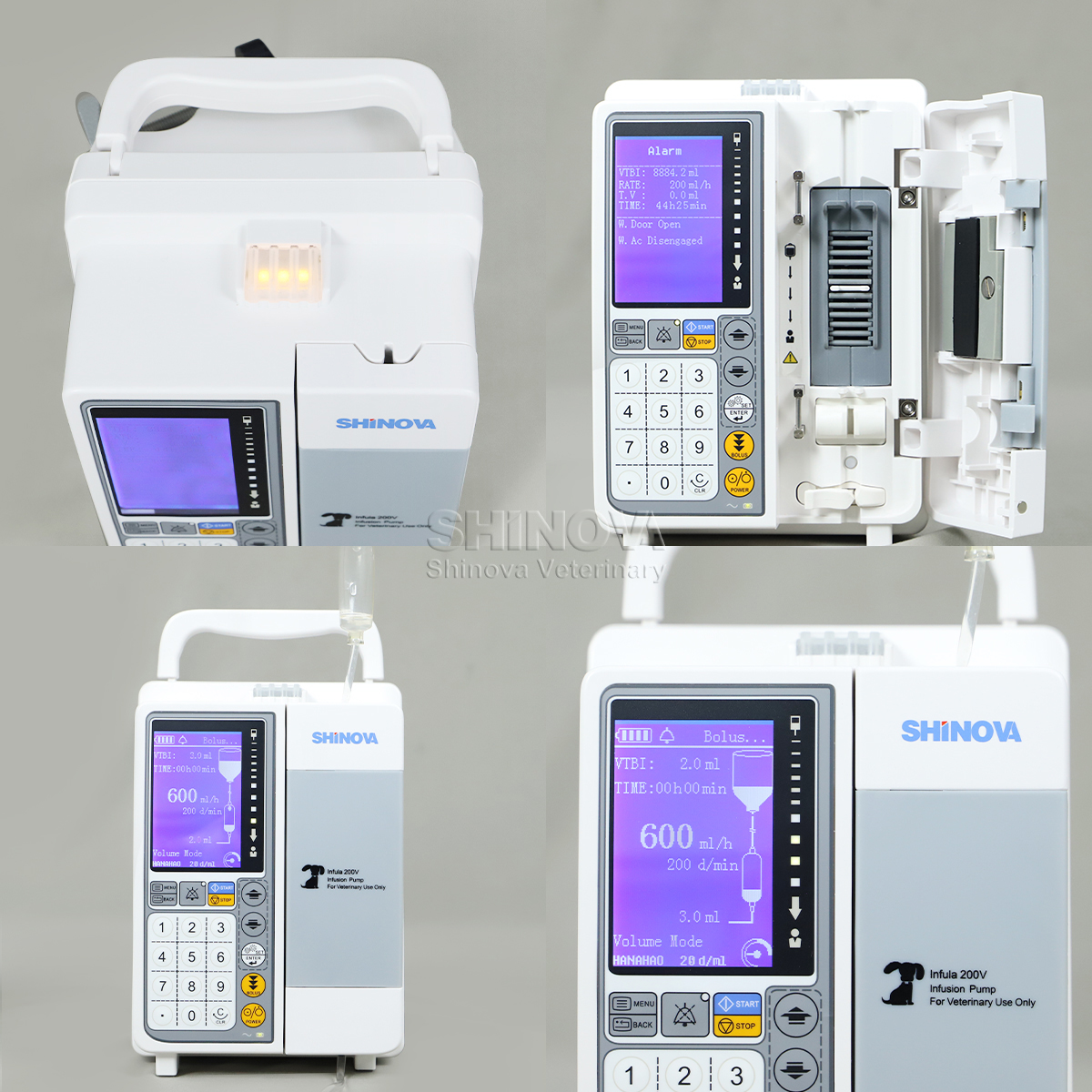

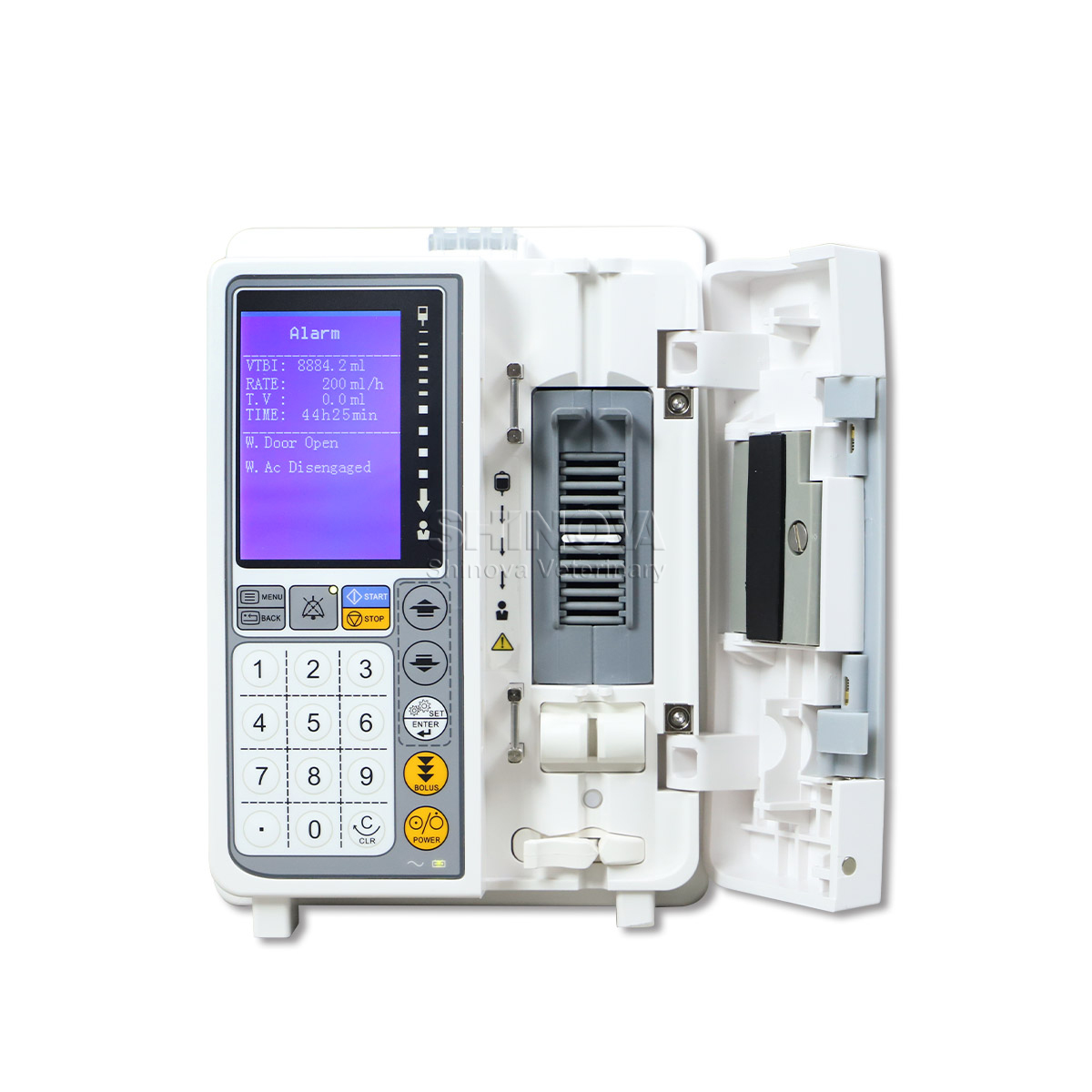

The infusion pump is the second generation product by our company. It has LCD display screen and micro computer controlled. The peristaltic pump is power source with multiple sensors to monitor the infusion pump and has variety of alarm functions. It’s easy to operate and meets all the demand of various cases of transfusion, like single infusion, infusion two liquids at the same time or infusion for two people. Using infusion apparatus with the infusion pump, it can control the liquid flow to the patient.
| Features
★ Keen alarms
Once the pump works,the alarms(Air,Occlusion,Low battery, Door open,Infusion complete) start.The pressure of the occlusion can be adjusted through the pressure sensor for suiting different kinds of infusion set.
★ Adopting to a wide range of voltage
The ZNB serious pump can work normally,when the voltage is from 90V to 270V
★ KVO function
When completing infusion,the pump can switch into KVO automatically.
★ Low power consumption and noise
The total power consumption is less than 18VA and the noise is lowered a lot because of fine circuit design and reasonable mechanical drive.
★ Fine after-sale services
We provide two-year free maintenance and lifelong maintenance for the pump.You can be assured to use the product.
Product function:
Apply to infusion apparatus
Ordinary infusion apparatus: Normal PVC titration transparent or lucifuge infusion apparatus (pipe diameter is about 3.5mm) can be used. Please make sure the pipe.
| Specifications
Infusion flow rate
Specialized infusion apparatus:0.1ml/h-1200ml/h;
Ordinary infusion apparatus:0.1ml/h-600ml/h;
Remarks: with 0.1-30ml/h (0.1ml/step);
over 30ml/ (1ml/step).
Infusion accuracy error
Specialized infusion apparatus:±5%(medium speed, 23℃, humidity: 60%);
Ordinary infusion apparatus:±5%(medium speed, 23℃, humidity: 60%);
Total infusion volume preset: 0.1-9999ml.
Remarks: with 0.1-30ml/h (0.1ml/step);
over 30ml/ (1ml/step).
Occlusion sensitivity: It has three adjustable levels of occlusion pressure as high, medium and low.
Low speed(1ml/h):250~500 seconds;
Medium speed (120ml/h):7~14 seconds;
High speed (600ml/h):0.2~1 seconds;
*Above data is measured at the status of 25℃ ambient temperature, ordinary pressure, use ordinary PVC(∮3) infusion apparatus and high sensitivity.
KV0: 1-2ml/h.
Power supply:
AC:100-240V,50/60Hz;
DC:11.1V(built-in battery), 2200mAh.
Fuse: F0.75AL(socket back).
Power consumption: 30VA.
Product dimension and weight:185×115×196(mm), 3.8kg. Security classification:
The equipment is conform to IEC60601-1-2 standard and can resist a certain electromagnetic interference, which is no electromagnetic interference to other devices. However, please keep the infusion pump away from strong electromagnetic equipment, for example: radio knife, MRI.
