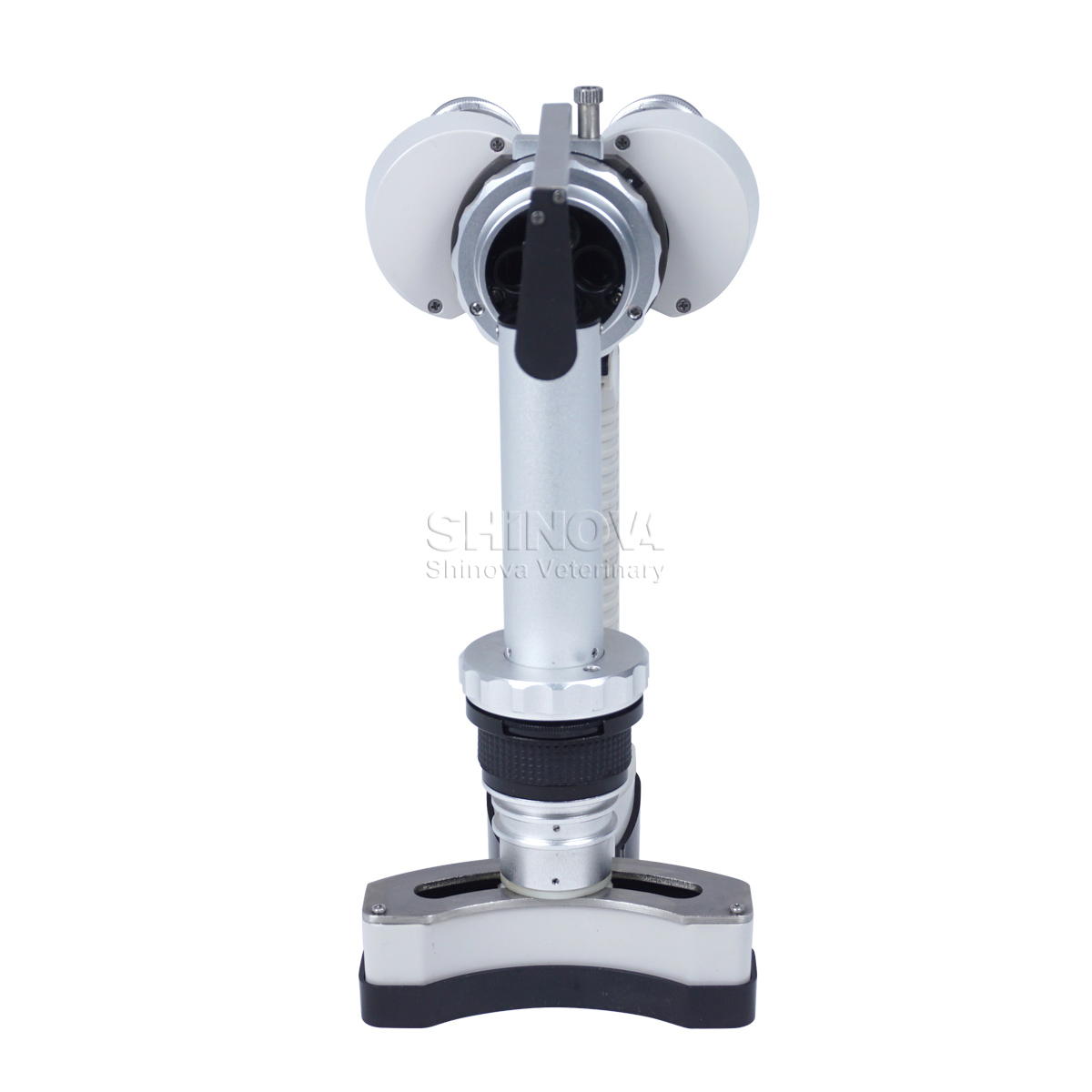

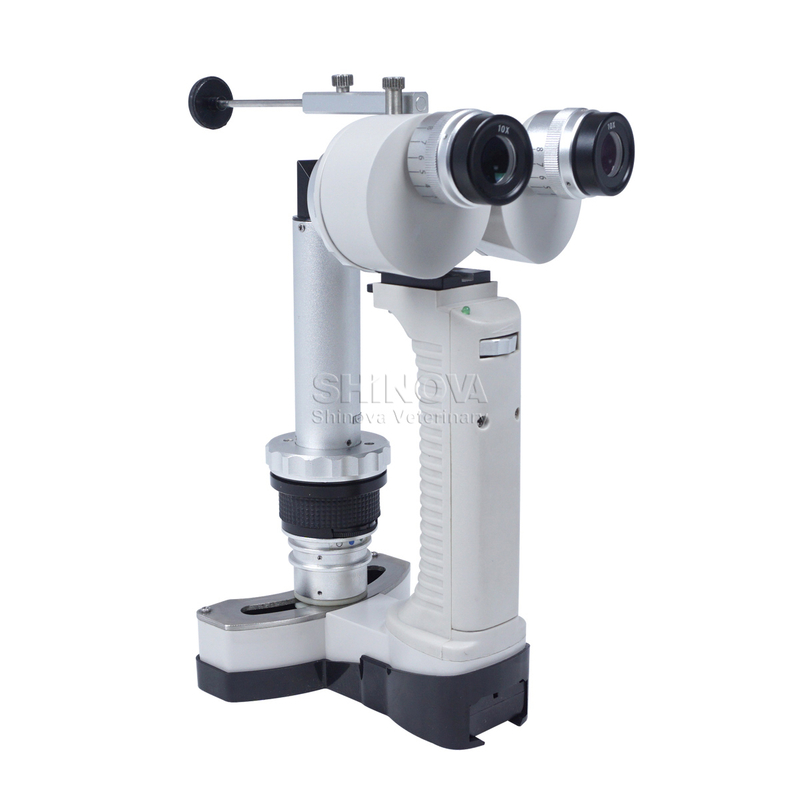

| Features

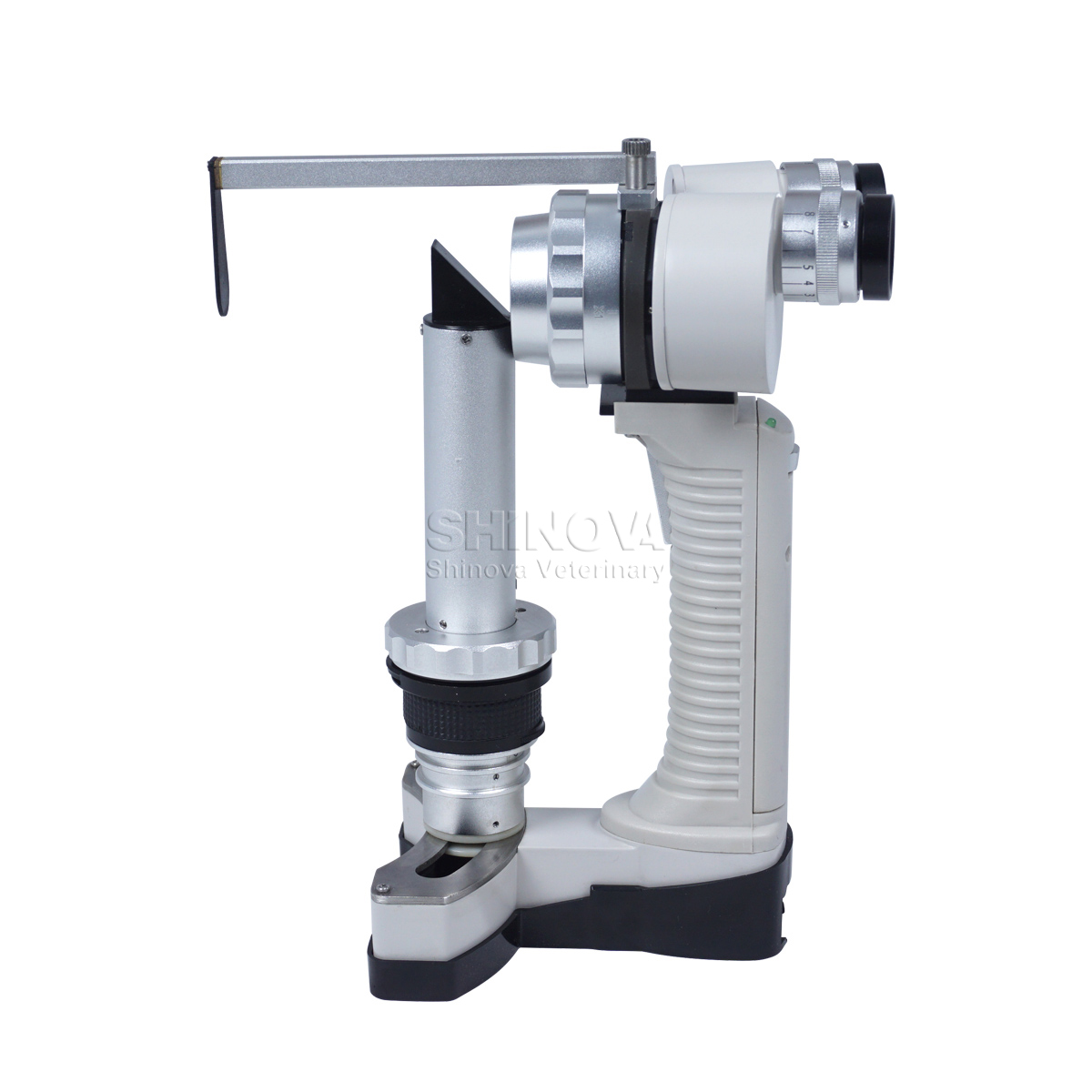

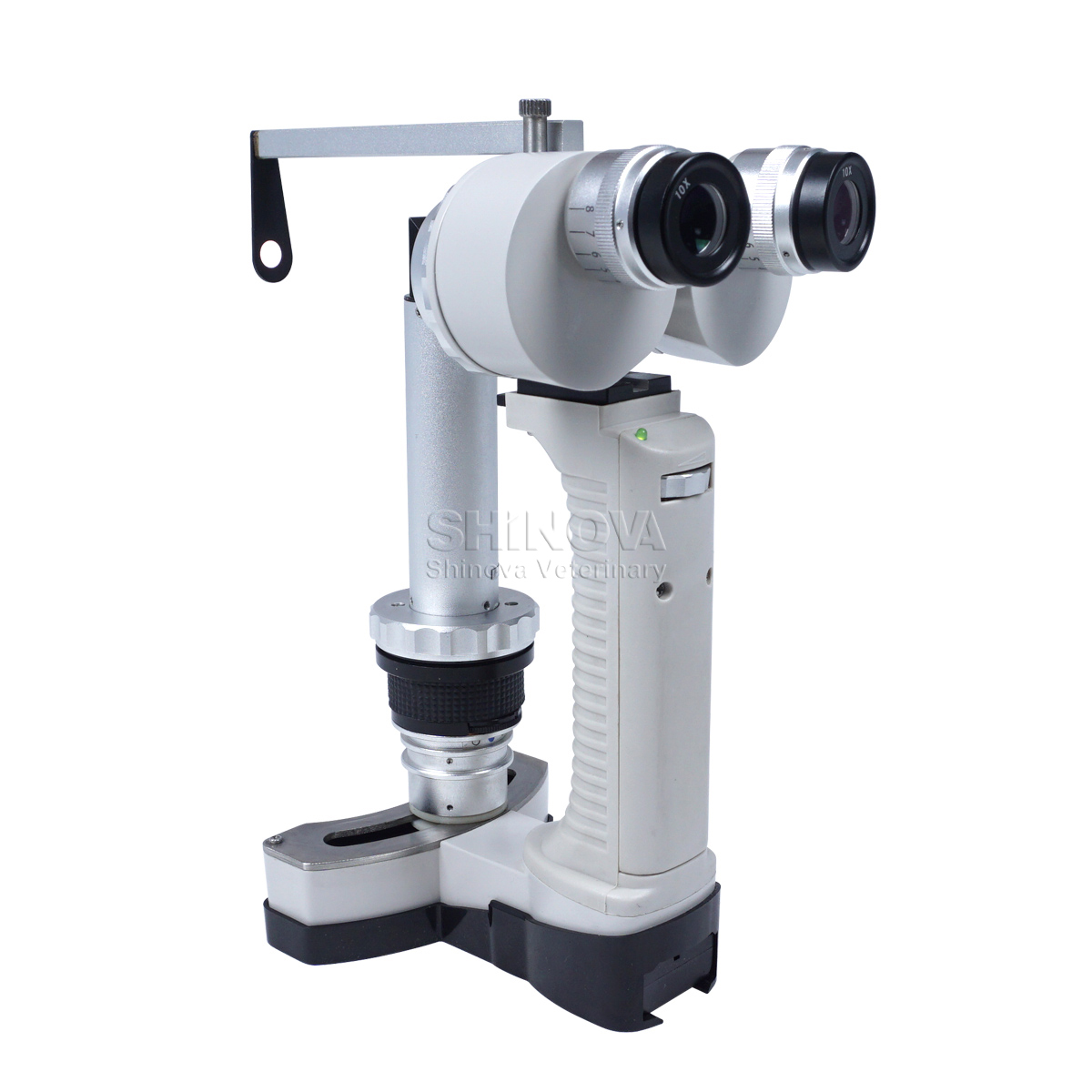

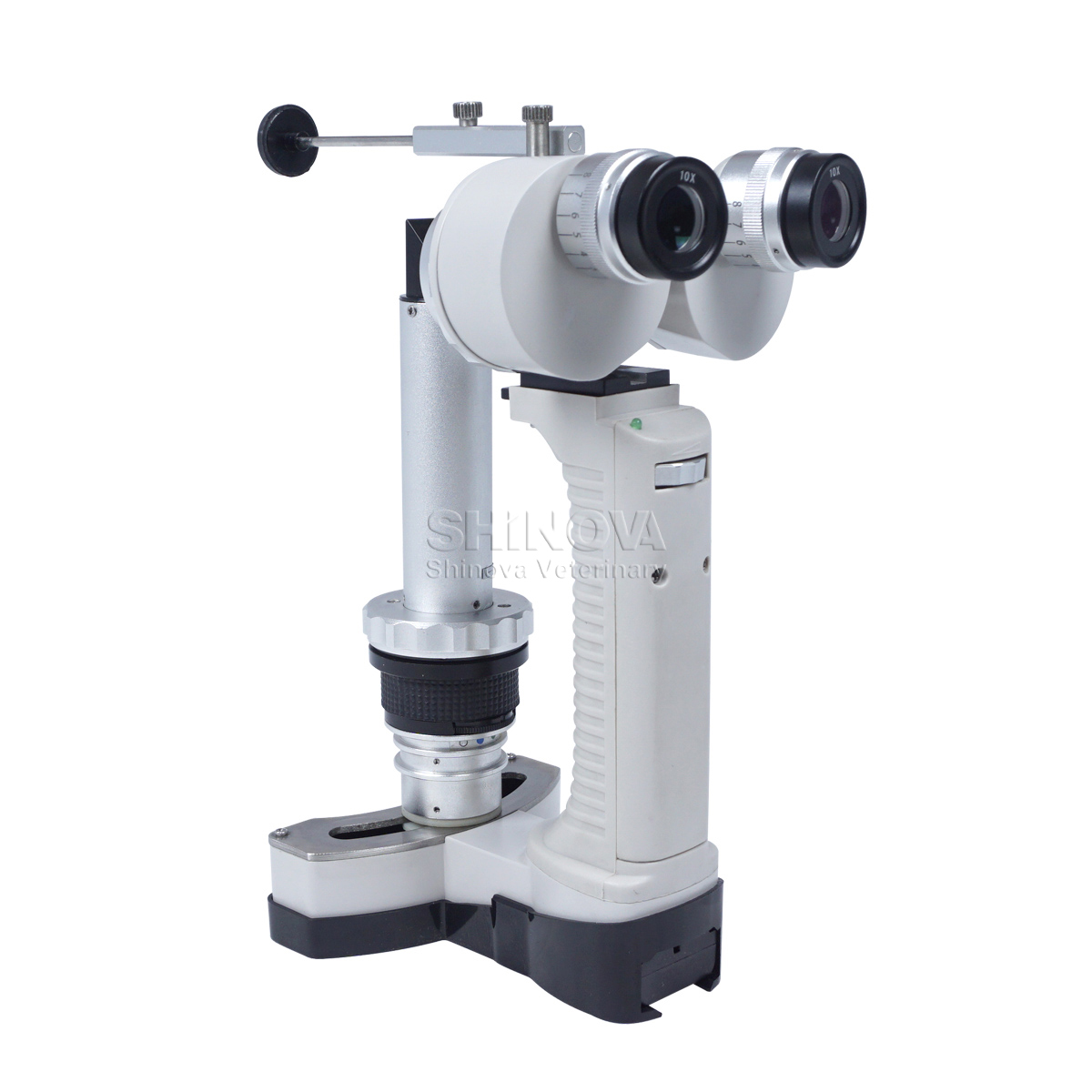

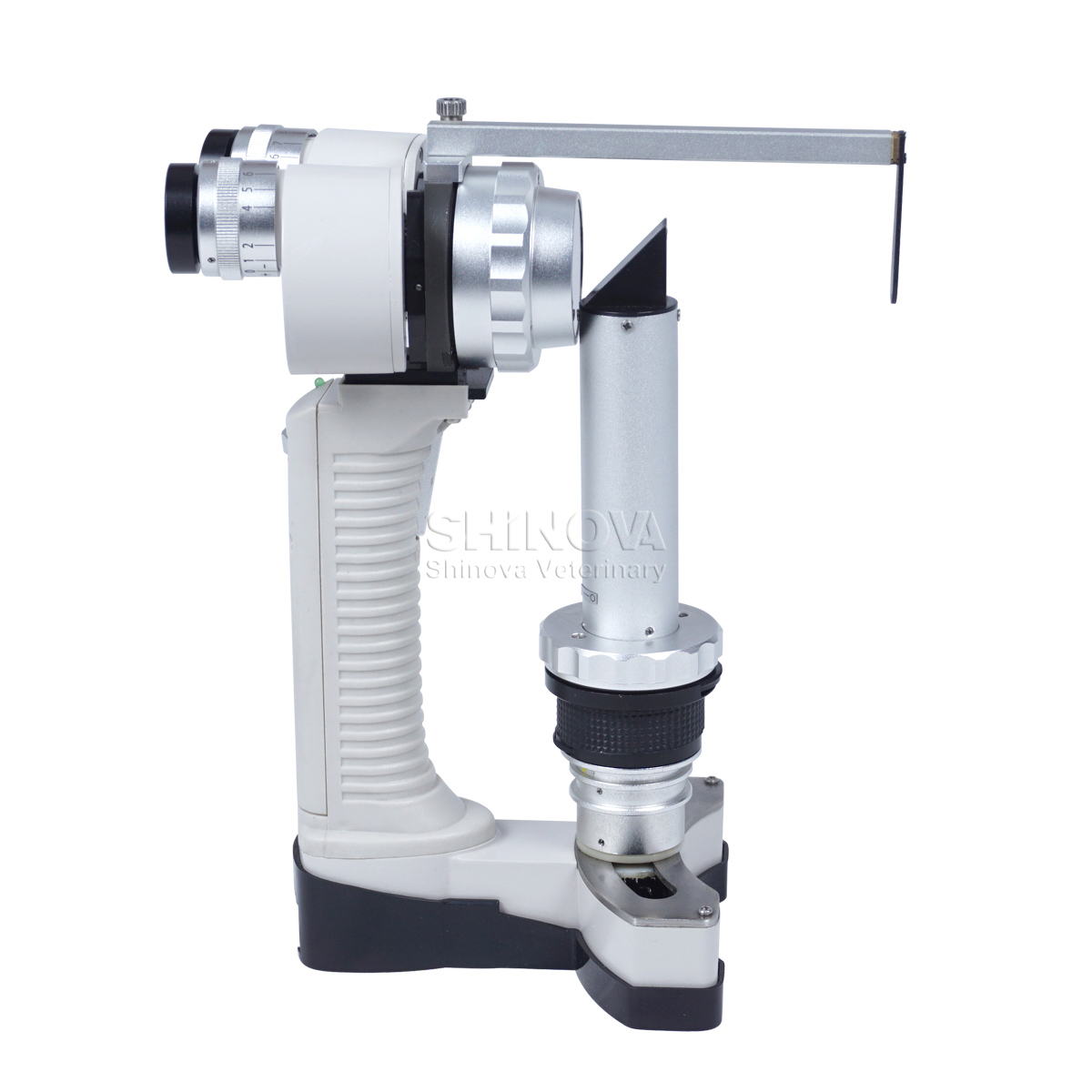

The entire unit is lightweight and portable, weighing only 700 grams (including batteries).
It has all the functions of a desktop slit lamp, making it ideal for veterinary outpatient visits, ward rounds, and other procedures.
It features an ultra-long standby time, supporting over 5 hours of continuous use.
The high-brightness white LED bulb boasts a brightness of ≥30,000 Lux and a lifespan of over 50,000 hours.
It offers four spot sizes, ranging from a minimum of 0.2 mm to a maximum of 12 mm.
It comes with a variety of color filters, including cobalt blue, red-free filters, and color temperature compensation filters.
It also features an animal ophthalmology image analysis system.
| Specifications
Model | SL-PA | SL-PB | SL-PC | |

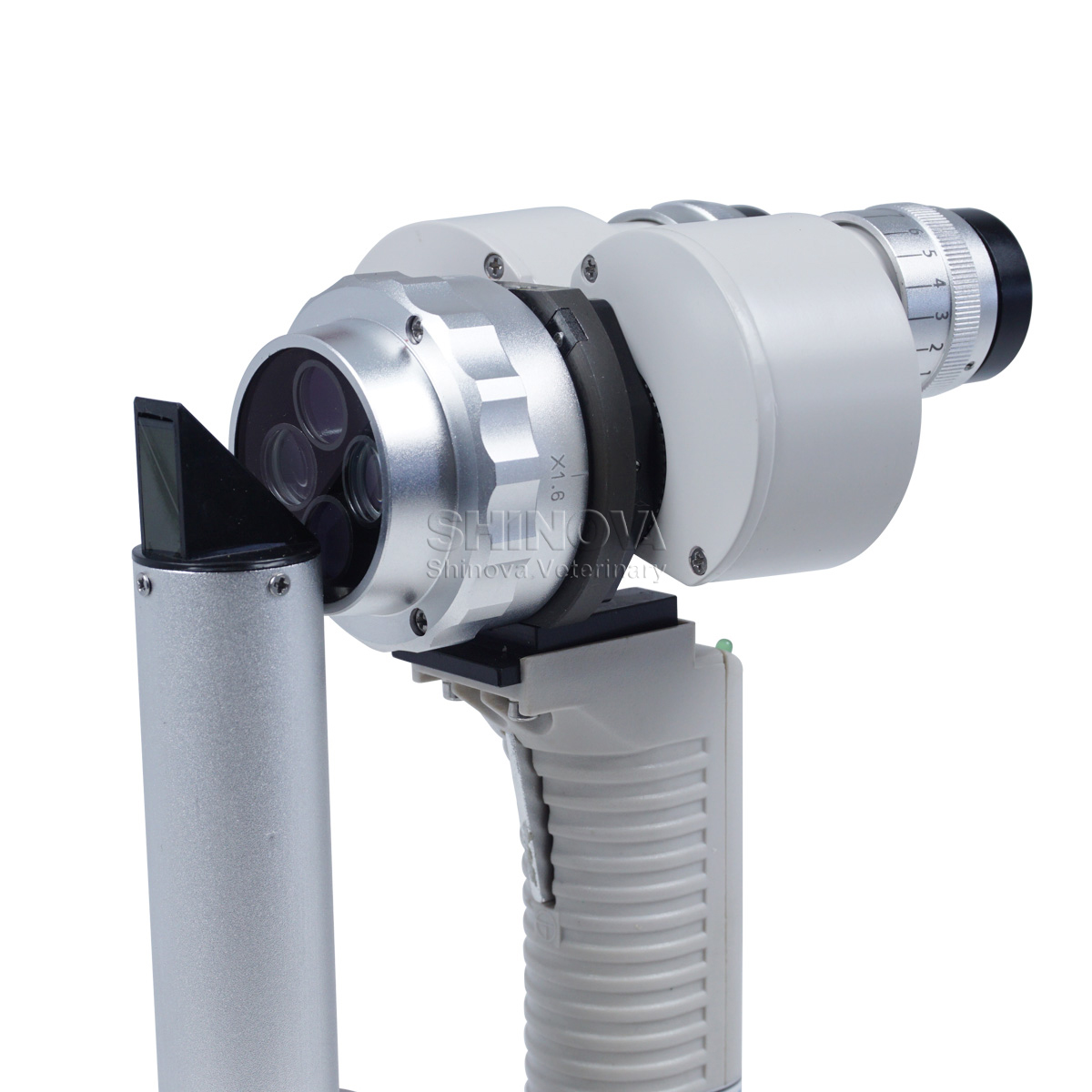

Microscope | Optical design type | Cross-angle stereoscopic | ||
Eyepiece type | High eyepoint eyepiece | |||
Center field of view resolution | ≥1800 N line pairs/mm (N = numerical aperture, N = 0.06) | |||
Nominal field of view diameter | 10X：10mm；16X：6mm；25.6X：4mm | |||
Objective lens | 1.0X | 1.0X、1.6X | 1.0X、1.6X | |
Eyepiece | 10X | 10X | 10X、16X | |
Total magnification | 10X | 10X、16X | 10X、16X、25.6X | |
Working distance | 81mm | |||
Interpupillary distance adjustment range | 45mm~78mm | |||
Diopter adjustment | -8D~+8D | |||
Lighting | Slit width | 0~12mm continuously adjustable | ||
Slit height | 1~12mm | 1~12mm | 1~12mm | |
Light bar diameter | 12mm | ф0.2mm、ф1mm、ф5mm、ф12mm | ||
Color filter | Colorless film, heat shield film, dimming film, red-free film, cobalt blue film | |||
Light bulb | High-brightness white LED | |||
Illumination | ≥30,000 Lux | |||
Power Supply | LED operating voltage | DC 3V | ||
Battery | Lithium-ion battery: 7.4V, 680mAh (a full charge provides 5-6 hours of continuous operation) | |||
weight | size | 169.5mm × 109.5mm × 228.5mm | ||
weight | ≤700g (including battery) | |||
