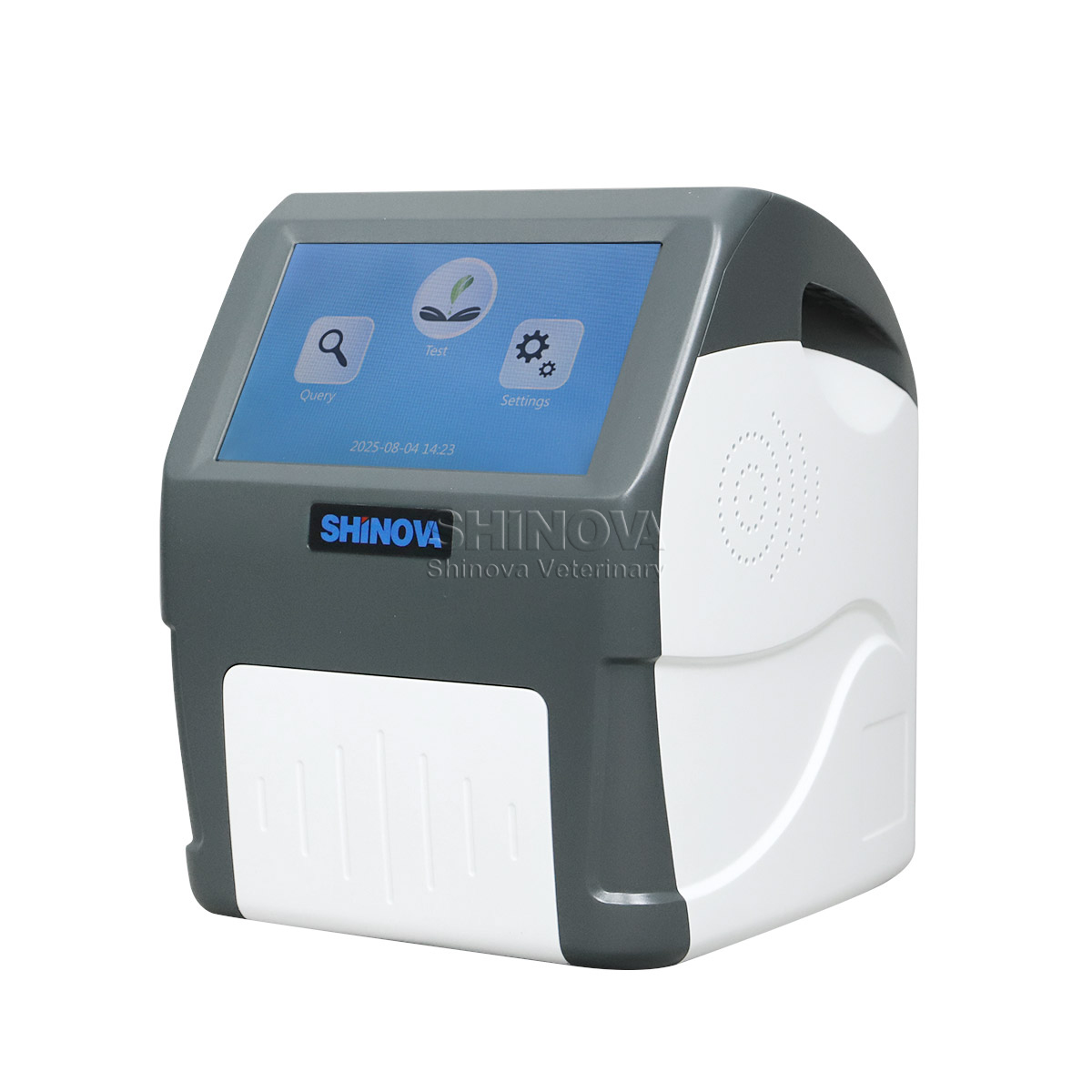

ChemoDisk 6
SHINOVA
| Quantity: | |
|---|---|
| Features

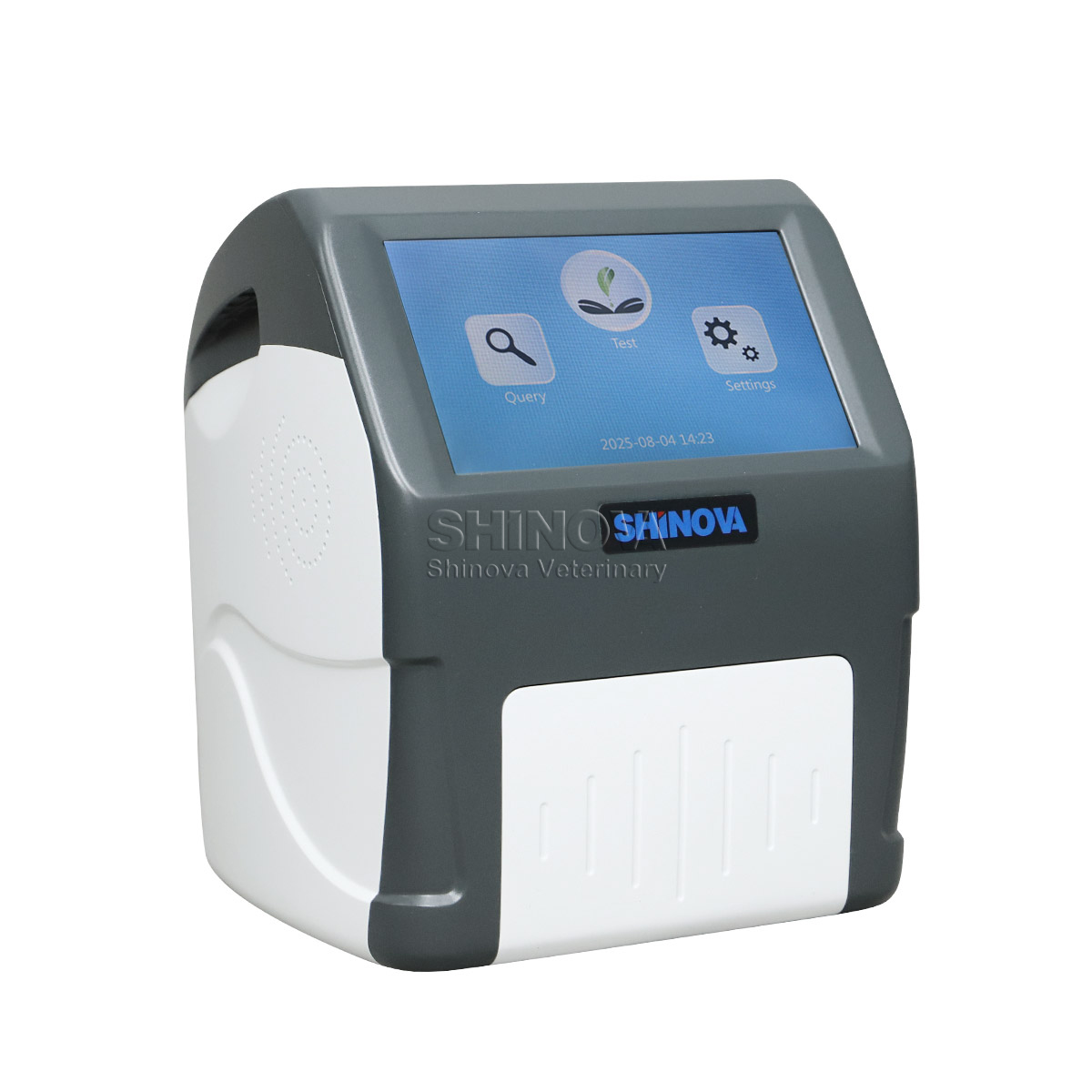

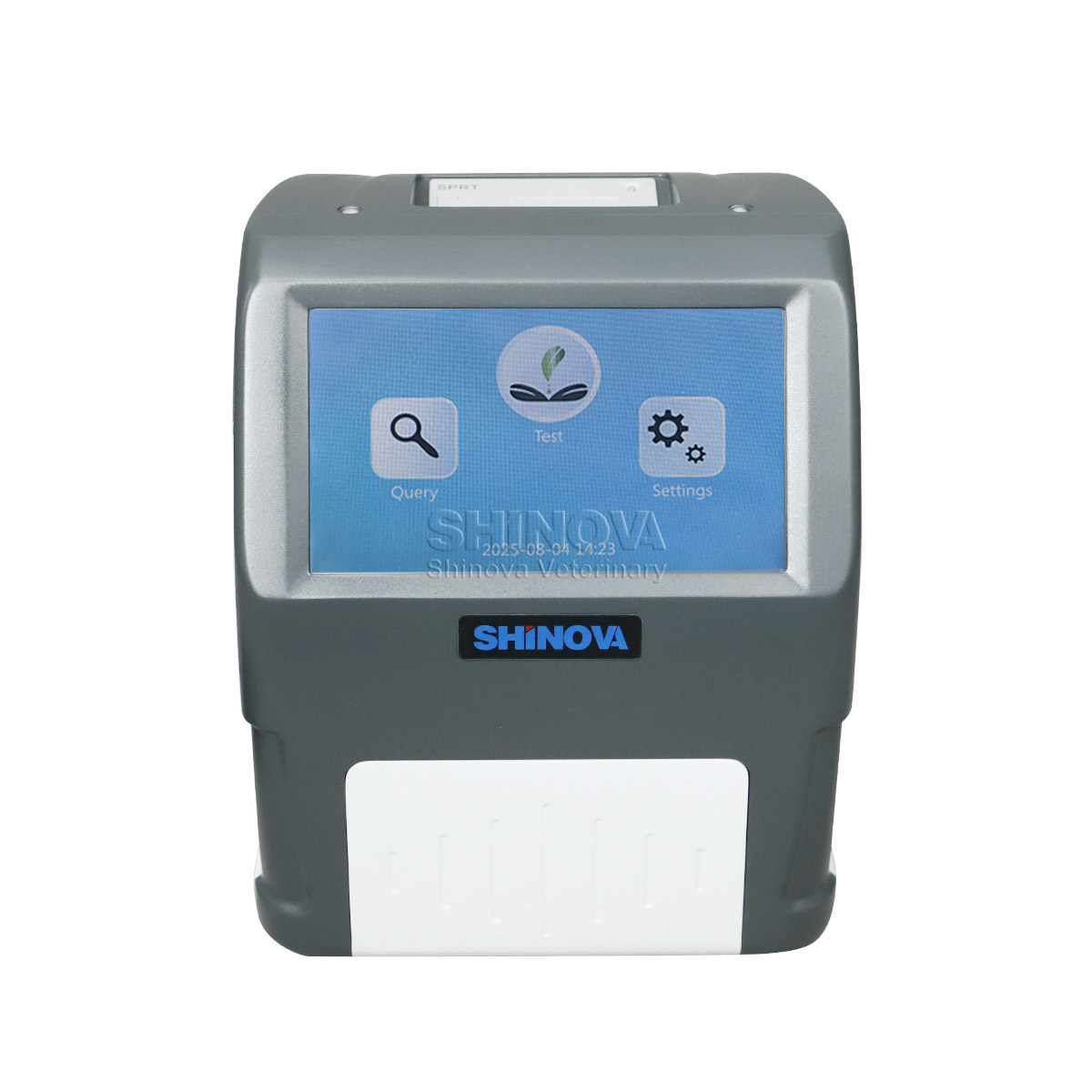

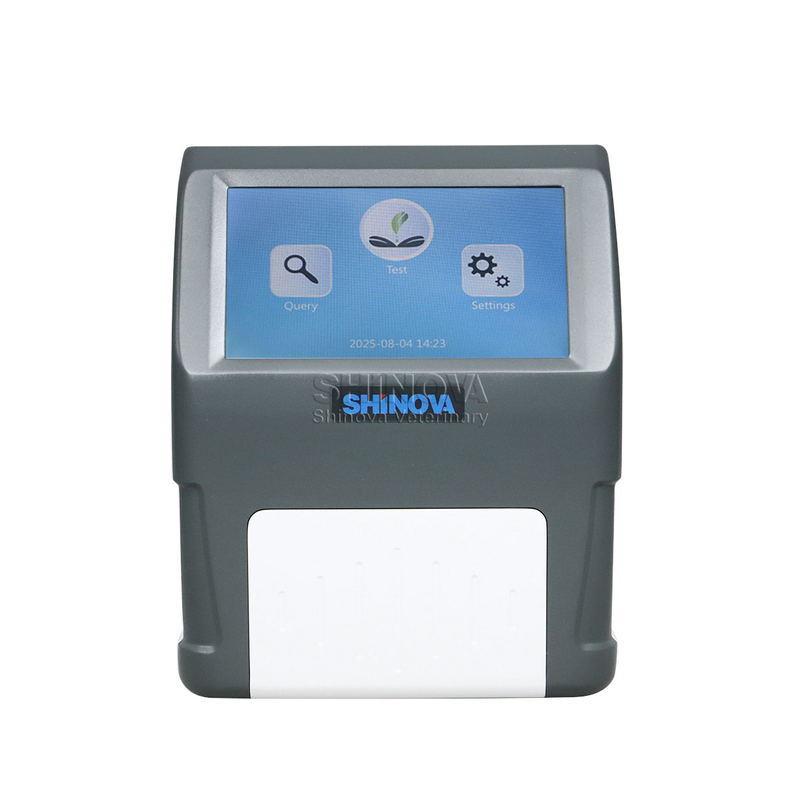

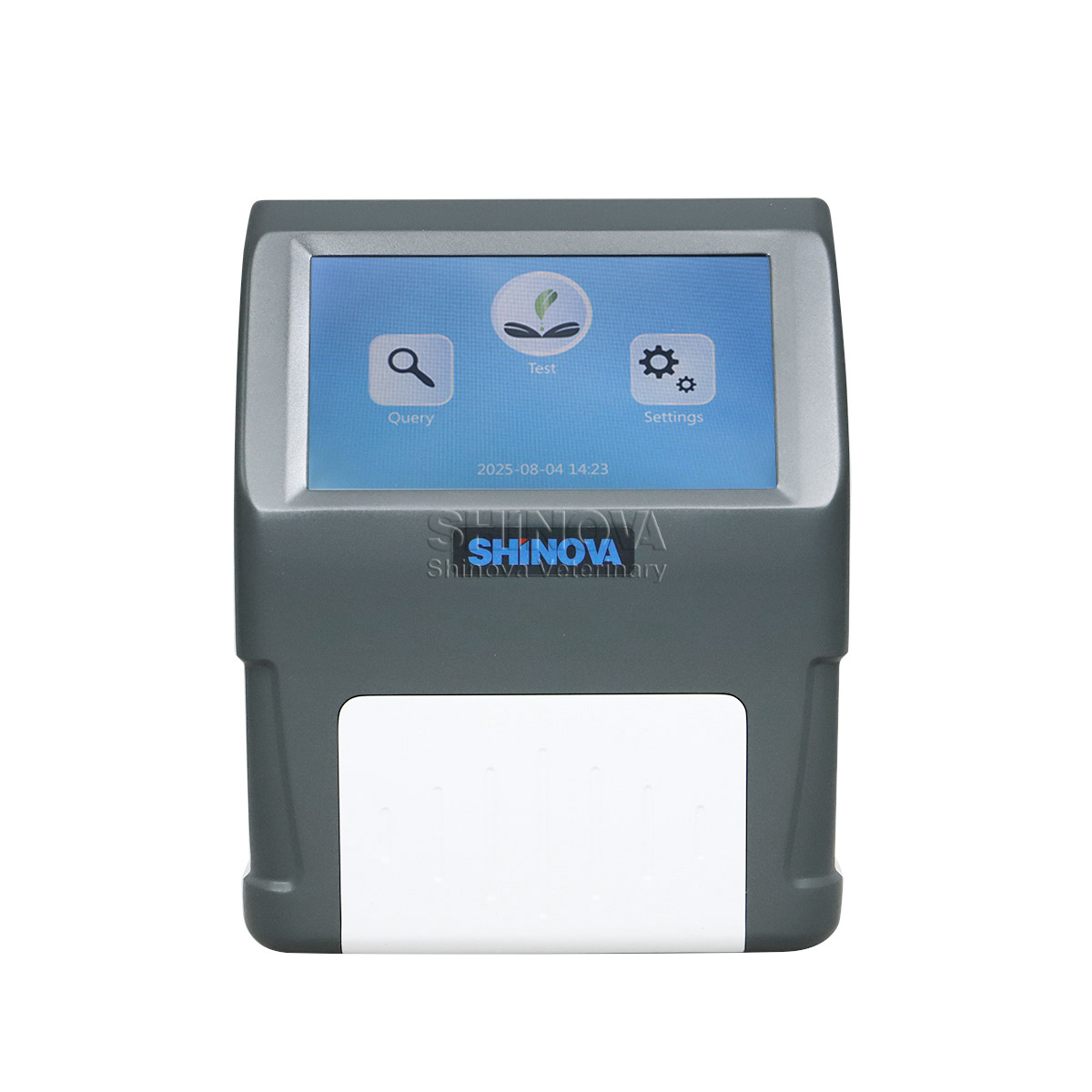

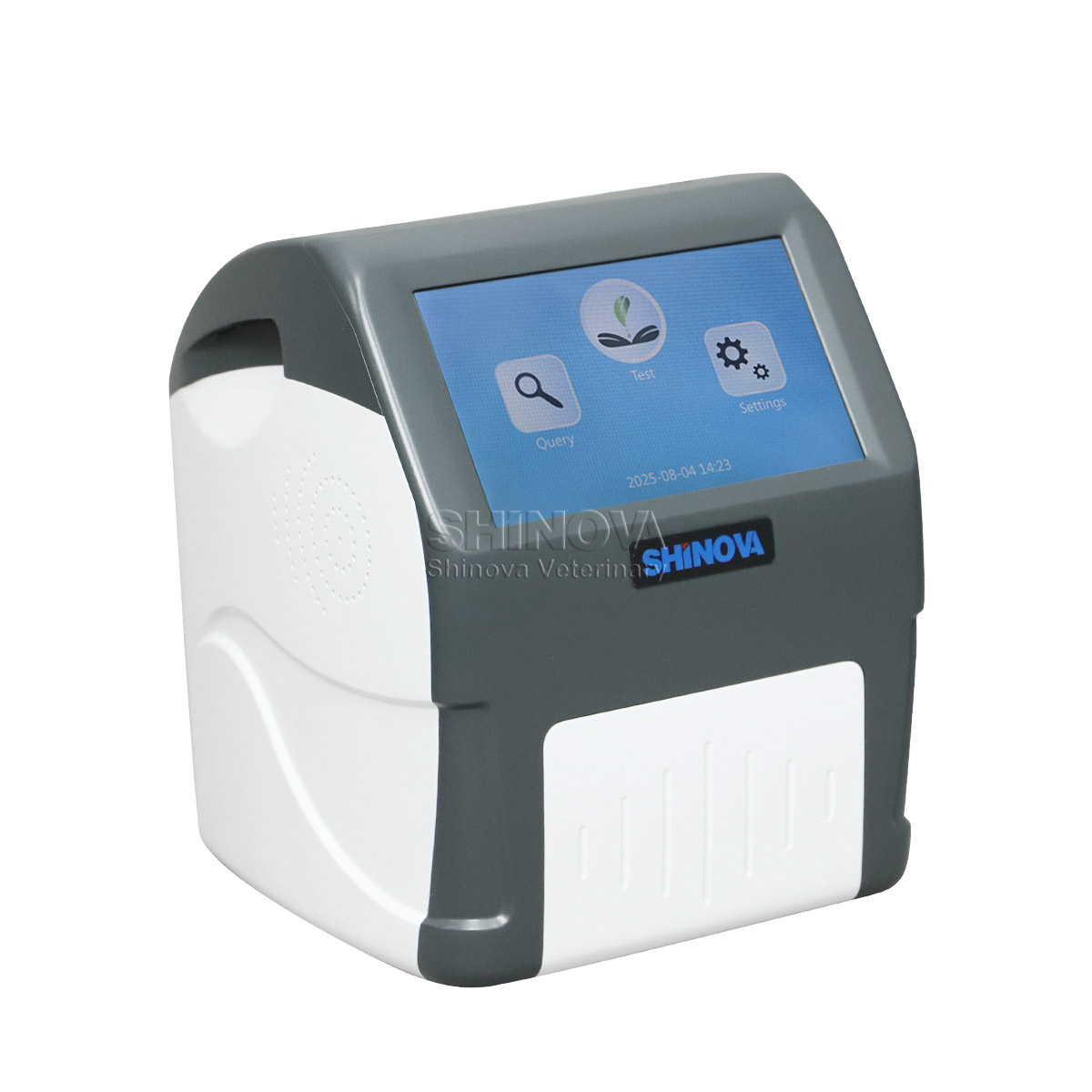

ChemoDisk 6 automatic biochemical analyzer can detect the biochemical indicators of dozens of animals, covering more than ten combinations of different types of rotors such as routine biochemical indicators, electrolyte indicators, immune and inflammatory indicators. It is the best instrument choice for veterinary clinical diagnosis and analysis.

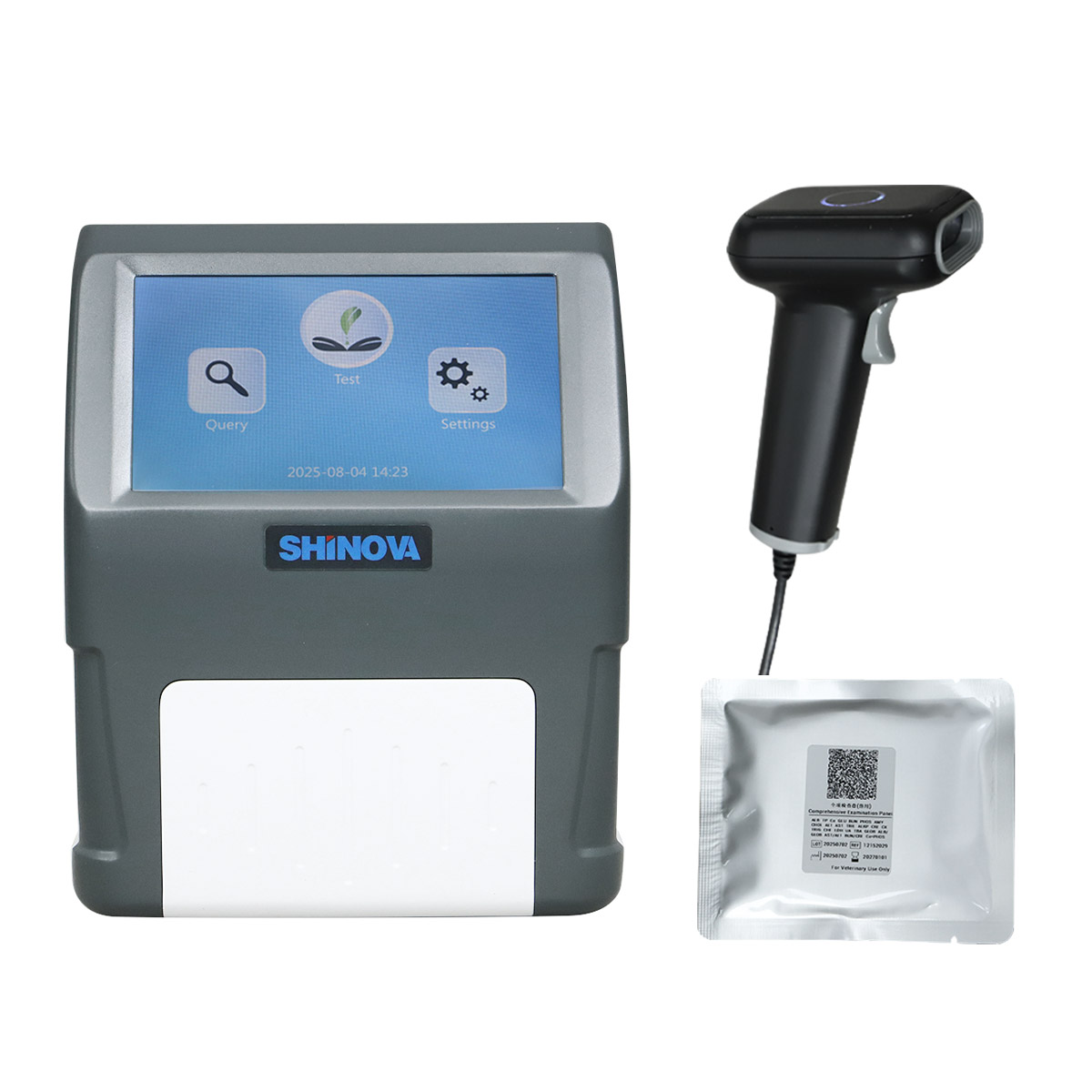

It’s rotor is an integrated biochemical rotor for animals based on microfluidic technology, and is used with the automatic biochemical analyzer.Through the precise and simplified operation of micro blood collection and one-step sample adding, the quality control system is equipped to ensure the accurate determination and reliability of the test results.
| Specifications
Item | Specifications |
Operation interface | 7-inch LCD touch screen, English language |
Sample type | anticoagulant whole blood, serum and plasma |
Sample capacity | 0.1ml (100μL) |
Calibration method | free of calibration, automatically reads factory calibration information |
Intelligent monitoring | built-in intelligent monitoring system to ensure the accuracy of each sample detection |
Detection time | about 10 minutes |
Reagent disk | with diluent and lyophilized reagent |
Temp accuracy | 37℃±0.1℃ |
Data capacity | at least 50000 patient data & quality control data |
Output interface | WiFi, 1 Ethernet port, 2 USB interfaces, supporting LIS system |

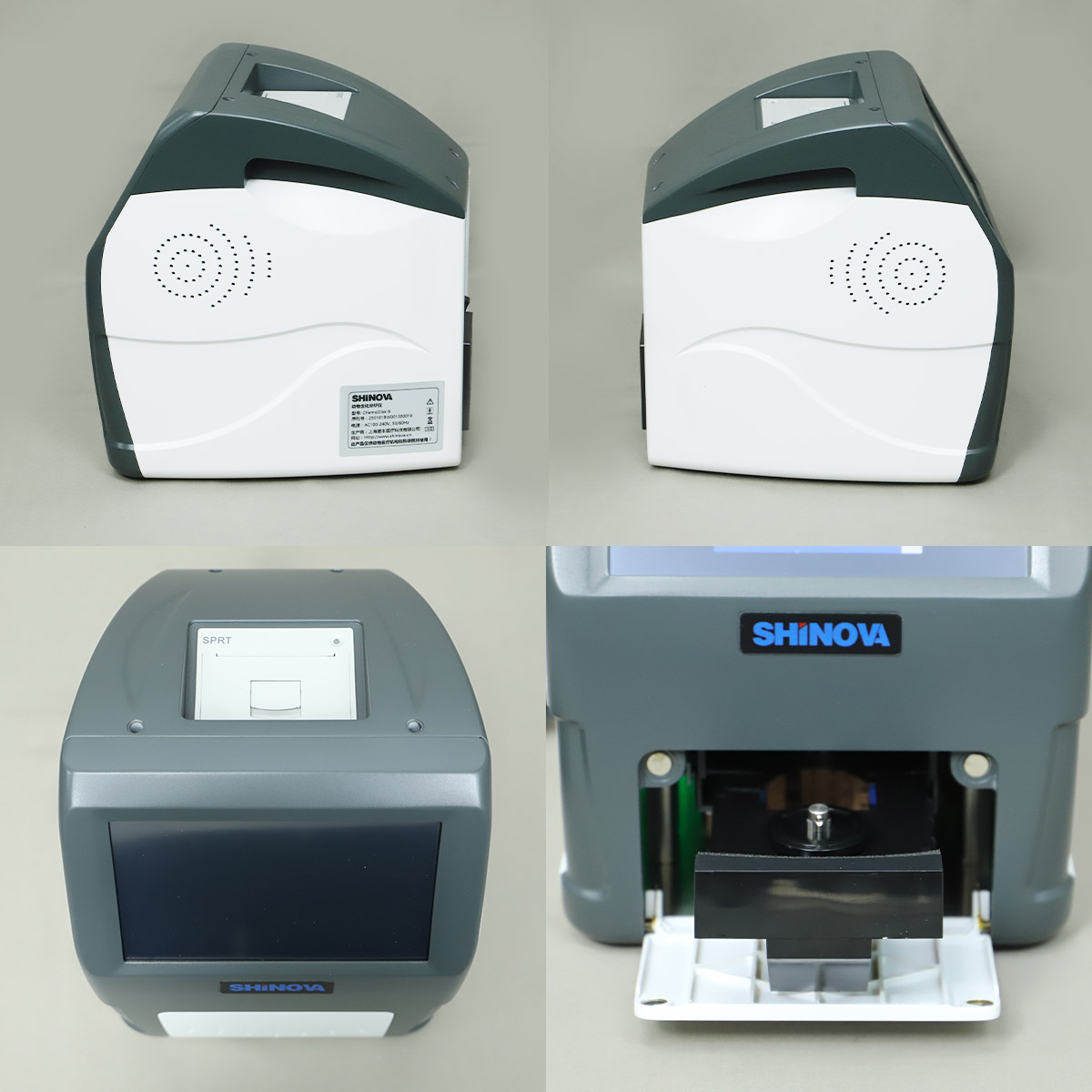

Printing | with thermal printer, standard report can be printed externally |
Weight | 4.3kg |
Reagent Panels:
1) Health Checking Panel (19 items): ALB, TP, Ca, GLU, BUN, PHOS, AMY CHOL, ALT, AST, TBIL, ALKP, CRE, CK, GLOB, ALB/GLOB, AST/ALT, BUN/CRE, Ca*PHOS
2) Liver and Renal Panel (14 items): TP, ALB, TBIL, ALT, AST, GGT, BUN, CRE, ALKP, UA, GLOB, ALB/GLOB, AST/ALT, BUN/CRE
3) Preanesthetic Panel (11 items): TP, GLU, BUN, AST, CK, ALT, LDH, ALKP, CRE, AST/ALT, BUN/CRE
4) Acute and Severe Cases Panel (12 items): CI, GLU, BUN, K, ALT, CO2, CRE, Na, AMY, BUN/CRE, Na/K, AG
5) Electrolytes Plus Panel (11 items): K, Na, CI, CO2, Ca, Mg, PHOS, pH Na/K, AG ,Ca*PHOS
6) Liver Function Panel (12 items): TP, ALB, TBIL, ALT, AST, GGT, DBIL, ALKP, GLOB, IBIL, ALB/GLOB, AST/ALT
7) Renal Function Panel (9 items): ALB, BUN, CRE, Ca, PHOS, UA, CO2, BUN/CRE, Ca*PHOS
8) Basic Examination Panel (10 items): ALB, TP, GLU, BUN, ALT, ALKP, CRE, GLOB, ALB/GLOB, BUN/CRE
9) Comprehensive Examination Panel (24 items): ALB, TP, Ca, GLU, BUN, PHOS, AMY CHOL, ALT, AST, TBIL, ALKP, CRE, CK, TRIG, CHE, LDH, UA, TBA, GLOB, ALB/GLOB, AST/ALT, BUN/CRE, Ca*PHOS
10) Canine Inflammation Panel (9 items): BUN, CRE, PHOS, TBIL, AST, AMY, GGT, CRP, BUN/CRE
11) Feline Inflammation Panel (8 items): TP, ALB, AMY, GGT, TBIL, SAA, GLOB, ALB/GLOB
12) Big Animals Panel (13 items): TP, ALB, GLOB, ALB/GLOB, AST, GGT, ALKP, BUN, CK, PHOS, Mg, Ca, Ca*PHOS
13) Avian/ Reptilian Panel (19 items): TP, ALB, AST, TBA, Ca, CK, GLU, TRIG, K, Na, PHOS, UA, Mg, LDH, CHOL, GLOB, ALB/GLOB, Na/K, Ca*PHOS
14) Diabetes Examination Panel (14 items): GLU, FRU, TRIG, CHOL, ALT, AST, TP, ALB, BUN, CRE, GLOB, ALB/GLOB, AST/ALT, BUN/CRE
