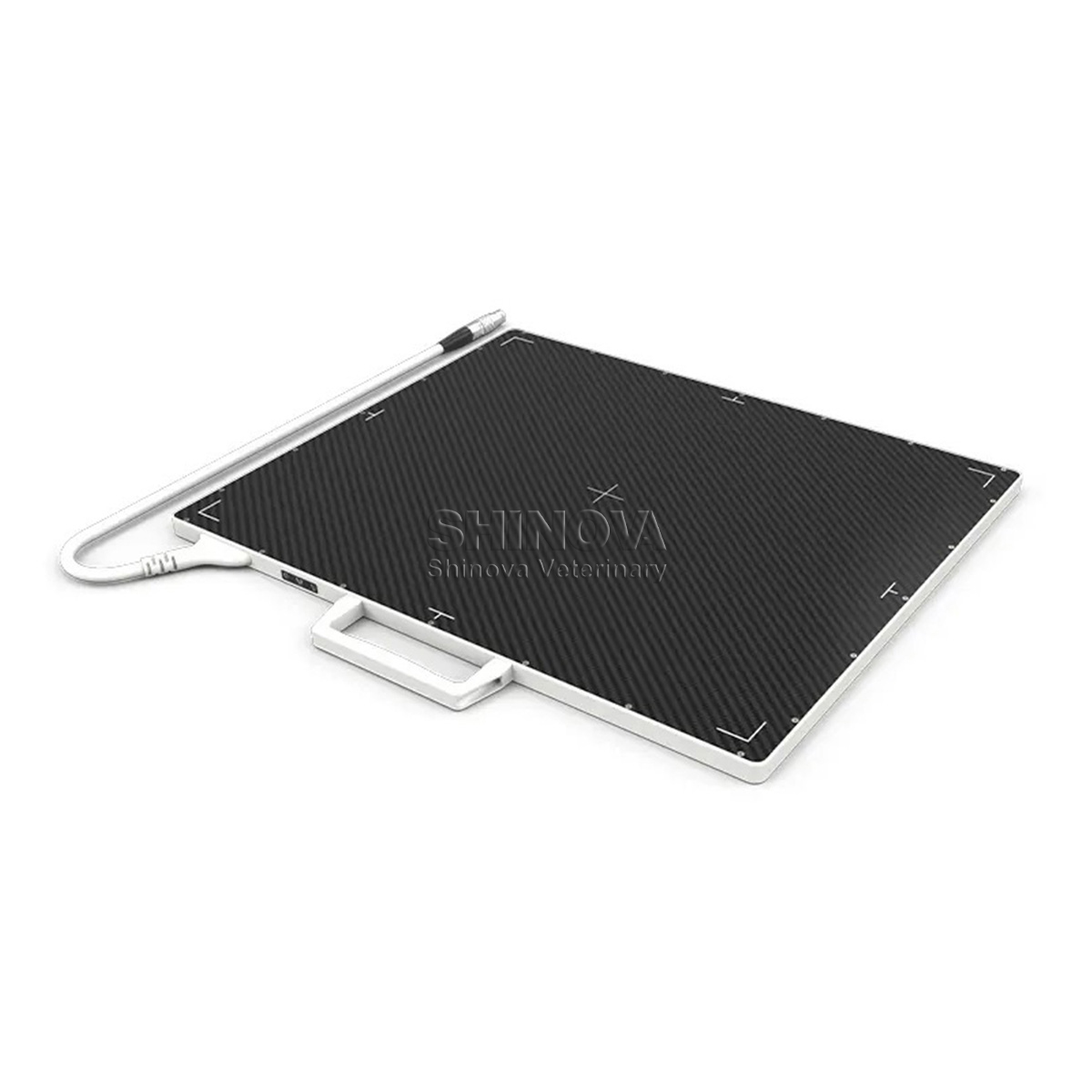

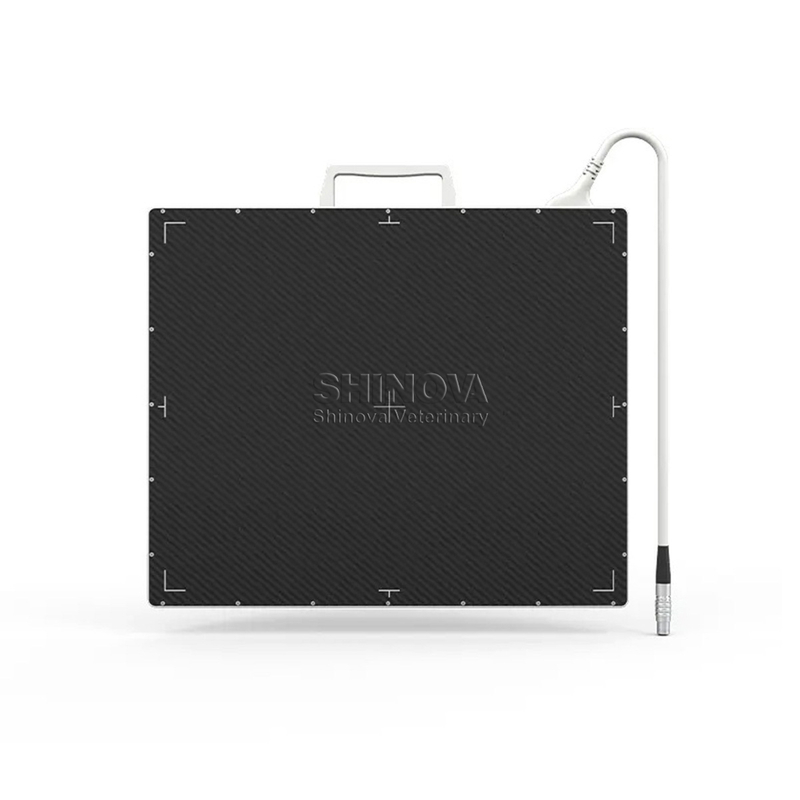

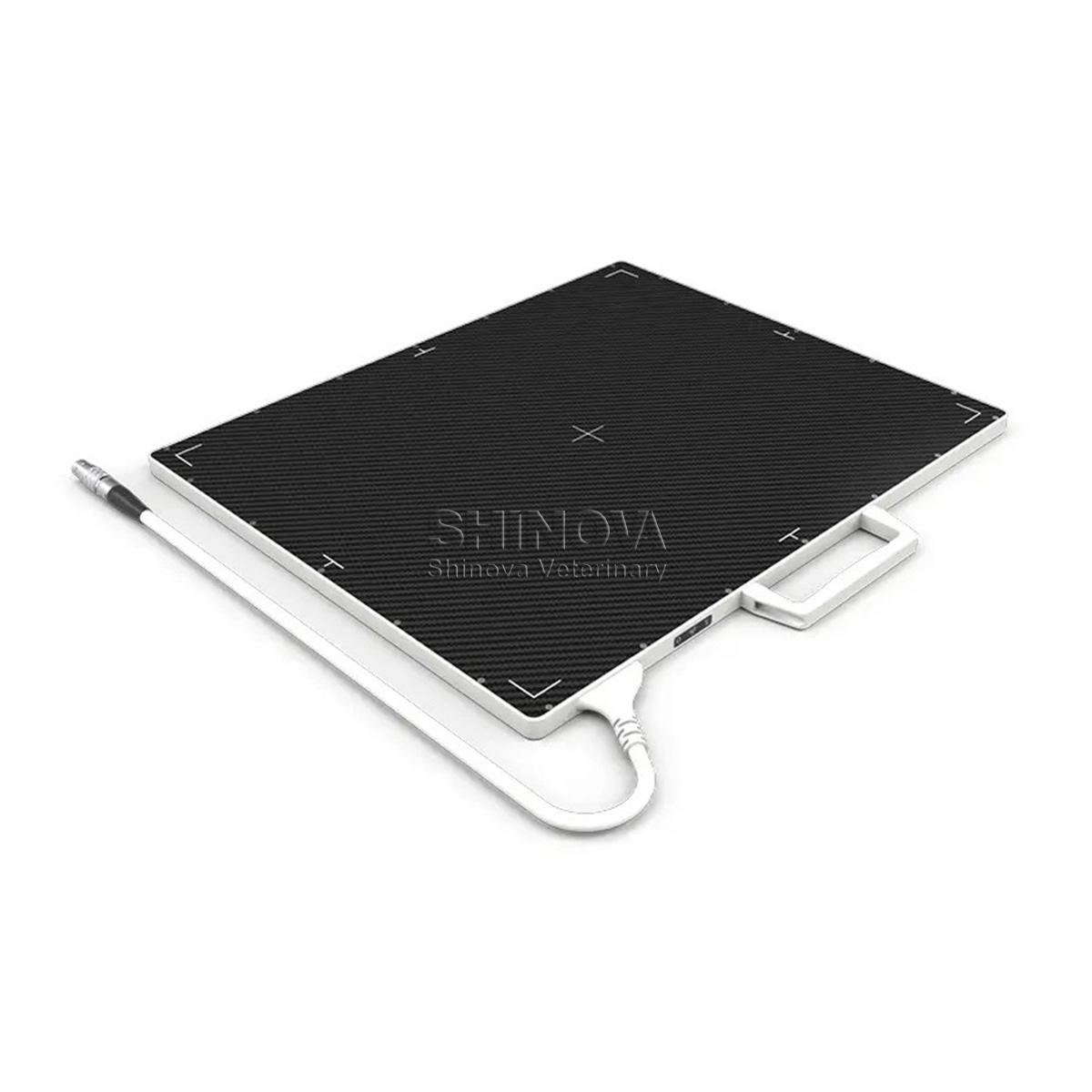

| Features
140 μm pixel pitch.
Superior image quality.
Human bionic structural design.
Direct deposition Cesium lodide (Csl) Scintillator effectively reduces light scattering between pixels.
| Specifications
SensOr: a-Si
Scintillator: Csl / GOS
Active area: 350x 427 mm
Pixel matrix: 2500 x3052
Pixel pitch: 140 μm
AD conversion: 16 bits
Data Interface: gigabit ethernet
Exposure control: prepare / ready / X Ray on(edge or level)
Image acquisition time: ≤1s
Operating system: Windows7 / Windows10 0s 32 bits or 64 bits
Resolution: 3.5 lp/mm
Energy range: 40-160 KV
Dynamic range: v82 dB
DQE (2uGy): 64%6 @ (0 lp/mm)
41% @ (1 lp/mm)
28% @ (2 lp/mm)
Dimension(H x W x D): 460 x 383 x15 mm
Weight: 3.8kg
Sensor protection material: carbon fiber
Housing material: aluminum alloy
Temperature range: 10~35°C(operating); -10~50°C(storage)
Humidity: 30~70%6 RH (non-condensing)
Vibration: IEC 60068-2-64 0peration: 1G, 5-500Hz
Shock: IEC 60068-2-27 0peration: 2G, duration 11ms
Dust and water resistant: IP41
Supply: 100~240 VAC
Frequency: 50/60 Hz
Consumption: 11 W
