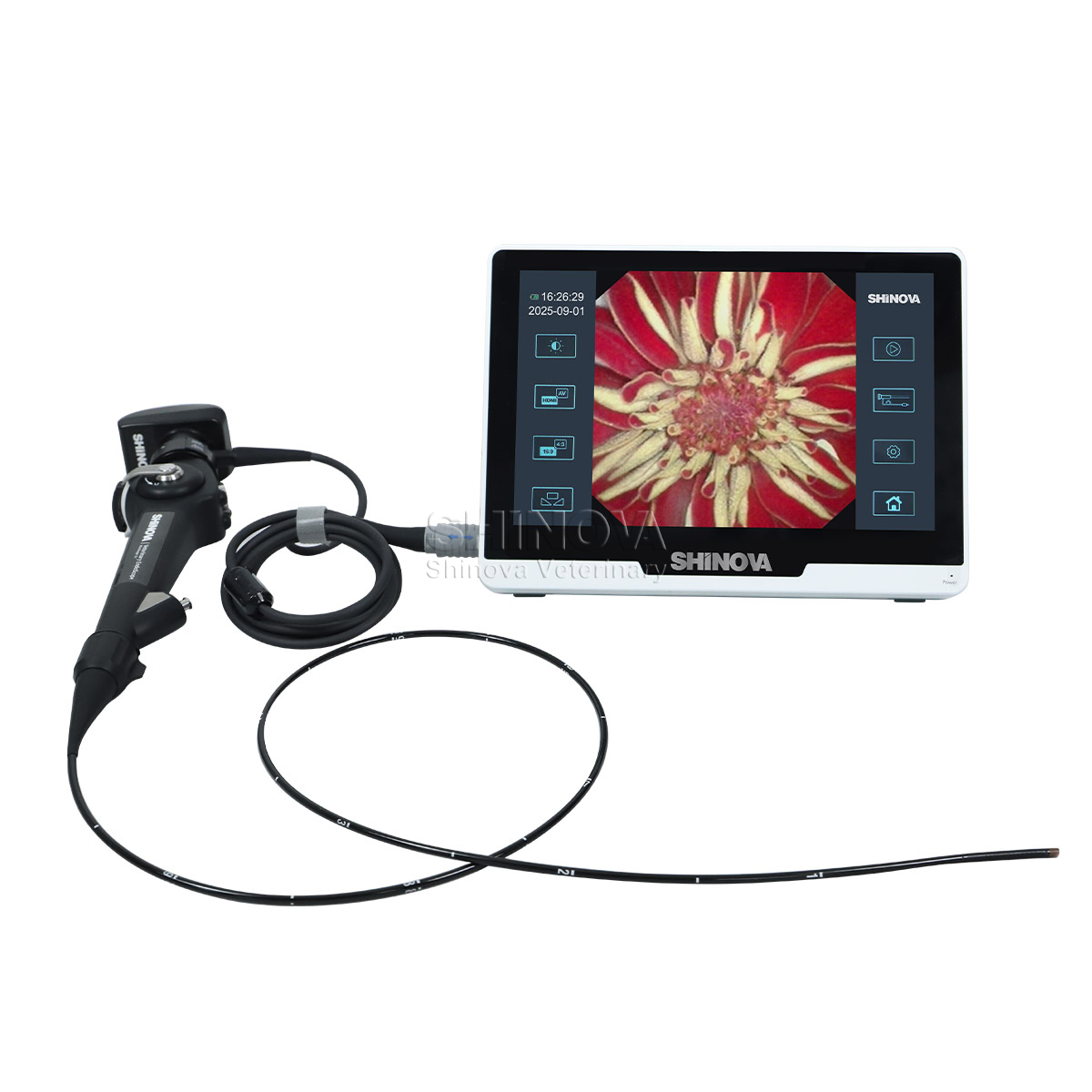

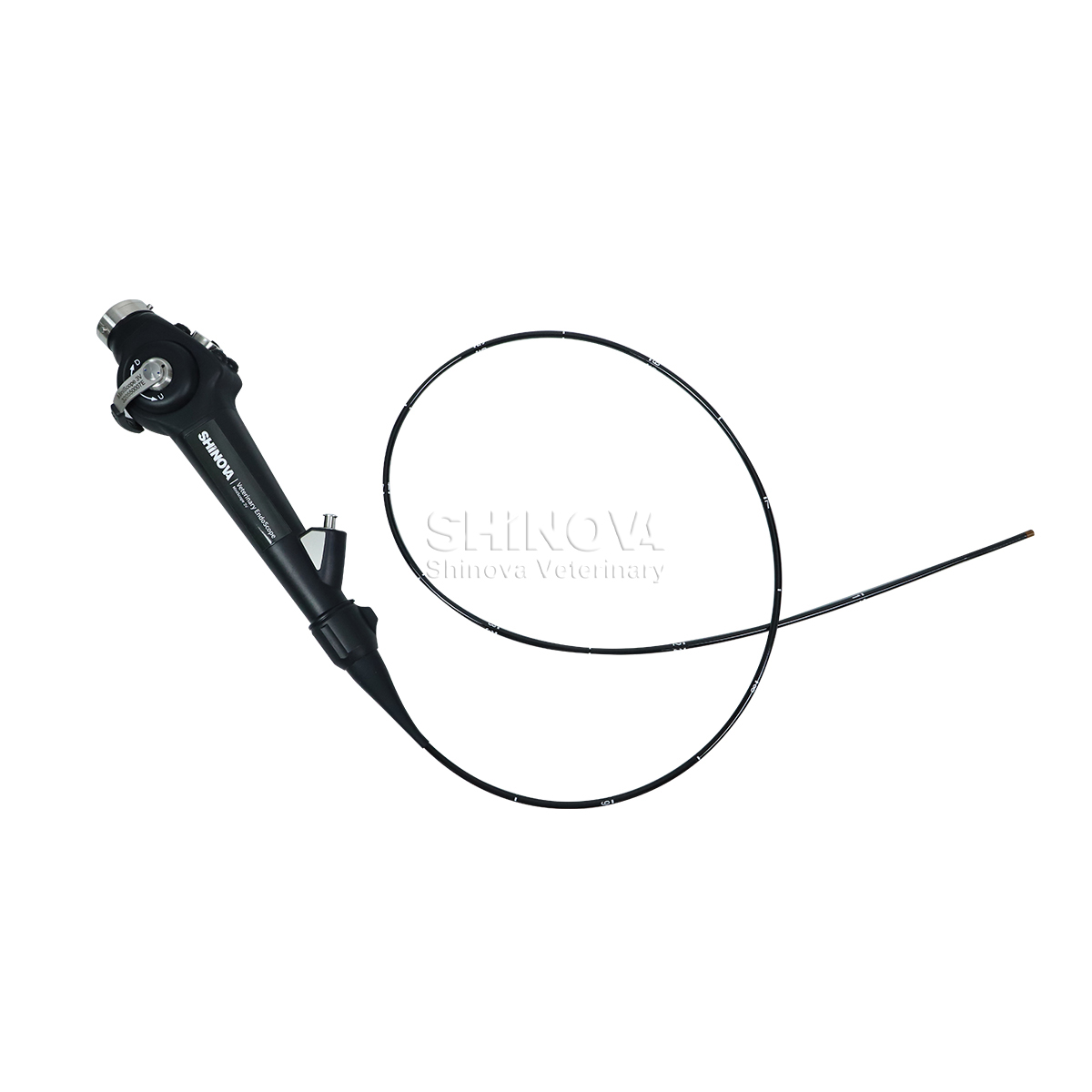

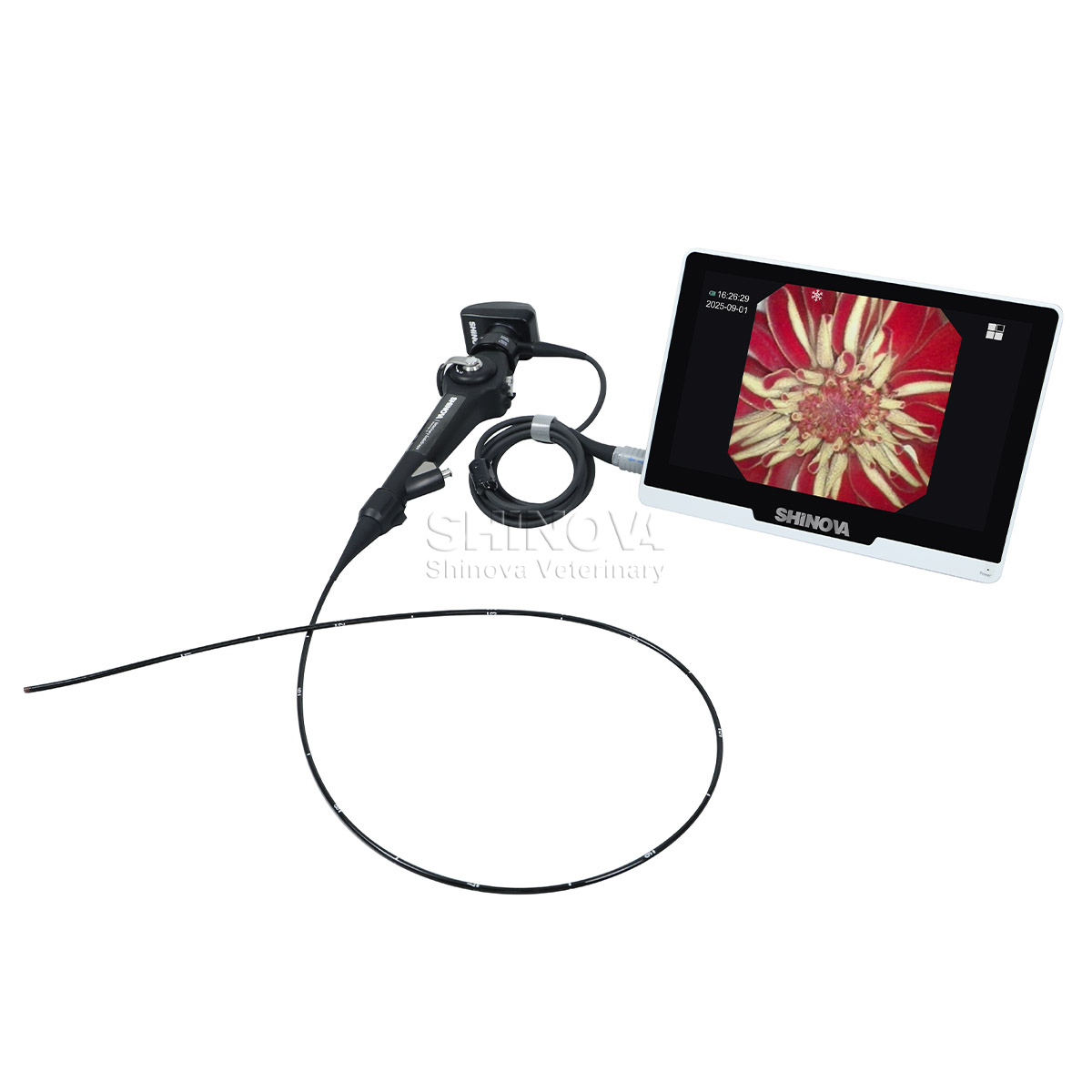

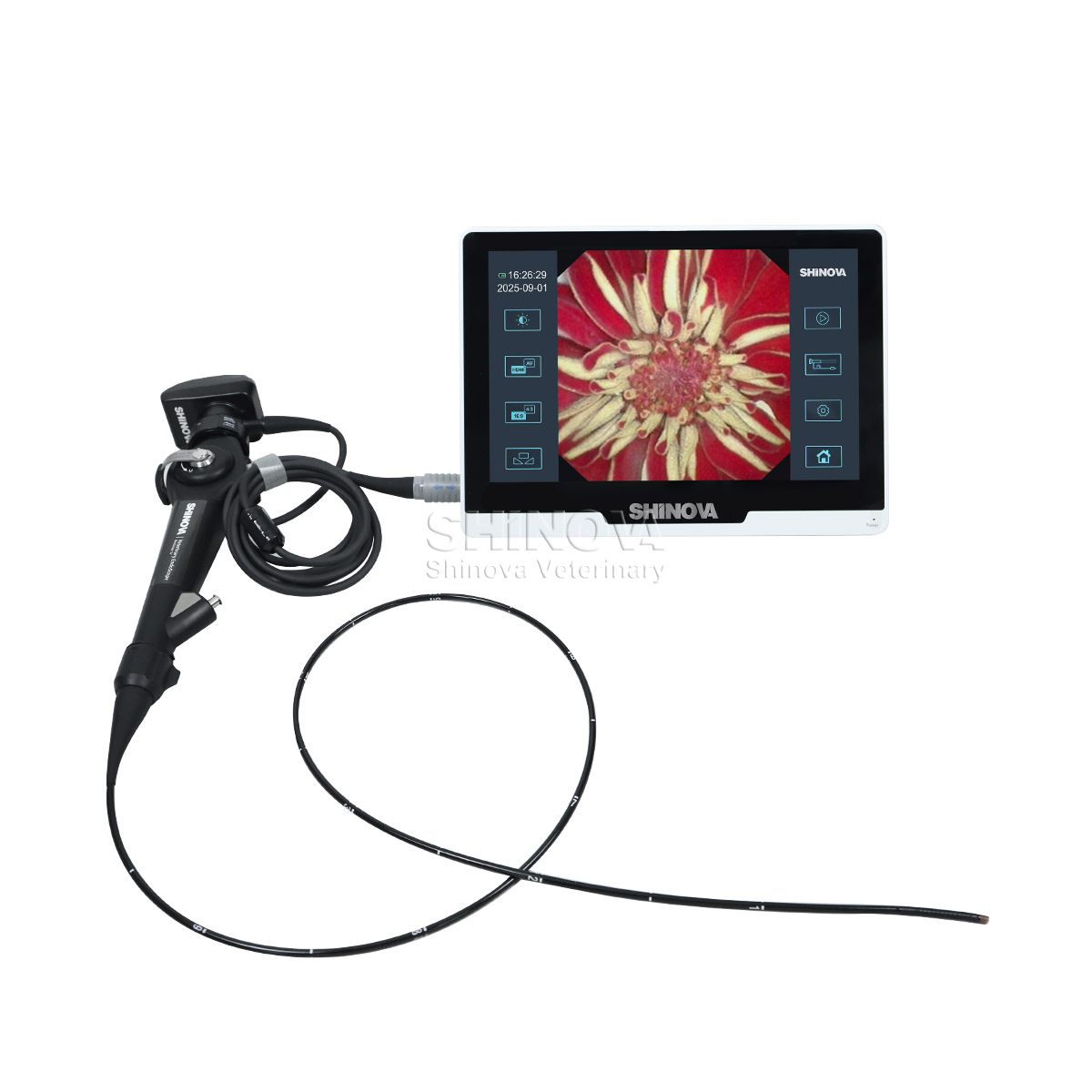

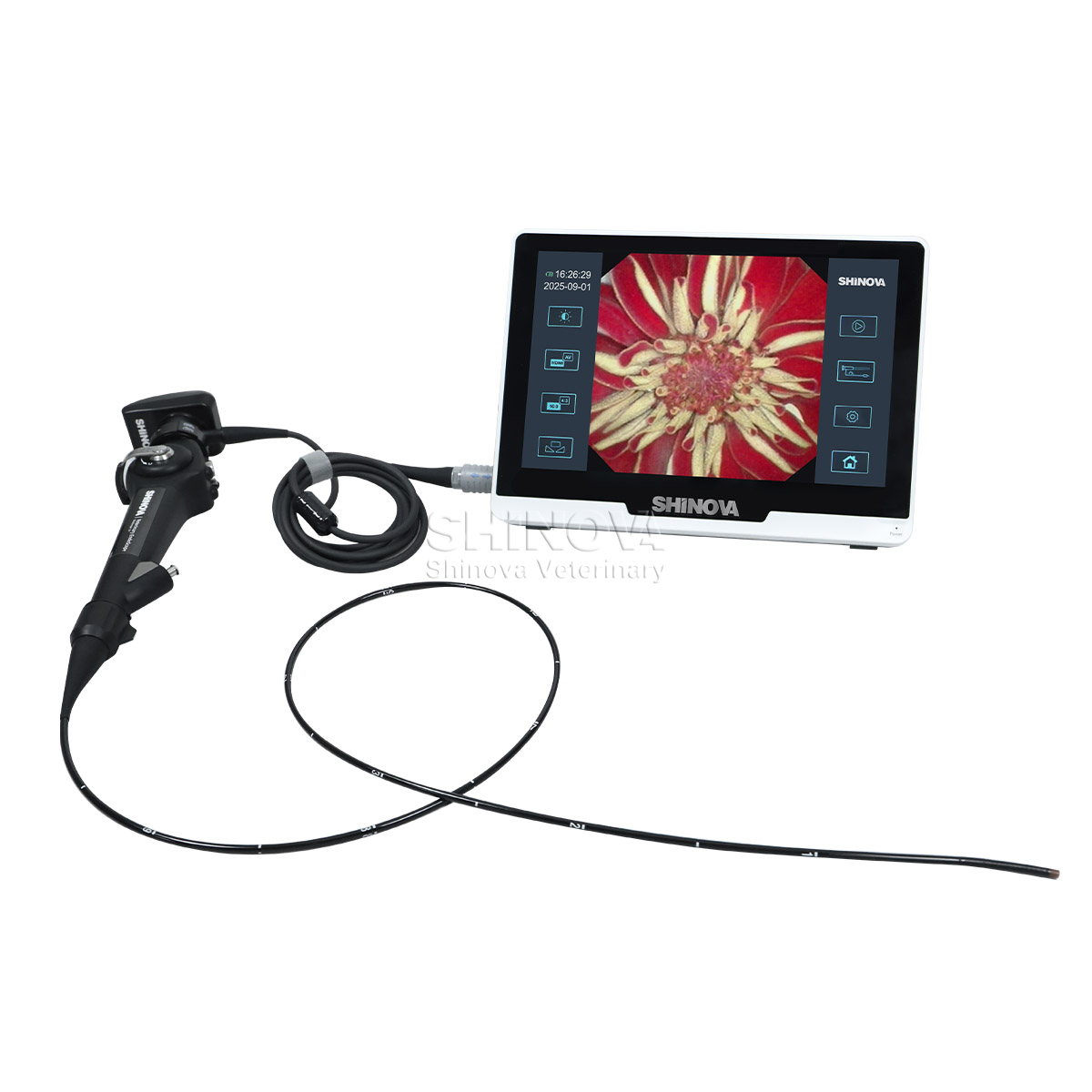

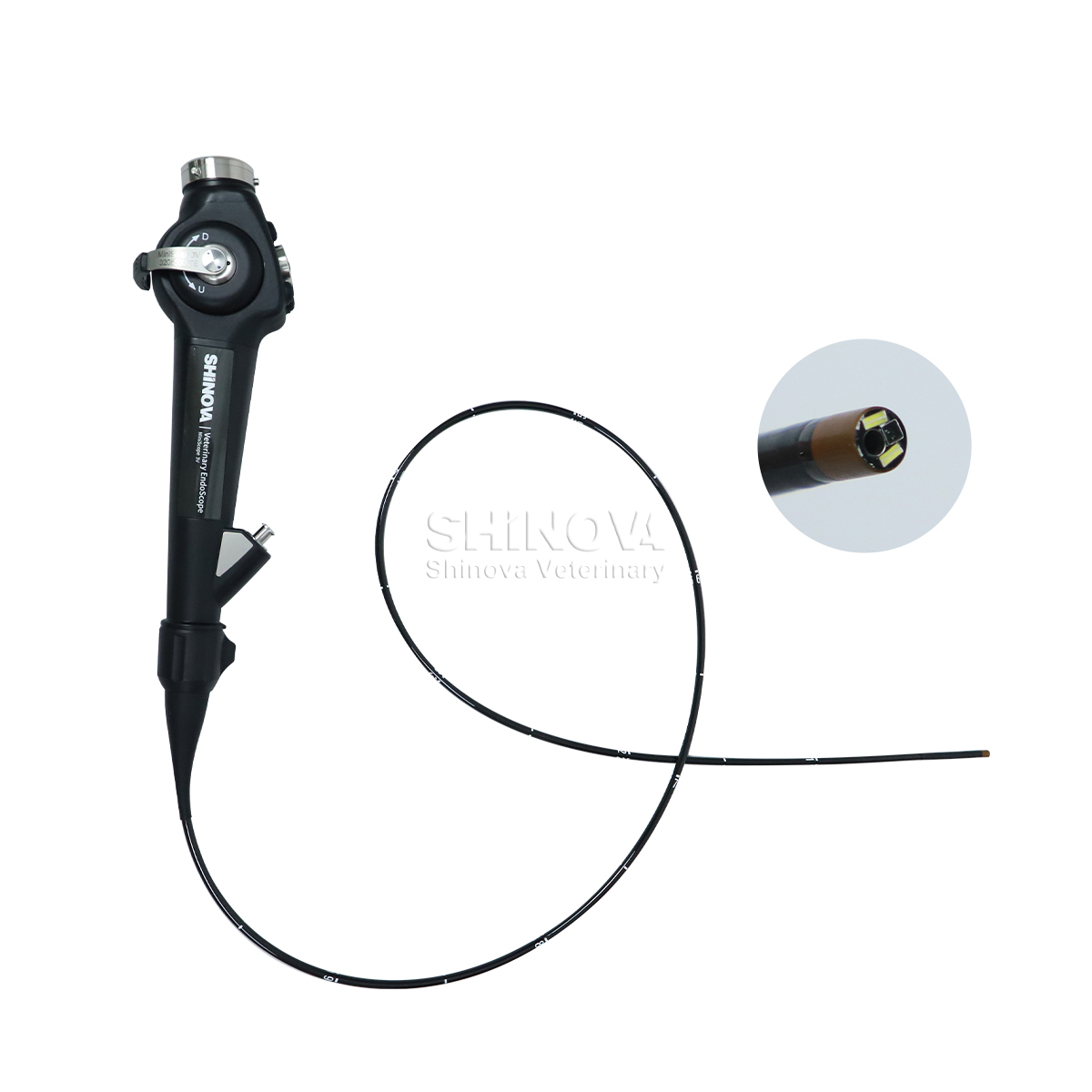

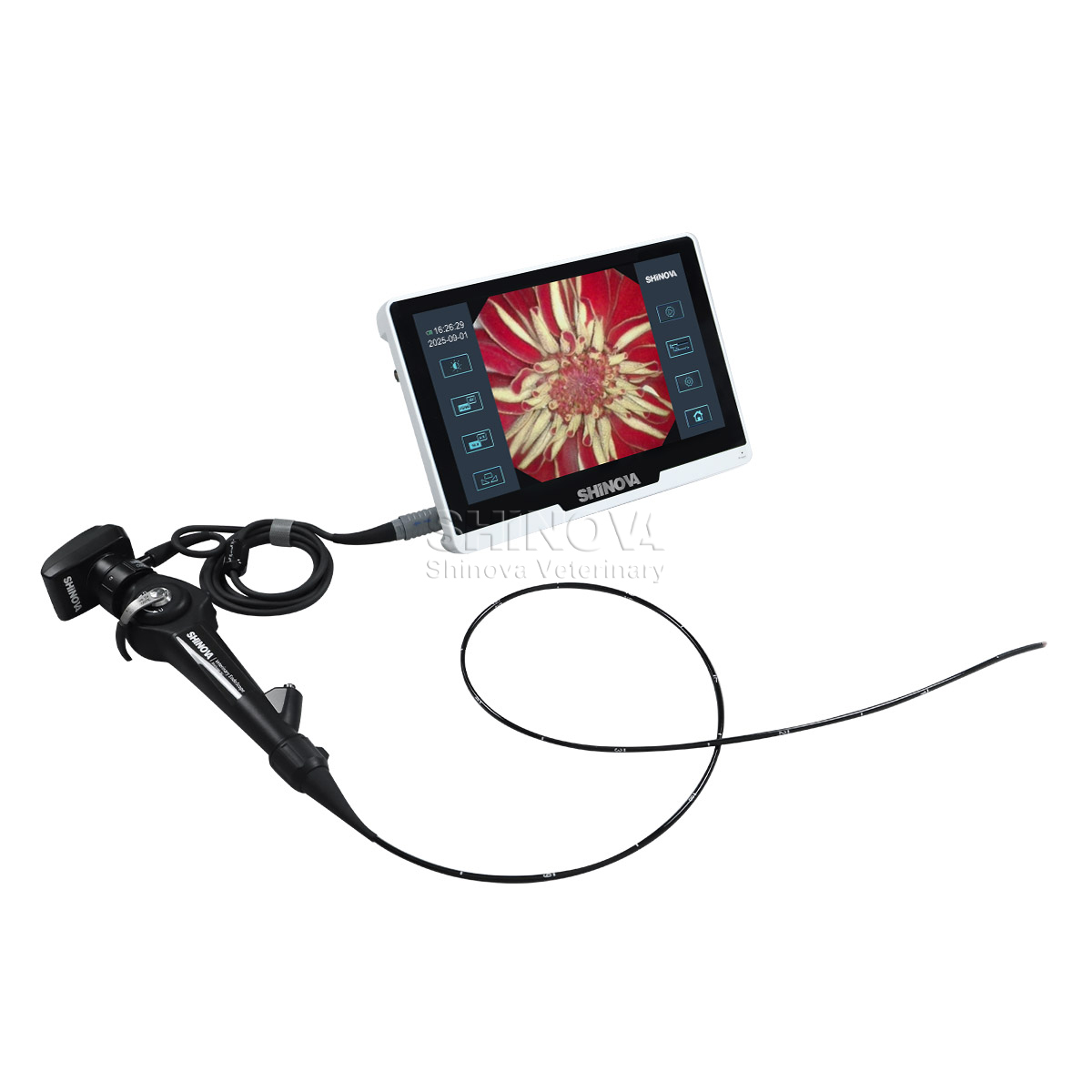

Portable Veterinary Endoscope(3.8mm)

|  Features

• 10-inch high-definition image processor with multi-function of display, recording, storage and light source

• High-resolution CMOS sensor performs clear image, real-time display and no transfer delay

• Durable LED light source

• Multi-function handle buttons such as photo/video/freeze/zoom, convenient for veterinarian operation by one hand

• Four-directions observations by up/down bending and left/right rotating

• Video adapter cable is rotatable by 180°, so the veterinarians operate it without any blockings




Wider Veterinary Applications

MiniScope 2V/3V/4V: Bronchoscopy, rhinoscopy, gastroscopy, urethroscopy, cystoscopy, rectoscopy, vaginoscopy and foreign body removal for dogs, cats, mice or exotic animals

MiniScope 4H/5HG: Bronchoscopy and gastroscopy for dogs, bronchoscopy for horses, cattle or other large animals.

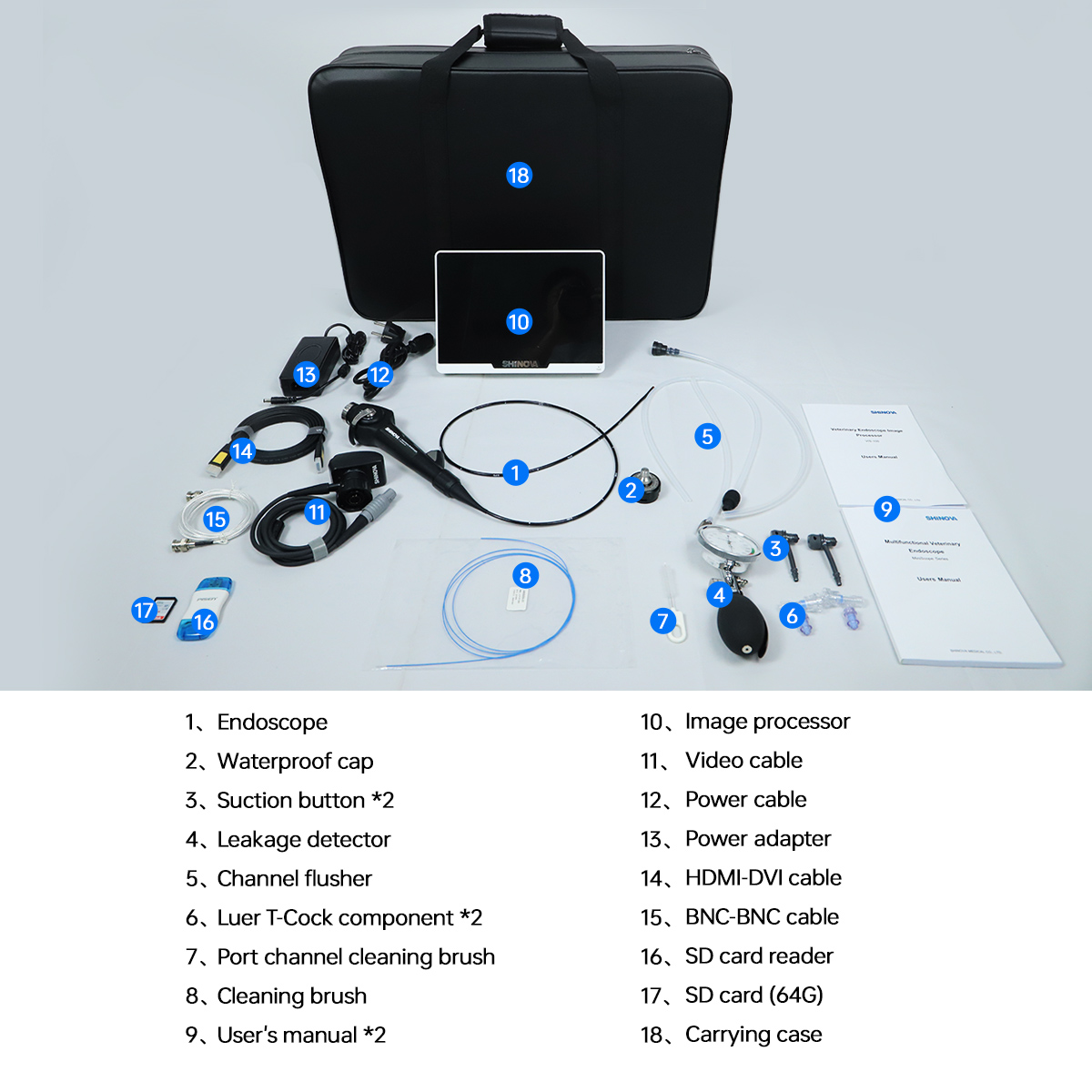

Accessories diagram

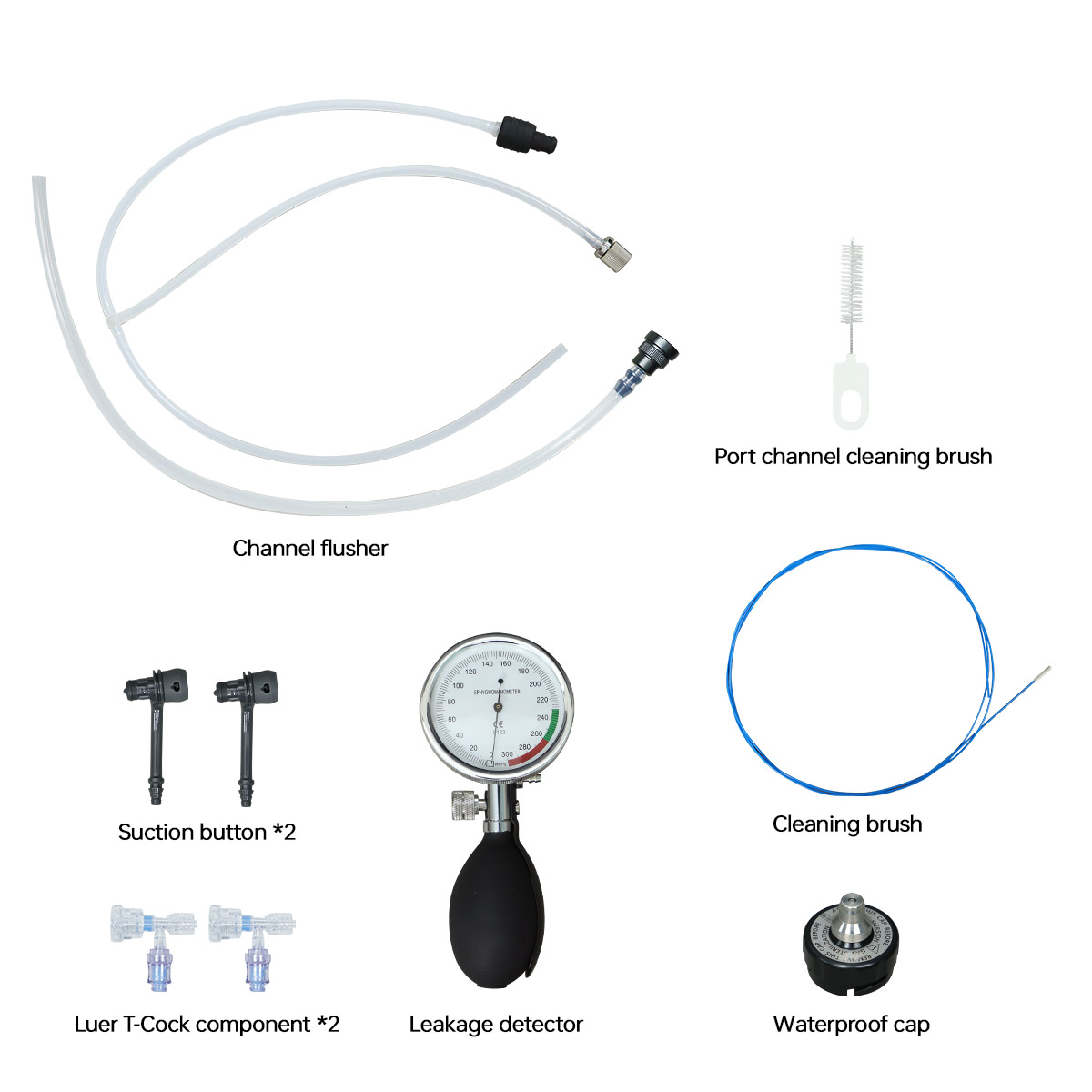

Cleaning set

|  Specifications

Model	Distal-end   Diameter	Working Length	Working Channel	View Angle	View Depth	Bending Range	Rotation Range
MiniScope 2V	2.8mm	610mm	1.2mm	120°	3-200mm	210°(U),   130°(D)	120°(R),   120°(L)
MiniScope   3V	3.8mm	1000mm	1.5mm	120°	3-200mm	180°(U), 130°(D)	120°(R), 120°(L)
MiniScope 4H (HD 720P)	4.8mm	1000mm	2.0mm	120°	3-200mm	180°(U),   130°(D)	120°(R),   120°(L)
MiniScope 5HG (HD 720P)	5.8mm	1500mm	2.8mm	120°	3-200mm	180°(U),   130°(D)	120°(R),   120°(L)

|  Standard Configuration

1、Endoscope	10、Image processor
2、Waterproof cap	11、Video cable
3、Suction button *2	12、Power cable
4、Leakage detector	13、Power adapter
5、Channel flusher	15、HDMI-DVI cable
6、Luer T-Cock component *2	15、BNC-BNC cable
7、Port channel cleaning brush	16、SD card reader
8、Cleaning brush	17、SD card (64G)
9、User's manual *2	18、Carrying case

|  Optional configuration

（1）Disposable grasping forceps

（2）Disposable biopsy forceps

（3）Disposable spray catheter

（4）Disposable electric snare

（5）Disposable electric snare

（6）Disposable stone basket

（7）Endoscope trolley
