Multi-function buttons
4-inch touch screen
High definition 720P
| Specifications

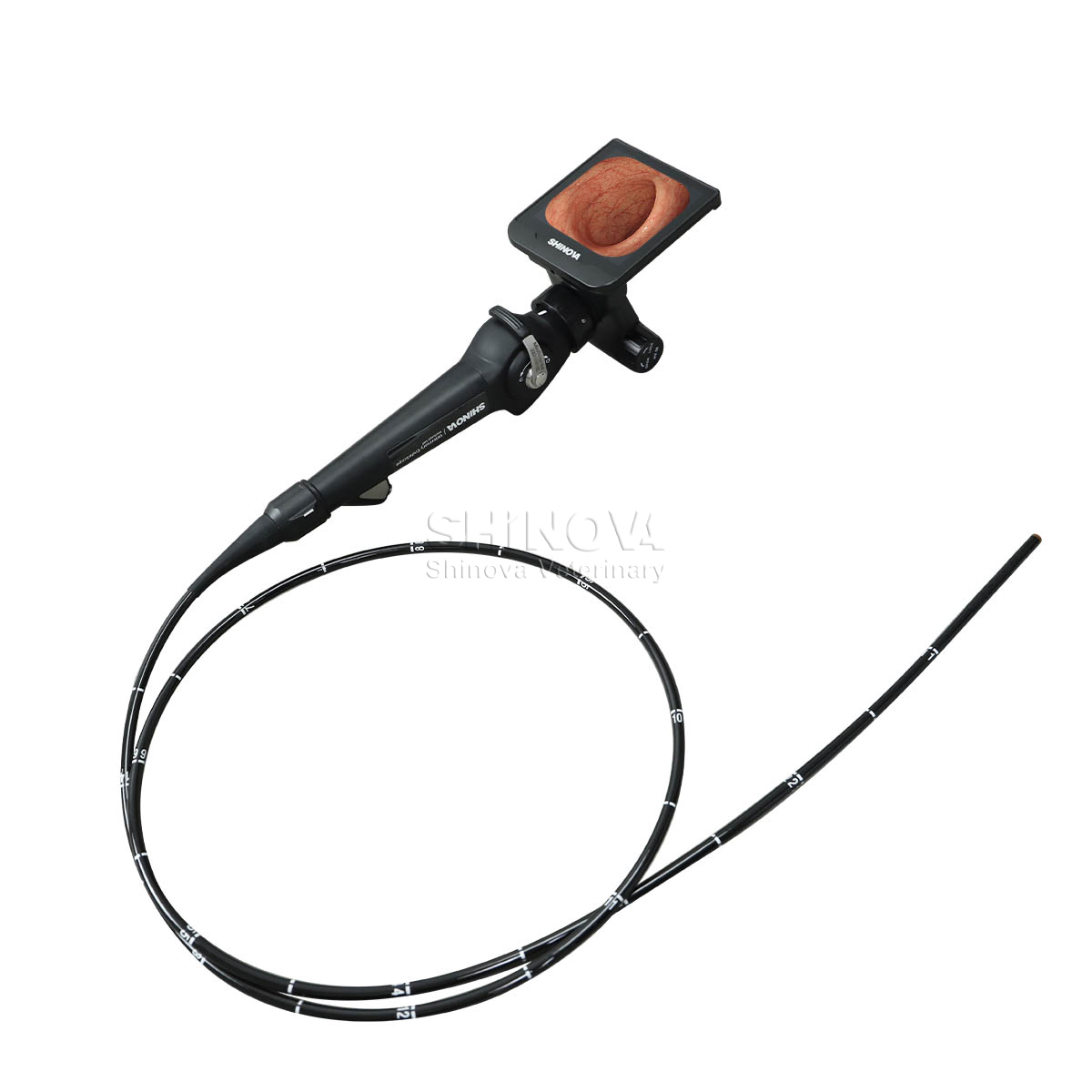

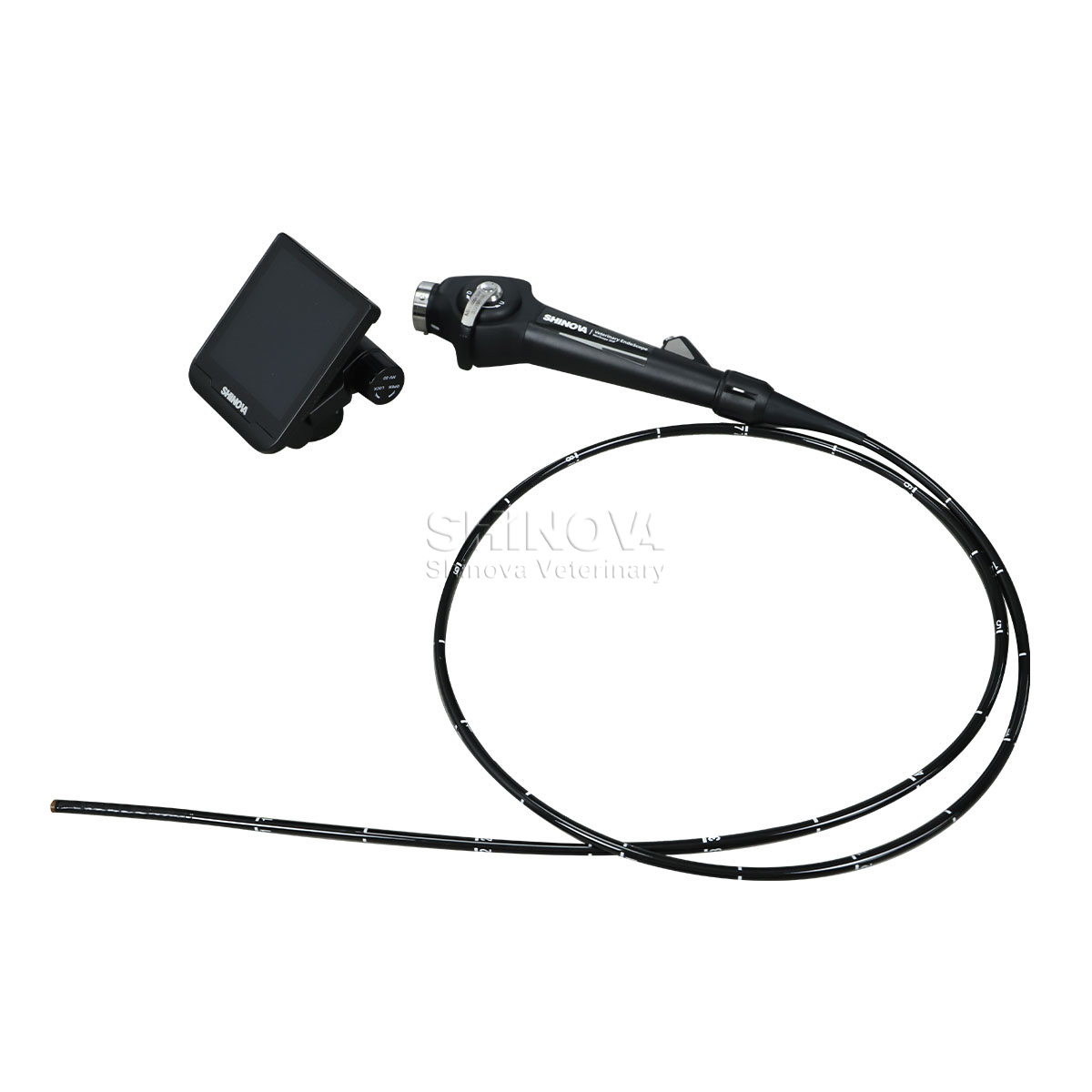

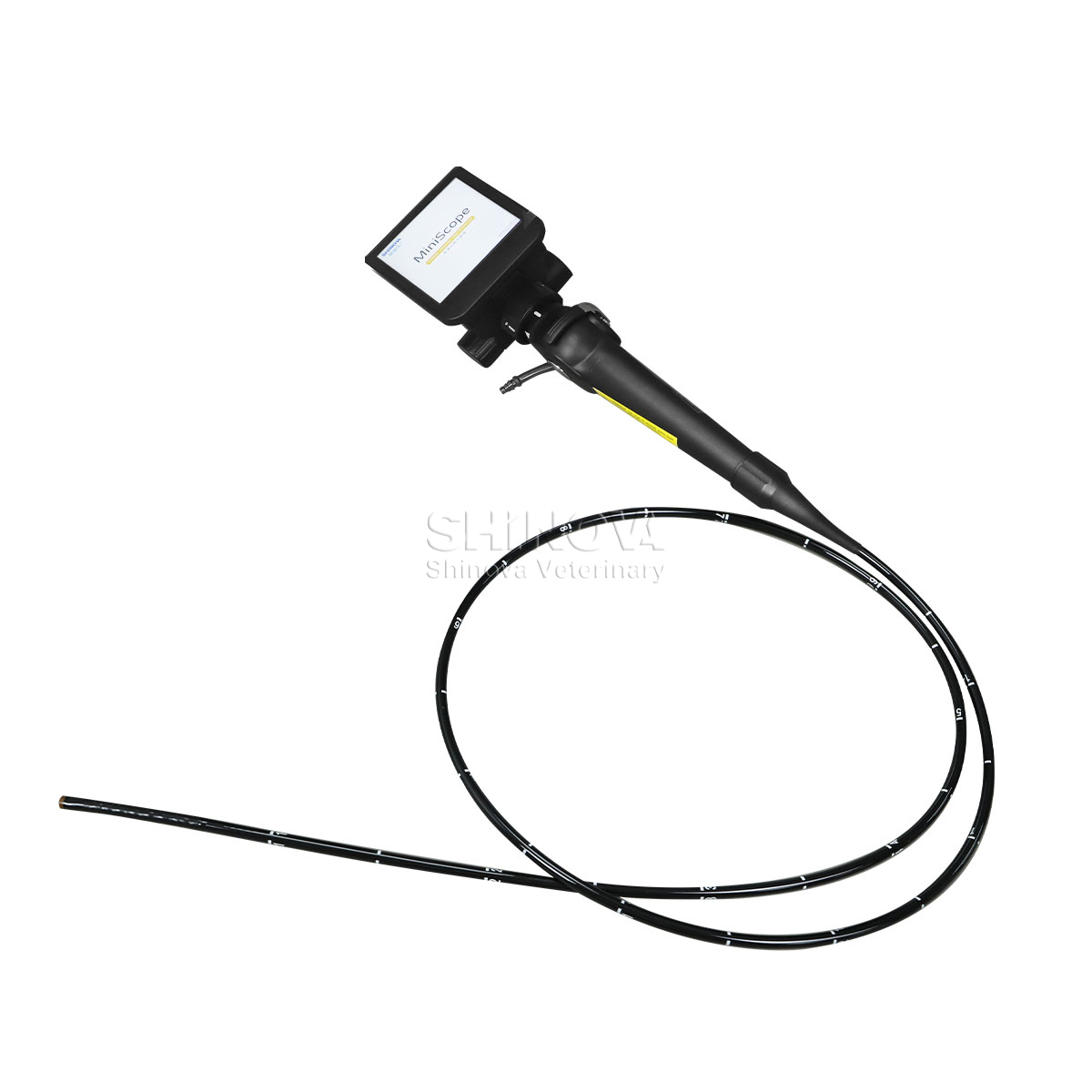

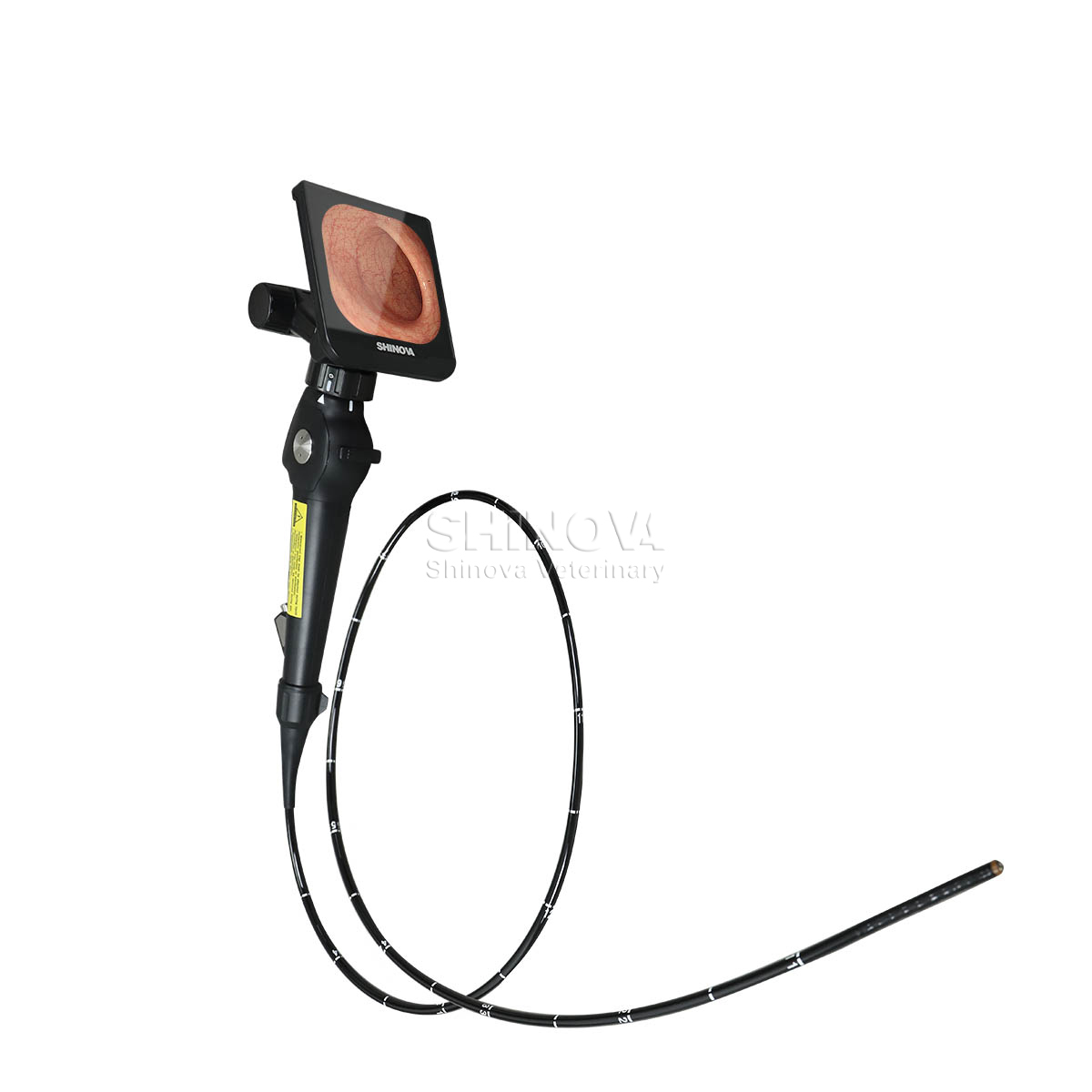

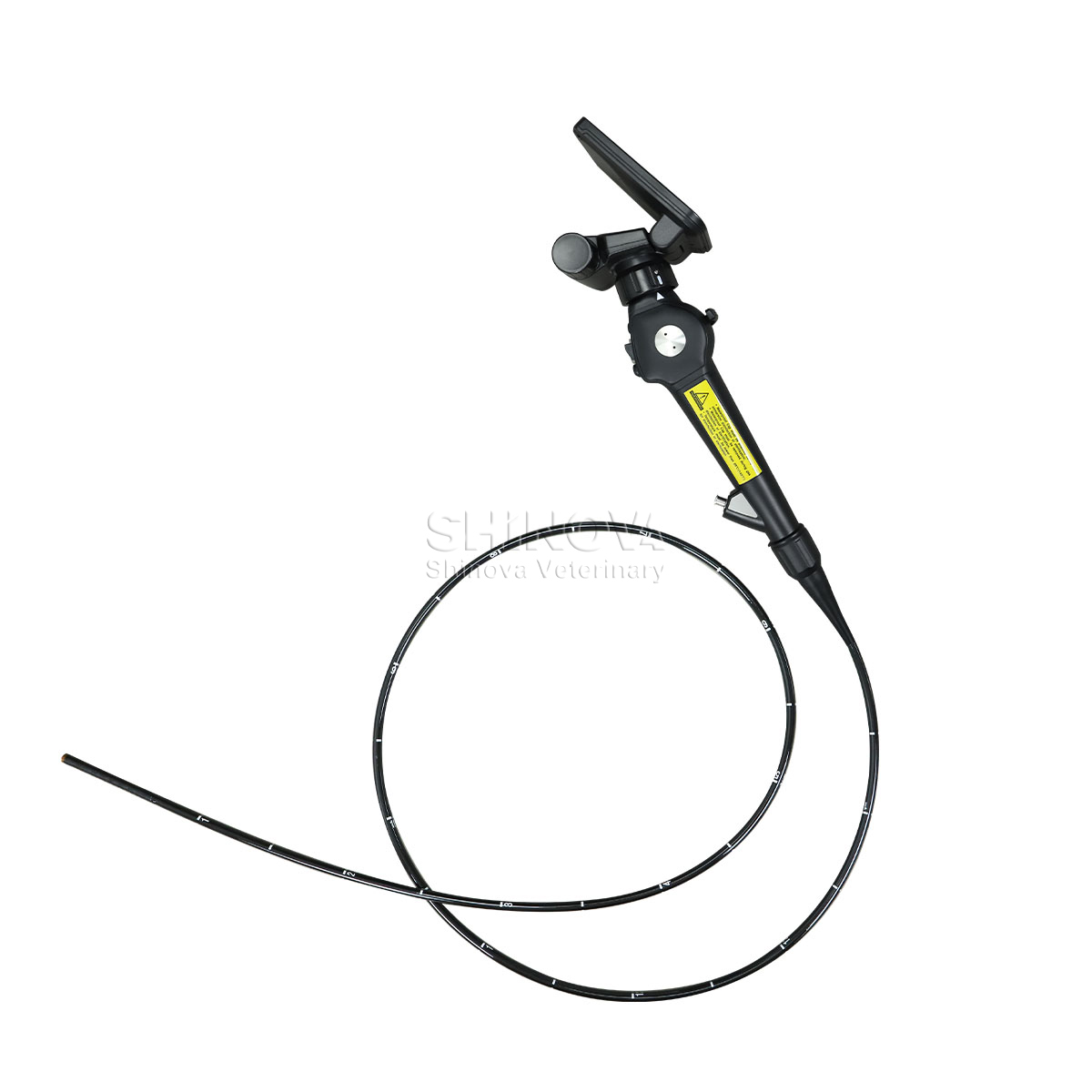

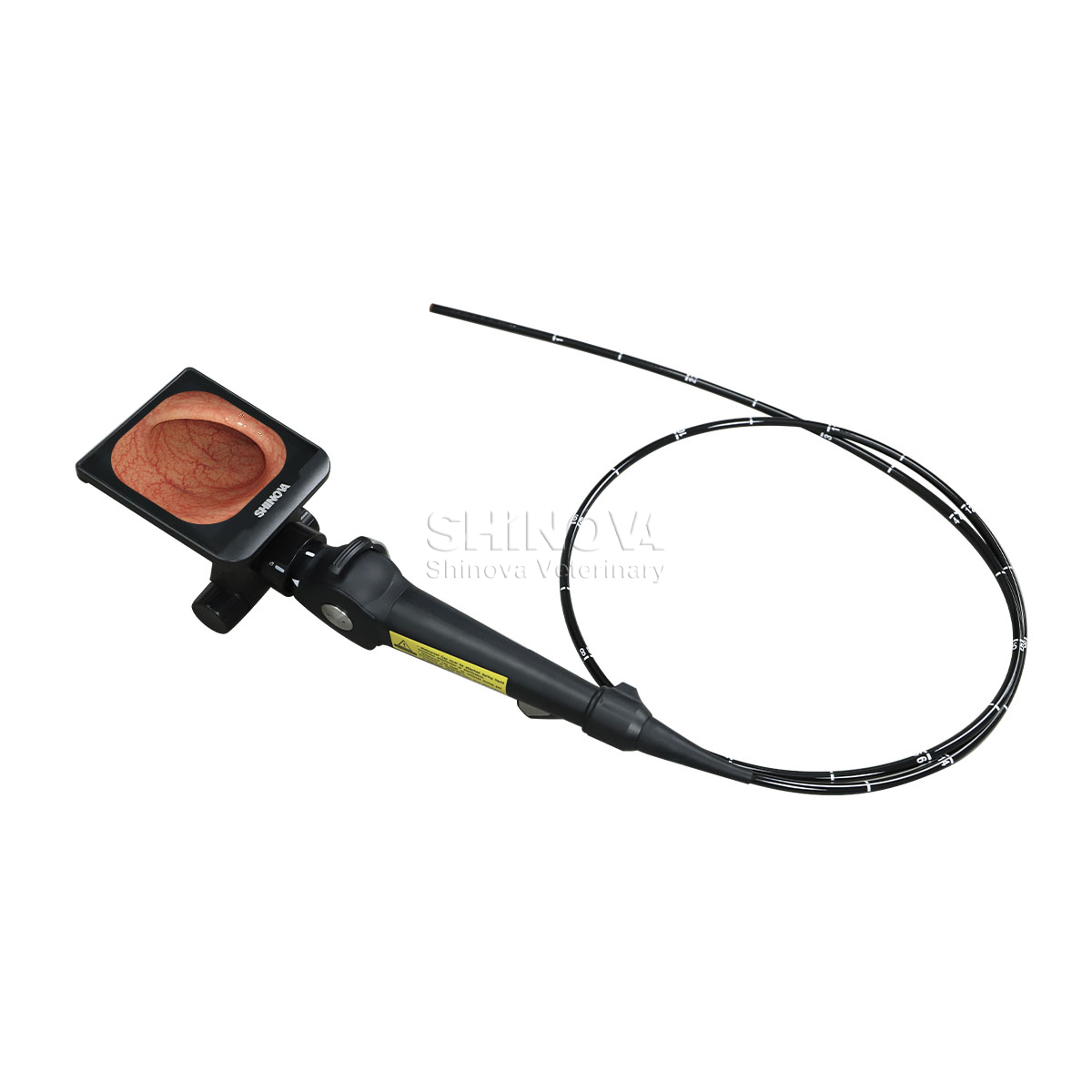

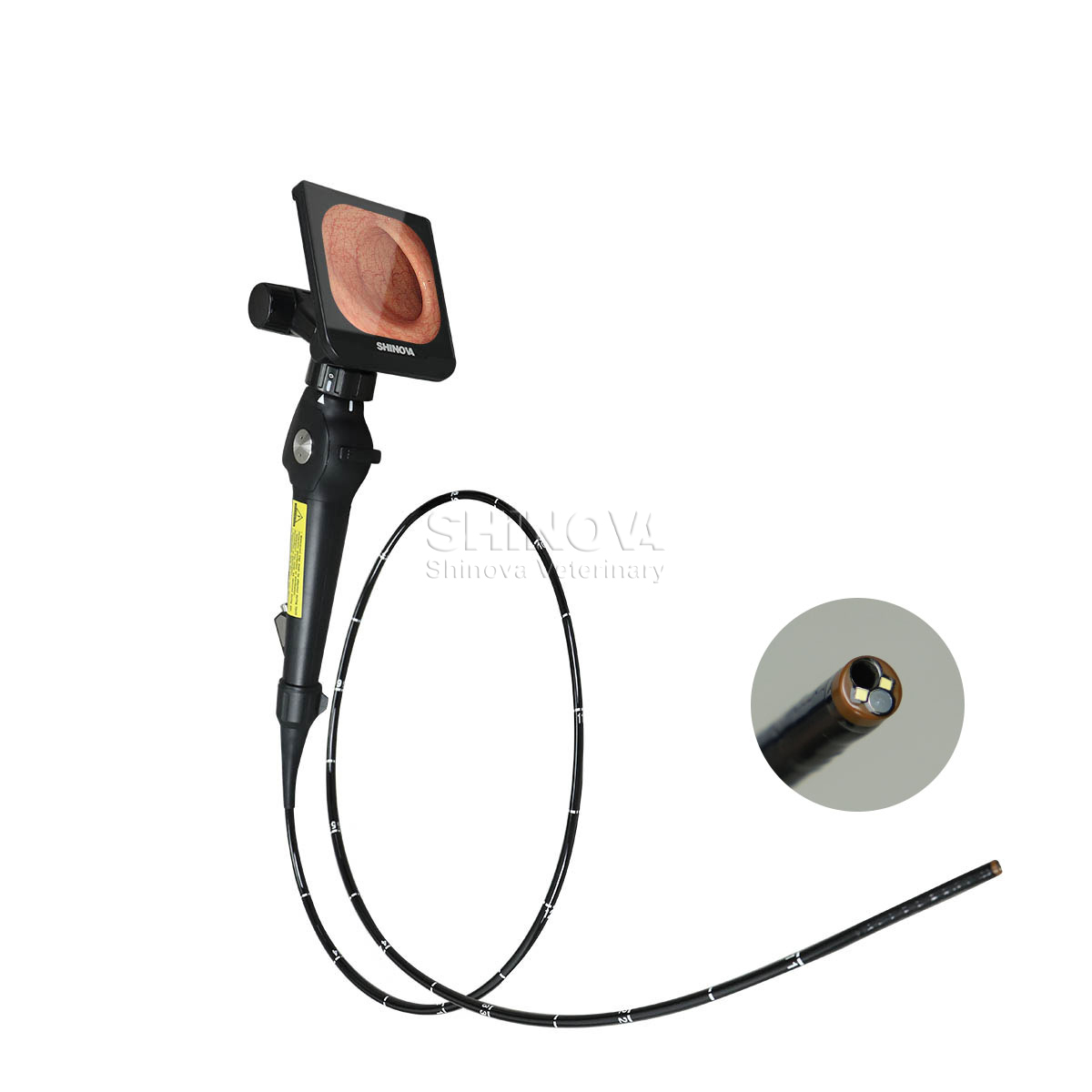

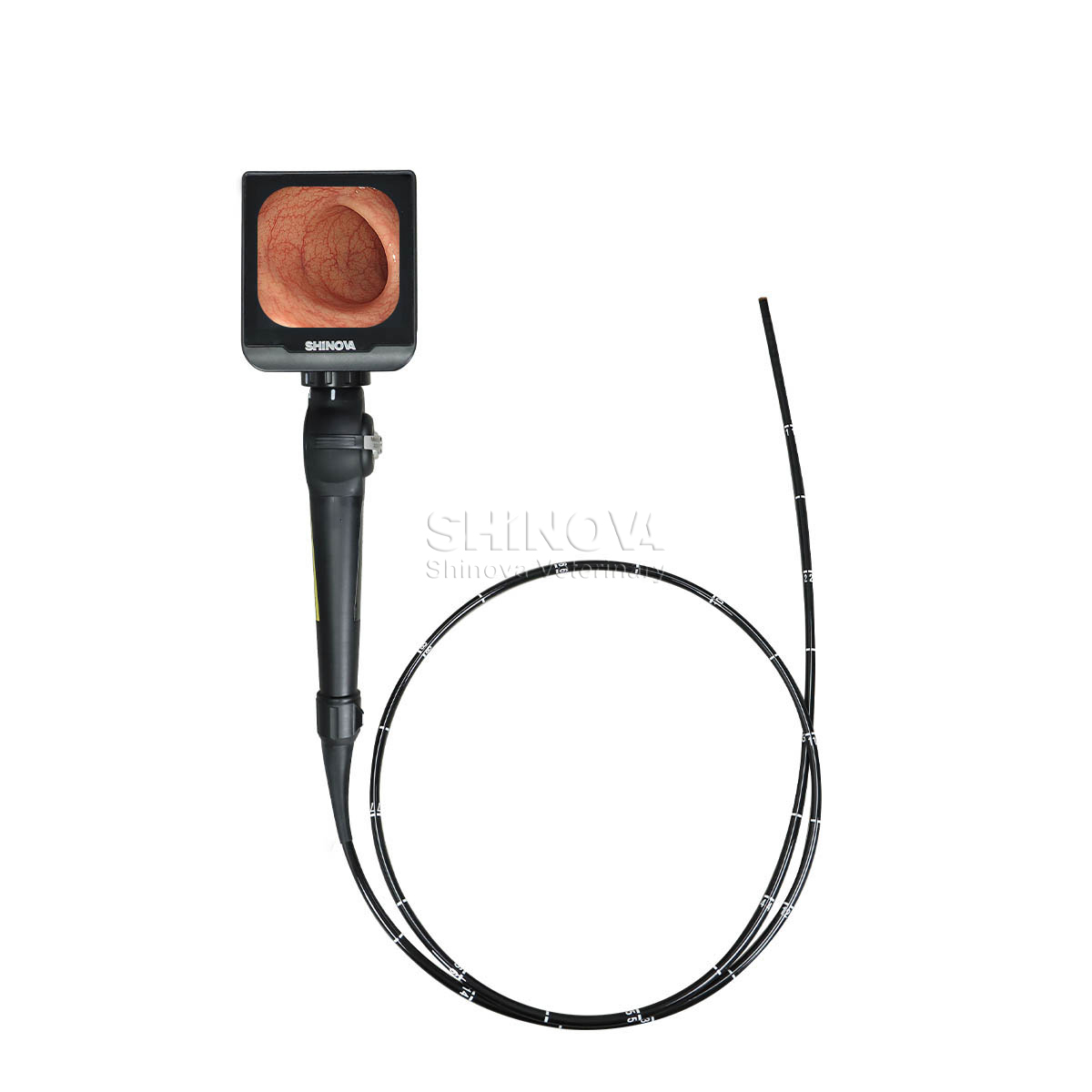

Veterinary Endoscope
Working length: 1500mm
Insertion tube: Φ5.8mm
Definition: HD 720P
Channel: 2.8mm
Up/down bending: Up 180°, Down 130°
Left/right rotation: Left 120°, Right 120°
Field of view: 120°
Direction of view: 0°
Depth of field: 3~100mm
Image Processor
Screen size: 4-inch
Operation: Capacitive touch screen
Resolution: 720*720
Input interface: 20P
Standard voltage: DC3.6V
Power supply: Rechargeable lithium battery
Placement mode: Handheld, screen can be rotated
Operating time: Continuous operation time is not less than 60min with fully charged battery
Storage space: External memory card, with the maximum identifiable capacity of 128G
Dimension: 100mm*88mm*66mm
Weight: 225g

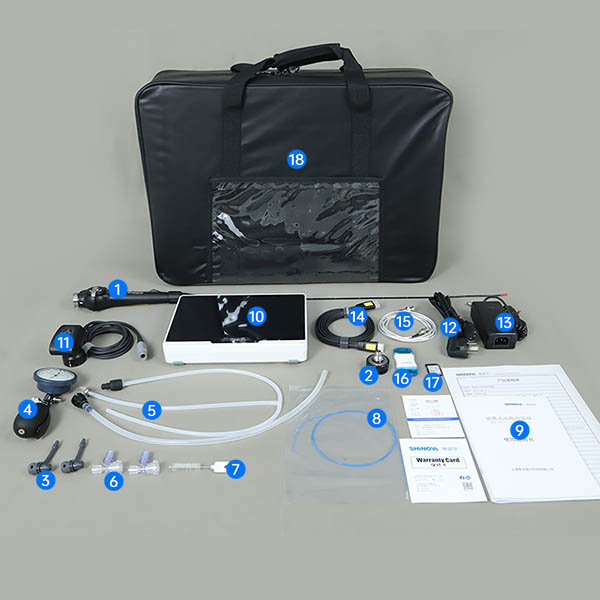

| Standard Configuration
| 1、Small animal endoscope | 10、Image processor |

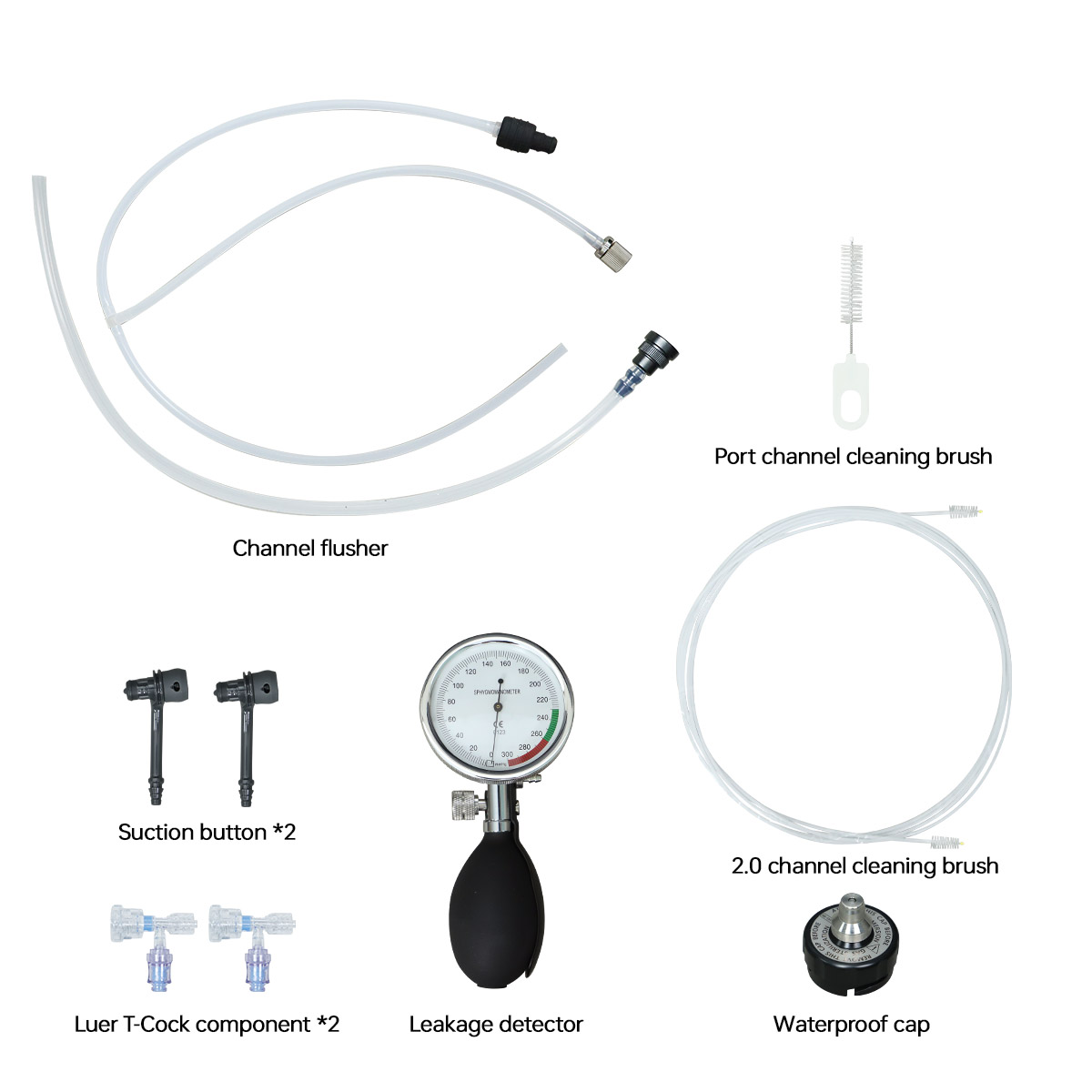

| 2、Waterproof cap | 11、Video cable |
| 3、Suction button *2 | 12、Power cable |
| 4、Leakage detector | 13、Power adapter |
| 5、Channel flusher | 15、HDMI-DVI Cable |
| 6、Luer T-Cock component *2 | 15、BNC-BNC Cable |
| 7、Port channel cleaning brush | 16、SD card reader |
| 8、Cleaning brush | 17、SD card (64G) |
| 9、User's manual *2 | 18、Carrying case |

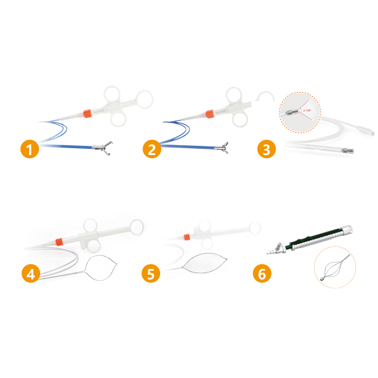

| Optional configuration
（1）Disposable grasping forceps
（2）Disposable biopsy forceps
（3）Disposable spray catheter
（4）Disposable electric snare
（5）Disposable electric snare
（6）Disposable stone basket
