| Features
Low dose radial, high-efficiency, clear imaging
Light touched button, controled with microcomputer, only press one button to select the exposure paramater, fast and accurately
Wide dynamic range, easy to shoot from low dose to high dose, greatly reducing the requirements for filming experience, image clarity and sensitivity are significantly improved.
Fiber optic plate, the built-in FOP can take more realistic, high-definition images, and even fine forks can be easily found.
Wide exposure range, the sensor with width 22.5mm exceeds the average molar length, and it shoots more teeth.
Durability, the data cable has been tested for millions of times of bending, which is more durable and provides good quality assurance.
| Specifications

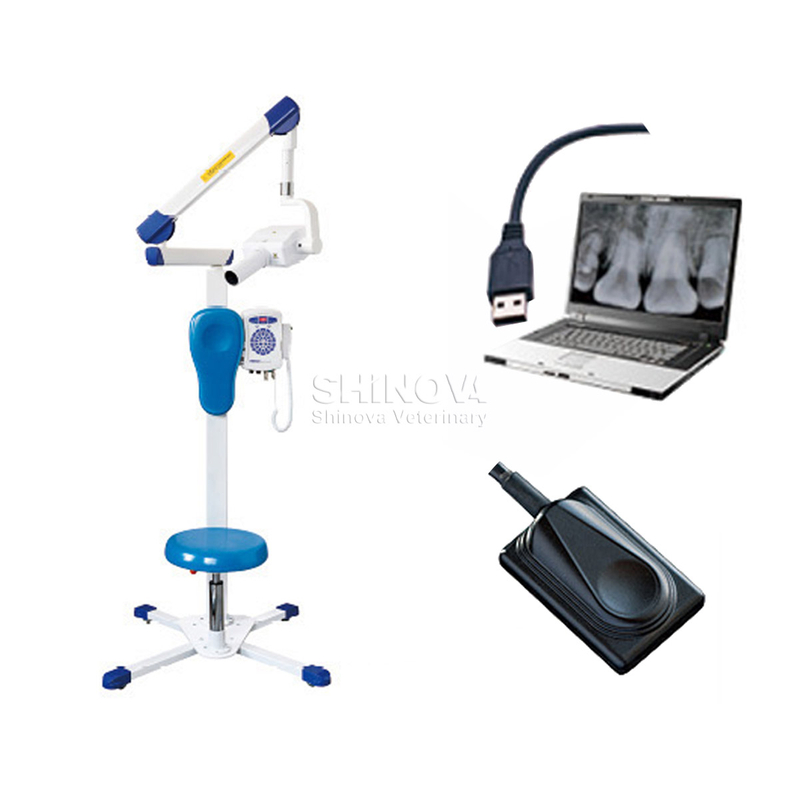

Dental X-Ray
Tube voltage: 60kV
Tube current: 8mA
Focus size: 1.5mm
Total filtration: 2.5mmAL
Exposure time: 0.2-4s
Leak radiation: out of 1m≤0.002mGy/h
Power supply: AC 220V±10%, 50Hz, 1KVA
Dental X-Ray Sensor
Chip Type: CMOS APS
Scintillator: GOS
Dimension: 39mm×28.5mm
Active Area: 30mm×22.5mm
Thickness: 6mm
Pixel Size: 18.5µm
Pixels: 1600*1200
Resolution: 14-20lp/mm
Power Consumption: 600mW
Operation System: Windows 2000/XP/718/10/11 (32bit&64bit)
| About Us
SHINOVA, a well-known animal health brand in the world.
SHINOVA, based in Shanghai, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and scientific research institutes.
For decades global operations, Shinova has dedicated itself to providing advanced veterinary techniques and medical solutions to tens of thousands of animal hospitals (including veterinary hospitals and equine hospitals) and veterinary schools (including veterinary teaching and animal experiments) in Europe, America, Australia, China, etc.
