| Features

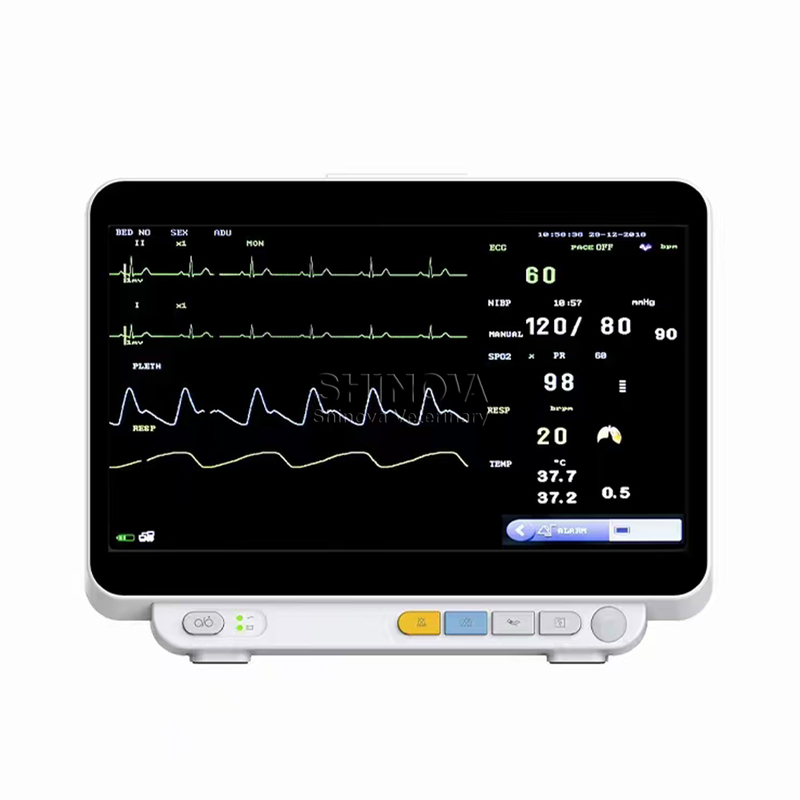

14-inch color LCD touch screen.
Suitable for monitoring various animals.
Multi-channel waveform display with ST segment analysis.
Alarms (sound and light) can be set. Records and returns electrocardiogram wave forms.
Advanced streamlined outline design, portable, compact, and lightweight.
Built-in high-capacity lithium battery (4 hours) for emergencies.
Data power-off storage function.
Anti-fibrillation and anti-high-frequency electrosurgical interference.

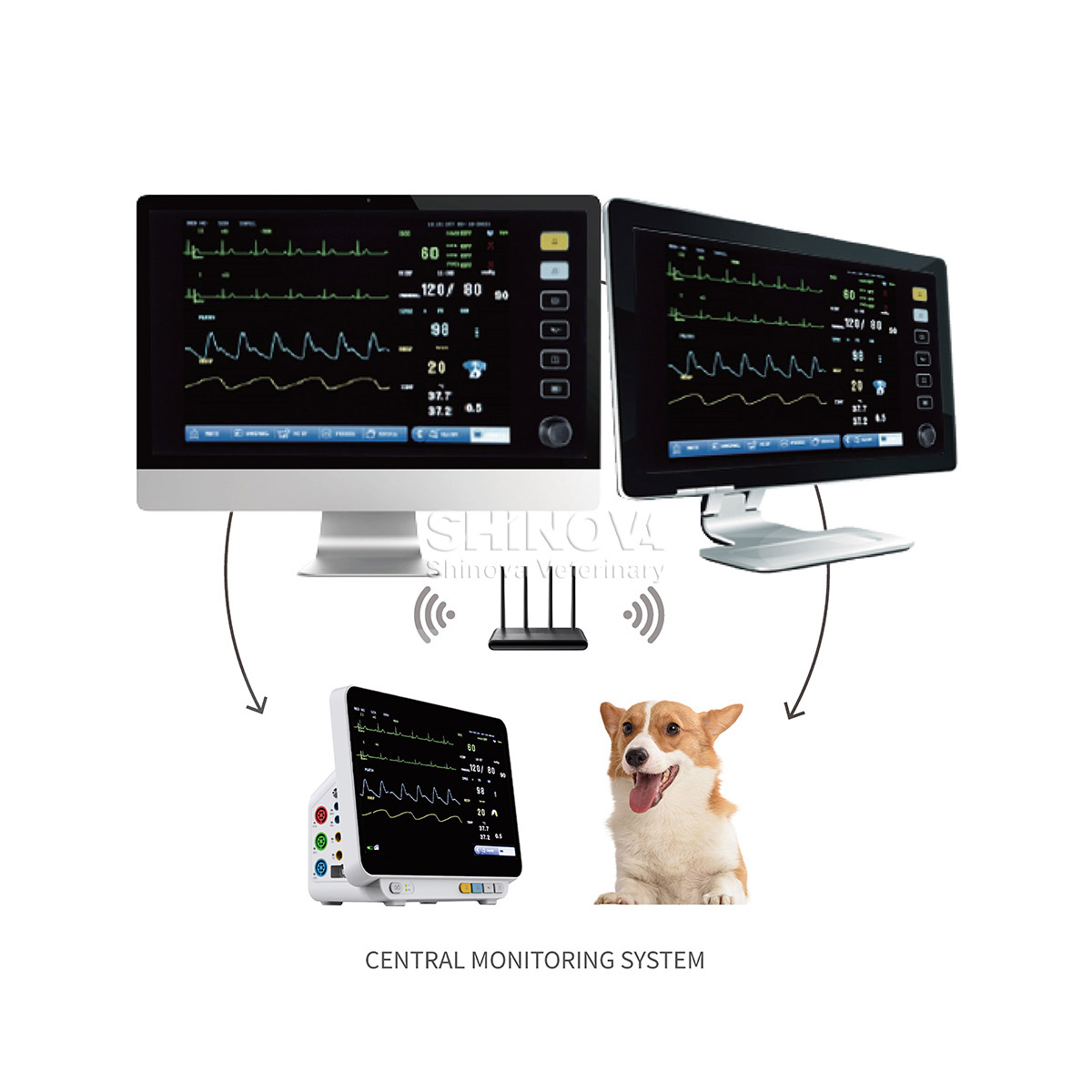

Supports wire or wireless central monitoring systems.
| Specification
ECG specification: range
adult 15 ~ 300bpm (beat/minute)
precision±1% or±1bpm, the larger prevails
resolution 1 bpm(beat/minute)
RESP specification: range
adult 0 ~ 120BrPM
resolution 1 BrPM
precision±2 BrPM
NIBP specification: 40 - 240 bpm
SpO2 specification: range 0~100%
resolution 1%
precision 70~100%:±2%
0%~69%: no definition given
TEMP specification: range 0~50°C
resolution 0.1°C
precision±0.1°C(excluding sensor error)
Voltage: 100-240 (V)AC, 50/60 (Hz)
Pmax=70VA
FUSE 2AL 250V
Working environment conditions: working temperature 0-40°C
working humidity ≤ 85%
Shipping and storage conditions: transportation and storage temperature -20-60°C
transportation and storage humidity ≤ 93%
| Standard Configuration
ECG
PR
TEMP
RESP
NIBP
SPO2
Touch screen
| Optional configuration
ETCO2
Nellcor SpO2
IBP
Built-in recorder
Monitor bracket trolley
Monitor wall bracket
| About Us
SHINOVA, a well-known animal health brand in the world.
SHINOVA, based in Shanghai, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and scientific research institutes.
For decades global operations, Shinova has dedicated itself to providing advanced veterinary techniques and medical solutions to tens of thousands of animal hospitals (including veterinary hospitals and equine hospitals) and veterinary schools (including veterinary teaching and animal experiments) in Europe, America, Australia, China, etc.
